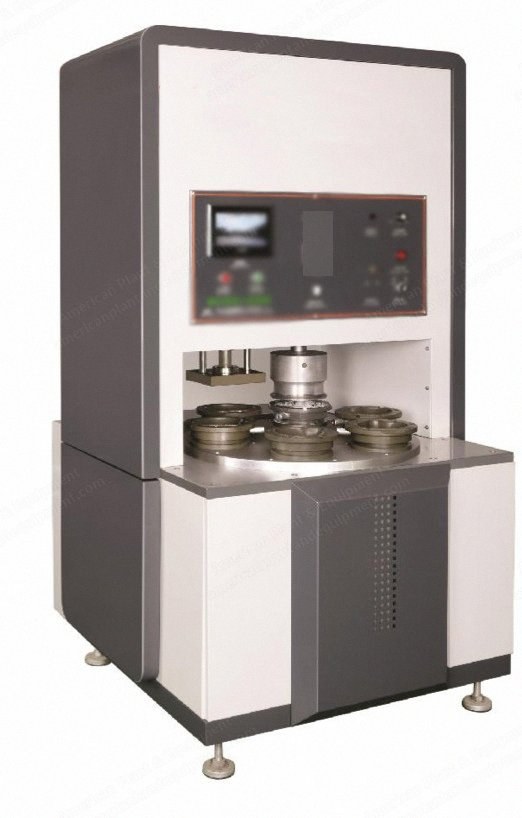

NovaStar, FM329, Rotary Cup Mask Welding and Cutting Machine, 10 to 12 pcs/min, 15KHz, 5.5 kW
Scroll to zoom
100%
Description
Overview
Capacity: 10 to 12 pieces per minute
Incorporates principle of auto ultrasonic sealing after cutting to weld and cut cup mask’s edge, multi-working position turntable, welding and cutting components working at the same time, operated by one person.
Specifications
Ultrasonic frequency: 15 kHz
Size: 800 x 1120 x 1750 mm
Voltage: 220 volts, 50/60 Hz
Air pressure: 4 to 6 kg/cm²
Power: 5.5 kW
Weight: 300 kg
Product Features
PLC control and touch screen for convenient operating
Gained national patent for the auto rotary plate level adjusting device
Gantry structure for more strong output power and better punching effect
Multi-station structure with separated position of putting and cutting for more safe operation
Titanium alloy mould for a longer service life
Included
Product presentation
