NovaStar, DN148, CNC Splint Cutting Machine, 1300x2500mm, 7.5kW (New)

NovaStar, DN148, CNC Splint Cutting Machine, 1300x2500mm, 7.5kW

Description

  1. Item 001 Cnc Splint Cutting Machine
    1. Model: DN148
    2. Suitable for sofa factory use; CNC technology to cut and drill irregular board accurately.
    3. Uses intelligent control system; files can be sent through memory stick and network, saves huge files.
    4. Drive parts use Cifu motor; maximum processing speed is 30 m/min.
    5. Uses cylinder to clamp the board, fast and accurate.
    6. Working part made by high precision square guideway and high precision screw rack.
    7. Dust-removal system on the table effectively improves machine service life.
    8. Frame and crossbeam are welded by thick steel; advanced frame designs; stable running; wears well.
    9. Range of effective processing: 1300 x 2500 mm
    10. Max. speed of processing: 20 m/min
    11. Power of cutting principal axis: 7.5 kW
    12. Power of drill principal axis: 3.5 kW
    13. Dimensions: 3800 x 2480 x 1500 mm
    14. Weight: 1500 kg
  2. Item 002 Cnc Splint Cutting Machine
    1. Model: ESF101-3
    2. Two tables: one table for loading and unloading, one table for cutting; machine is non-stop; one machine uses as two machines.
    3. Available in models ESF101-3, ESF101-3A, ESF101-3B, ESF101-3F.
    4. Range of effective processing (mm): 1300 x 5000 for all models.
    5. Max. speed of processing: 0 to 20 m/min for models ESF101-3, ESF101-3A, ESF101-3F; 0 to 30 m/min for model ESF101-3B.
    6. Power of cutting principal axis: 7.5/9 kW for models ESF101-3 and ESF101-3A; 13.2 kW for model ESF101-3B; 9 kW for model ESF101-3F.
    7. Power of drill principal axis: 3.5 kW for models ESF101-3 and ESF101-3A; not specified for models ESF101-3B and ESF101-3F.
    8. Dimension (mm): 6000 x 2250 x 1700 for models ESF101-3 and ESF101-3A; 6300 x 2500 x 1800 for model ESF101-3B; 6300 x 2200 x 1700 for model ESF101-3F.
    9. Weight: 2100 kg for models ESF101-3, ESF101-3A, ESF101-3F; 2400 kg for model ESF101-3B.
  3. Item 003 Wooden Cutting Machine
    1. Model: ESF103-1
    2. Suitable for production of more than one wooden side in the sofa at the same time; greatly improves utilization ratio and processing efficiency of sofa wood.
    3. No special requirements for wood raw materials; truncation error controlled within ± 0.5 mm.
    4. Dimension: 6855 x 1620 x 1615 mm
    5. Weight: 2000 kg
    6. Power: 10.4 kW
    7. Saw blade size: Φ500 x 4.00 mm
    8. Max. machining length: 4000 mm
    9. Max. cutting size: 200 x 130 mm
    10. Max. feed speed: 60 m/min

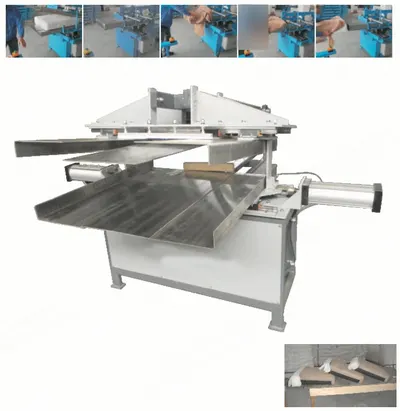

  4. Item 004 Triangular Wood Machine
    1. Model: ESF102-2
    2. Suitable for processing wood and remaining wood into triangular wood; greatly improves efficiency of processing triangular wood and safety factor of processing process.
    3. Dimension: 2950 mm x 900 mm x 1350 mm
    4. Power: 8.8 kW
    5. Capacity: 50 pcs/min
    6. Suitable wood size: L 150 to 2000 mm, W 30 to 80 mm, H 25 to 60 mm
    7. Weight: 1500 kg
    8. Power: 480 V / 60 Hz
    9. Air pressure: > 0.5 MPa

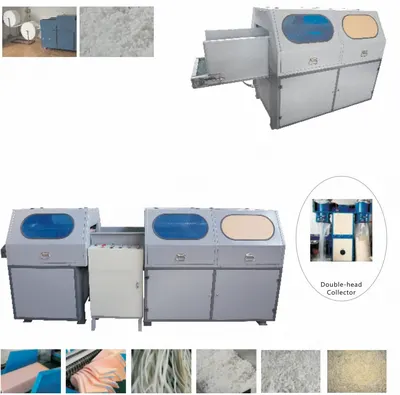

  5. Item 005 Fiber Opening Machine (Small) + Fiber Filling Machine
    1. Filling machine model: ESF005-2B
    2. Fiber opening machine model: ESF00A-1C
    3. Capacity: 80 kg/h
    4. Suitable for filling pillow, cushion, etc.
  6. Item 006 Fiber Opening Machine (Middle) + Fiber Filling Machine + Weighting
    1. Filling machine model: ESF005-2B
    2. Fiber opening machine model: ESF005A-1A
    3. Electronic scale model: ESF005-2T
    4. Capacity: 150 kg/h
    5. Suitable for filling pillow, cushion, also cushion in sofa factory.
  7. Item 007 Unity Machine for Feeding and Opening Fiber + Filling Machine + Electronic Scale
    1. Unity machine for feeding and opening fiber model: ESF005Y-1B
    2. Filling machine model: ESF005-2D
    3. Electronic scale model: ESF005-2T
  8. Item 008 Unity Machine for Feeding and Opening Fiber + Filling Machine
    1. Unity machine for feeding and opening fiber model: ESF005Y-1A
    2. Filling machine model: ESF005-2B
    3. Feeding and opening fiber combined together; saves labor, reduces costs; when used with electronic scales, effect is better.
    4. Available in models ESF005Y-1A and ESF005Y-1B.
    5. Power: 4.75 + 1.1 + 0.55 kW for model ESF005Y-1A; 8.25 + 1.1 + 1.1 kW for model ESF005Y-1B.
    6. Capacity: 120 to 150 kg/h for model ESF005Y-1A; 250 to 300 kg/h for model ESF005Y-1B.
    7. Dimension: 3000 x 900 x 1600 mm for model ESF005Y-1A; 3300 x 1100 x 1600 mm for model ESF005Y-1B.
    8. Weight: 830 kg for model ESF005Y-1A; 1100 kg for model ESF005Y-1B.

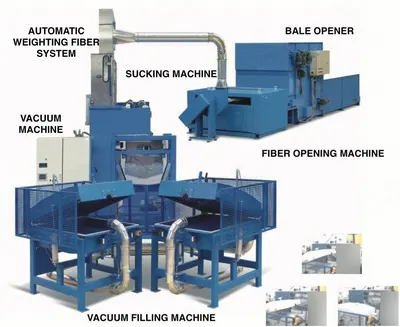

  9. Item 009 Automatic Delivering + Fiber Opening + Mixing Container + Filling (With Scale); 2500 to 3000 kg/8h
    1. Electronic scale model: ESF005-2T
    2. Filling machine model: ESF005-2B/2D
    3. Mixing container model: ESF005H-1800X/2400X
    4. Sucking machine model: ESF005-4B/4C
    5. Fiber opening machine model: ESF005F-1B / ESF005A-1200
    6. Bale opener model: ESF005K-1B
    7. Briefing: lets the whole bale fiber symmetrical and continuous feed into the opening machine; purpose is to reduce operator, increase efficiency and prolong machine life.
  10. Item 010 Fiber Opening + Mixing Container + Filling (With Scale); 1200 to 1500 kg/8h
    1. Filling machine model: ESF005-2B
    2. Mixing container model: ESF005H-1200X
    3. Sucking machine model: ESF005-4A

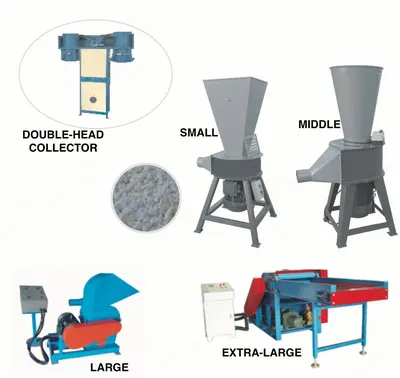

    4. Foam shredder model: ESF007B
    5. Fiber opening machine model: ESF005A-1A

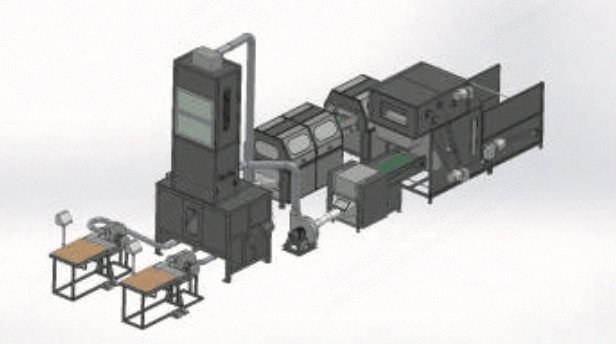

  11. Item 011 Fiber (Hollow Conjugate Silicone Fiber), Feather-Auto-Feeder, Opening, Mixing, Filling
    1. Includes filling machine, mixing container, sucking machine, fiber opening machine, bale opener, feather auto feeder.
    2. Incorporates frequency control which separately controls the delivering material speed of fiber (PP cotton) and feather auto feeder; can get the filler ration of two kinds of material.
  12. Item 012 Quantify Feather Filling Machine
    1. Suitable for: cotton-padded clothes, handiwork.
    2. Filling material: down feather, down cotton.
    3. Precision: 0.5 g
