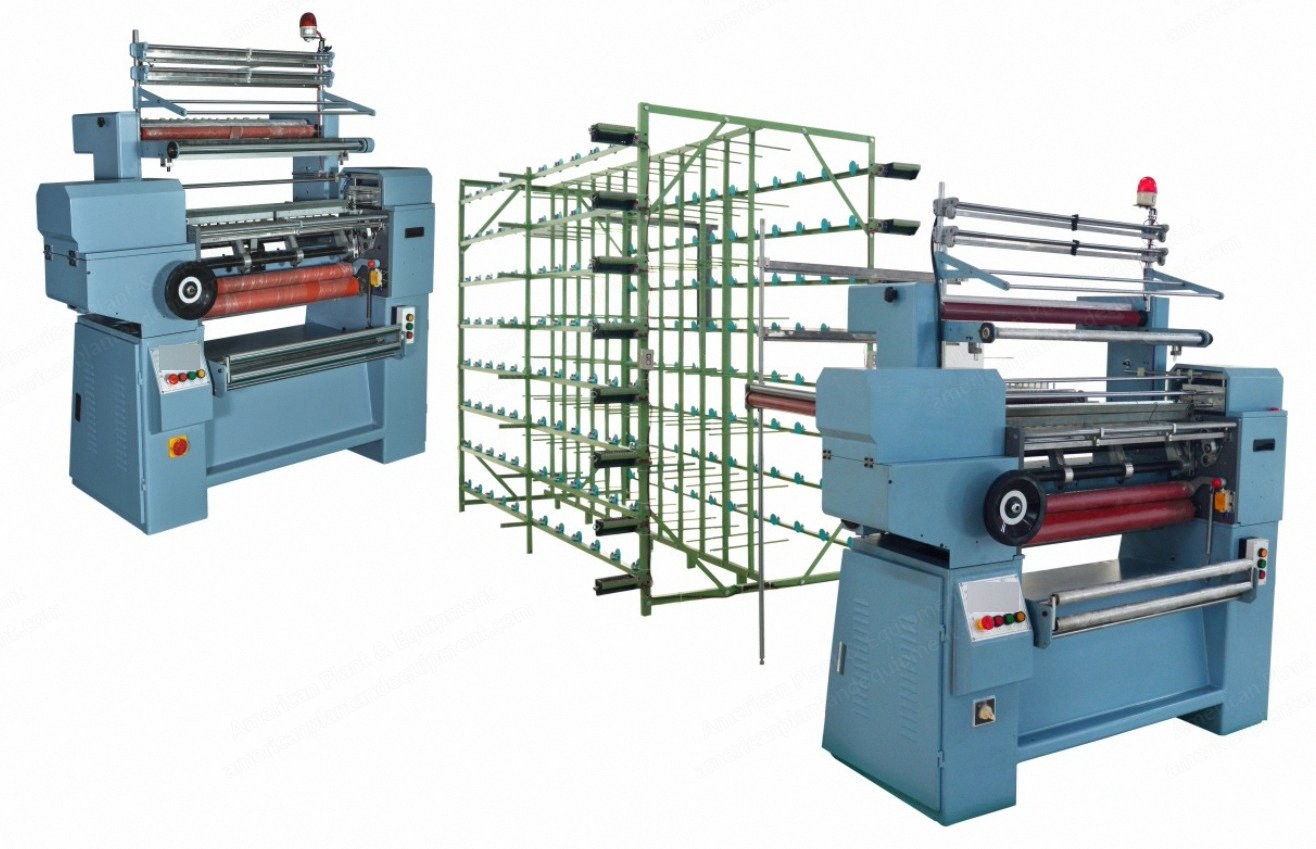

NovaStar, NF175, High Speed Crochet Machine, 3 Weft Bars, 1400 RPM, 30 Inch Operation Width (New)

NovaStar, NF175, High Speed Crochet Machine, 3 Weft Bars, 1400 RPM, 30 Inch Operation Width

Description

  1. Purpose
    1. Suitable for knitting elastic webbing, non-elastic flat belt, bandage, mask ear loop, bra strap, knapsack belt, zipper tape, clothing tape, underwear belt, etc.
    2. Fabric width can be knitted from 0.2 cm to 9 cm.
  2. Machine Features
    1. Crochet knitting machine has unique structure for easy operation and easy maintenance.
    2. Runs with high speed and low noise.
    3. All bearings are imported and sealed in a box which is inside with lubrication oil.
    4. Service life has been significantly extended.
    5. Has pulley device which makes it easy to pull belt.
    6. Has elastic needle plate which is easy to adjust.
  3. Technical Specifications
    1. Model APE-9-B3: 3 weft bars, speed 1400 rpm, noise under 60 dB, voltage 220 V / 380 V, inch 12/14/15/18/20, size 1650 x 700 x 1750 mm, operation width 30.
    2. Model APE-10-B3: 3 weft bars, speed 1400 rpm, noise under 60 dB, voltage 220 V / 380 V, inch 12/14/15/18/20, size 1750 x 700 x 1750 mm, operation width 34.
    3. Model APE-4-B8: 8 weft bars, speed 1400 rpm, noise under 60 dB, voltage 220 V / 380 V, inch 12/14/15/18/20, size 1750 x 700 x 1750 mm, operation width 30.
  4. Specifications
    1. Alternative models: APE-10-B3 (GM-1000 B3), APE-4-B8 (GM-400-B8)
