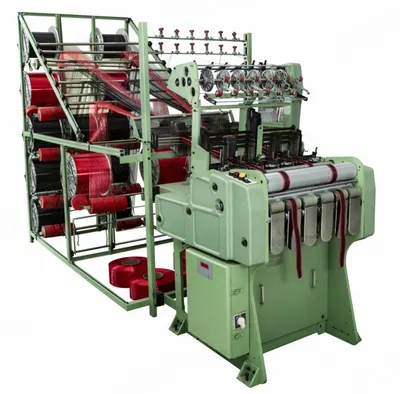

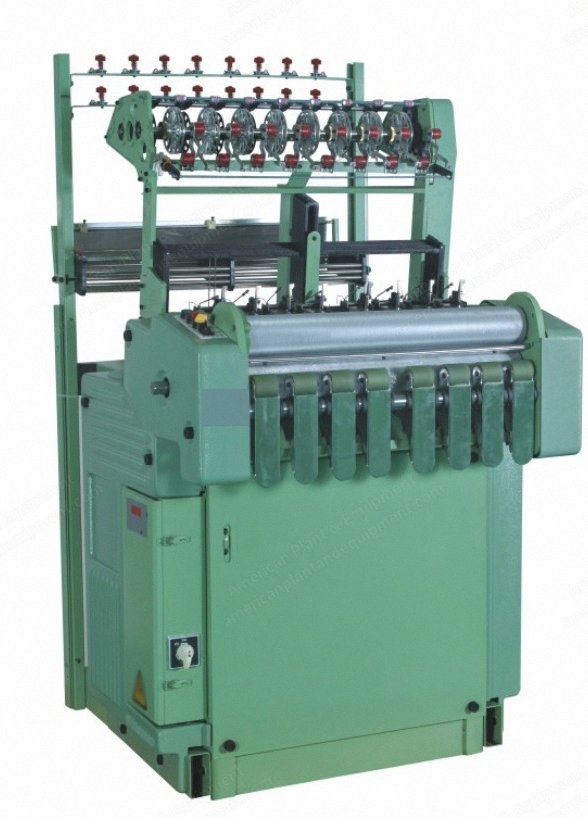

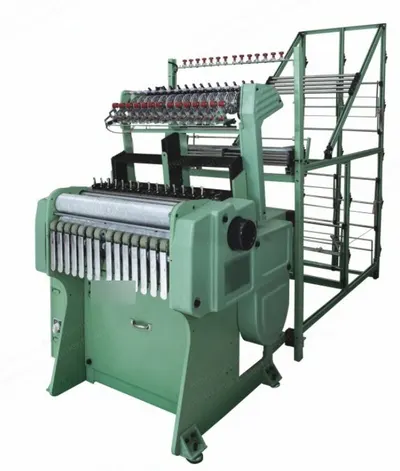

NovaStar, APE Series, High Speed Narrow Fabric Needle Loom, 2 to 12 Ribbons, Width up to 150mm (New)

NovaStar, APE Series, High Speed Narrow Fabric Needle Loom, 2 to 12 Ribbons, Width up to 150mm

Description

  1. Overview
    1. High speed needle loom for narrow fabric.
    2. Manufactures widened and thickened narrow fabric such as PP strap, cotton strap, safety belt and flexible belt.
    3. Pattern creation controlled with 1 to 16 pieces of shedding frames.
    4. Ribbon quantity freely selectable within 2 to 12.
    5. Width selectable from least to 150 mm.
    6. Heavy body structure, heavy duty, less vibrative.
    7. Vertical jacquard rope angle and ½ weaving angle.
    8. Smoother edge of fabrics, higher speed and more stable.
    9. Better edge locking quality.
  2. Machine Features
    1. Random chain type can be used; customers may make arrangement according to different patterns.
    2. Card plates connected in nylon agraffe mode for easier pattern change, high accuracy rate and simple dismantlement.
    3. Automatic recycling lubricating device for easy maintenance, low noise and longer machine parts life.
    4. Yarn breakage and automatic stopping with alarm lights and quick braking of motor efficiency reduce waste of yarns and production of waste belts.
    5. Mechanical and electrical parts work precisely; double power control applied first in the industry.
    6. Length counter for safer and coVenient operation.
    7. Machine structure is precise and design is reasonable.
    8. Parts employ high quality materials and precise processing; low depreciation rate and quick supply.
  3. Special Devices
    1. Automatic rubber feeding.
    2. Weft feeding with belts.
    3. Front collecting device.
    4. Back collecting device.
    5. Double take off roller weighting.
    6. Double hook.
    7. Double weft.
    8. Double binder-thread device.
  4. Specifications
    1. Model V NF178: 4 belts, reed width 44 mm, shedding frames 12 to 16, chain link repeat 8 to 48 pins, motor power 1.5 kW (brake), speed 950 to 1600 picks/min.
    2. Model V PE4/65: 4 belts, reed width 65 mm, shedding frames 12 to 16, chain link repeat 8 to 48 pins, motor power 1.5 kW (brake), speed 950 to 1600 picks/min.
    3. Model V PE4/80: 4 belts, reed width 80 mm, shedding frames 12 to 16, chain link repeat 8 to 48 pins, motor power 1.5 kW (brake), speed 950 to 1600 picks/min.
    4. Model V PE6/55: 6 belts, reed width 55 mm, shedding frames 12 to 16, chain link repeat 8 to 48 pins, motor power 1.5 kW (brake), speed 950 to 1600 picks/min.
    5. Model V PE8/35: 8 belts, reed width 35 mm, shedding frames 12 to 16, chain link repeat 8 to 48 pins, motor power 1.5 kW (brake), speed 950 to 1600 picks/min.
    6. Model V PE8/45: 8 belts, reed width 45 mm, shedding frames 12 to 16, chain link repeat 8 to 48 pins, motor power 1.5 kW (brake), speed 950 to 1600 picks/min.
    7. Model V PE8/55: 8 belts, reed width 55 mm, shedding frames 12 to 16, chain link repeat 8 to 48 pins, motor power 1.5 kW (brake), speed 950 to 1600 picks/min.
    8. Model V PE10/25: 10 belts, reed width 25 mm, shedding frames 12 to 16, chain link repeat 8 to 48 pins, motor power 1.5 kW (brake), speed 950 to 1600 picks/min.
    9. Model V PE10/30: 10 belts, reed width 30 mm, shedding frames 12 to 16, chain link repeat 8 to 48 pins, motor power 1.5 kW (brake), speed 950 to 1600 picks/min.
    10. Model V PE10/45: 10 belts, reed width 45 mm, shedding frames 12 to 16, chain link repeat 8 to 48 pins, motor power 1.5 kW (brake), speed 950 to 1600 picks/min.
    11. Model V PE12/25: 12 belts, reed width 25 mm, shedding frames 12 to 16, chain link repeat 8 to 48 pins, motor power 1.5 kW (brake), speed 950 to 1600 picks/min.
    12. Model V PE12/30: 12 belts, reed width 30 mm, shedding frames 12 to 16, chain link repeat 8 to 48 pins, motor power 1.5 kW (brake), speed 950 to 1600 picks/min.
    13. Model V PE14/20: 14 belts, reed width 20 mm, shedding frames 12 to 16, chain link repeat 8 to 48 pins, motor power 1.5 kW (brake), speed 950 to 1600 picks/min.
    14. Model V PE16/20: 16 belts, reed width 20 mm, shedding frames 12 to 16, chain link repeat 8 to 48 pins, motor power 1.5 kW (brake), speed 950 to 1600 picks/min.
    15. Model V PE16/20D: 32 belts, reed width 20 mm, shedding frames 12 to 16, chain link repeat 8 to 48 pins, motor power 1.5 kW (brake), speed 950 to 1600 picks/min.
    16. Model PE N16/20: 32 belts, reed width 20 mm, shedding frames 12 to 16, chain link repeat 8 to 48 pins, motor power 1.5 kW (brake), speed 1000 to 15000 picks/min.
    17. Model PE N/1420: 28 belts, reed width 20 mm, shedding frames 12 to 16, chain link repeat 8 to 48 pins, motor power 1.5 kW (brake), speed 1000 to 15000 picks/min.
    18. Model PE N12/20: 24 belts, reed width 20 mm, shedding frames 12 to 16, chain link repeat 8 to 48 pins, motor power 1.5 kW (brake), speed 1000 to 15000 picks/min.
    19. Model PE N10/30: 20 belts, reed width 30 mm, shedding frames 12 to 16, chain link repeat 8 to 48 pins, motor power 1.5 kW (brake), speed 950 to 1300 picks/min.
