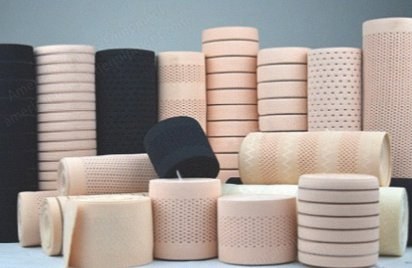

Suitable for producing a variety of elastic and non-elastic belts, bra lace belts, medical bandages, clothing belts, zipper belts, sports belt buckles, and more.
Efficiently produces a variety of elastic and inelastic bands.
Stable structure enables high-speed operation, simple operation, and convenient maintenance.
Technical Specifications
Fancy crochet machine
Working width: 600 mm
Gauge: 14/15/20/24
Bars: 8
Standard Equipment
Inverter: 1
Operating motor (1/5 kW): 1
Two layers weft transmitter group: 1
Output device: 1
Front beam holder (without beams): 1
Heavy roller group: 1
Three-color indicator light: 1
Broken yarn self-stop device: 1
Standard Accessories
Warp stop needle: 500
Flower chain piece (optional model): 144
Knitting needle: 500
Sprocket: 1
Trimming needle (straight, curved): 1
Special wrench: 1
Tools: 3
Optional Devices
Warp transmitter group: 1
Third layer weft transmitter group: 1
Creel (308 bobbins, 25 cm): 1
Knitting machine non-divergence device: 1
Widening device: 1
Dimensions and Weights
Net weight of machine: 600 kg
Drop frame net weight: 50 kg
Creel net weight (308 digits): 220 kg
Specifications
Weight: 870
