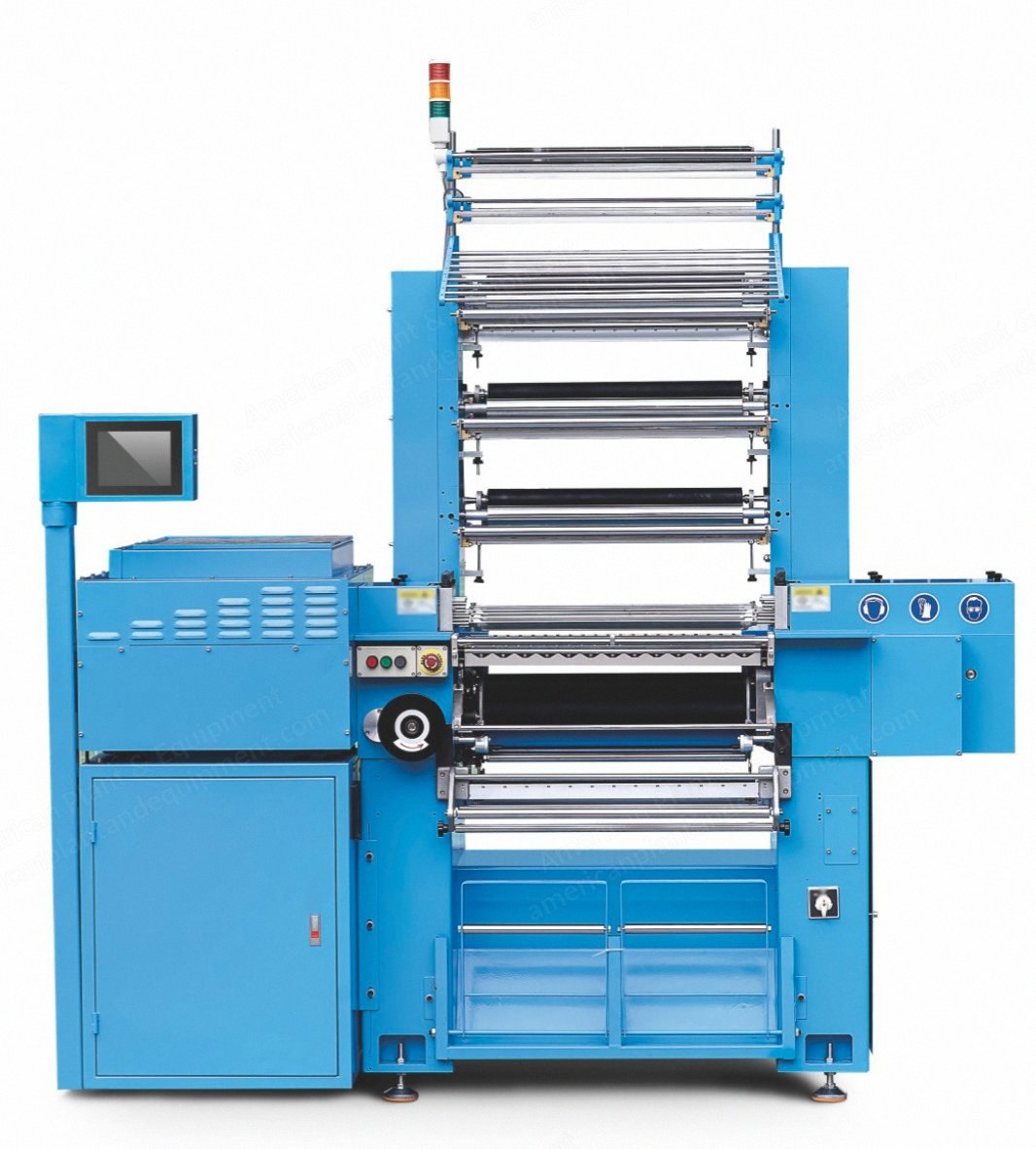

NovaStar, NF183, 600mm Working Width, 8 Weft Bars, 15/20/24 Gauge (New)

NovaStar, NF183, 600mm Working Width, 8 Weft Bars, 15/20/24 Gauge

Description

  1. Overview
    1. Acceptable for the production of a variety of elastic and non-elastic belts, bra lace belts, medical bandages, clothing belts, zipper belts, sports belt buckles, and so on.
    2. Can efficiently produce various elastic and inelastic webbings.
    3. Equipment has a stable structure and can work efficiently.
    4. Simple to operate and easy to maintain.
  2. Specifications
    1. Computer crochet machine.
    2. Working width: 600 mm.
    3. Gauge: 15/20/24.
    4. Electronic traverse weft bar number: 8.
    5. 8 weft bars are directly controlled by 8 motors and drives.
    6. Three weft bars controlled by the left auxiliary box rocker create edges and control the elastic thread.
    7. Data of the whole machine is controlled by the latest generation of the integrated signal controller developed by experts.
    8. Excellent performance, good dynamic performance, and high positioning accuracy.
    9. Production data is directly monitored through the touch screen.
    10. Webbing pattern is templated and edited by exclusive research and development and agent weaving software.
    11. Allows realization of pattern repetition of the ultra-long circular flower chain; number of rows of each pattern is unlimited.
    12. Pattern data is transferred from the PC to the machine through the compact flash card.
    13. Weight: 1170
  3. Standard Equipment
    1. Inverter: 1.
    2. Operating motor (1.5 kW, 380 V): 1.
    3. Third layers weft transmitter group: 1.
    4. Output device: 1.
    5. Front beam holder (without beams): 1.
    6. Three-color indicator light: 1.
    7. Broken yarn self-stop device: 1.
  4. Standard Accessories
    1. Warp stop needle: 500.
    2. Knitting needle: 500.
    3. Sprocket: 1.
    4. Trimming needle (straight, curved): 1.
    5. Special wrench: 1.
    6. Tool: 1.
  5. Optional Devices
    1. Warp transmitter group: 1.
    2. Creel (308 bobbins, 25 cm): 1.
    3. Lock edge device: 1.
    4. Widening device: 1.
  6. Dimensions and Weights
    1. Net weight of machine: 900 kg.
    2. Drop frame net weight: 50 kg.
    3. Creel net weight (308 digits): 220 kg.
