Suitable for producing a variety of elastic and non-elastic belts, bra lace belts, medical bandages, clothing belts, zipper belts, sports belt buckles, and more.
Can efficiently produce various elastic and inelastic webbings.
Stable structure for efficient operation; simple to operate and easy to maintain.
Eight weft bars directly controlled by eight motors and drives.
Produces exquisite webbing patterns and lace webbing for bras, petticoats, underwear, and waistbands.
Motor directly drives the weft bar to move, eliminating lateral vibration caused by other accessories.
Three weft bars controlled by the left auxiliary box rocker create edges and control the elastic thread.
Machine data controlled by the latest generation integrated signal controller with excellent performance, good dynamic performance, and high positioning accuracy.
Production data directly monitored through the touch screen.
Webbing pattern templated and edited by exclusive research and development and agent weaving software.
Allows pattern repetition of ultra-long circular flower chains with unlimited rows per pattern; pattern data transferred from PC to machine via compact flash card.
Technical Specifications

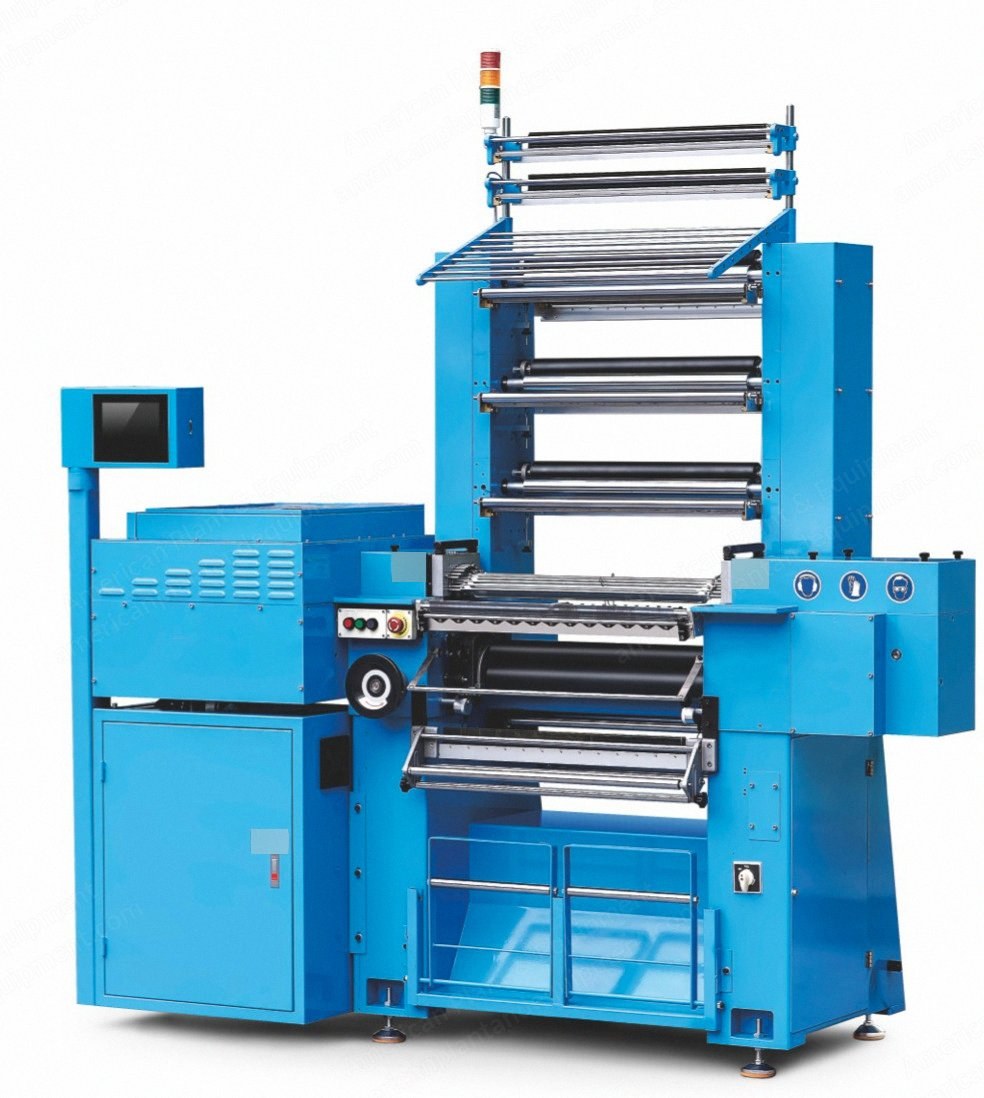

Computer crochet machine.
Working width: 600 mm.
Gauge: 15/20/24.
Electronic traverse weft bar number: 11.
Standard Equipment
Inverter: 1.
Operating motor (1.5 kW, 380 V): 1.
Third layers weft transmitter group: 1.
Output device: 1.
Front beam holder (without beams): 1.
Three-color indicator light: 1.
Broken yarn self-stop device: 1.
Standard Accessories
Warp stop needle: 500.
Knitting needle: 500.
Trimming needle (straight, curved): 1.
Special wrench: 1.
Tool: 1.
Optional Devices
Warp transmitter group: 1.
Creel (308 bobbins, 25 cm): 1.
Lock edge device: 1.
Widening device: 1.
Dimensions and Weights
Net weight of machine: 900 kg.
Drop frame net weight: 50 kg.
Creel net weight (308 digits): 220 kg.
Specifications
Weight: 1170
