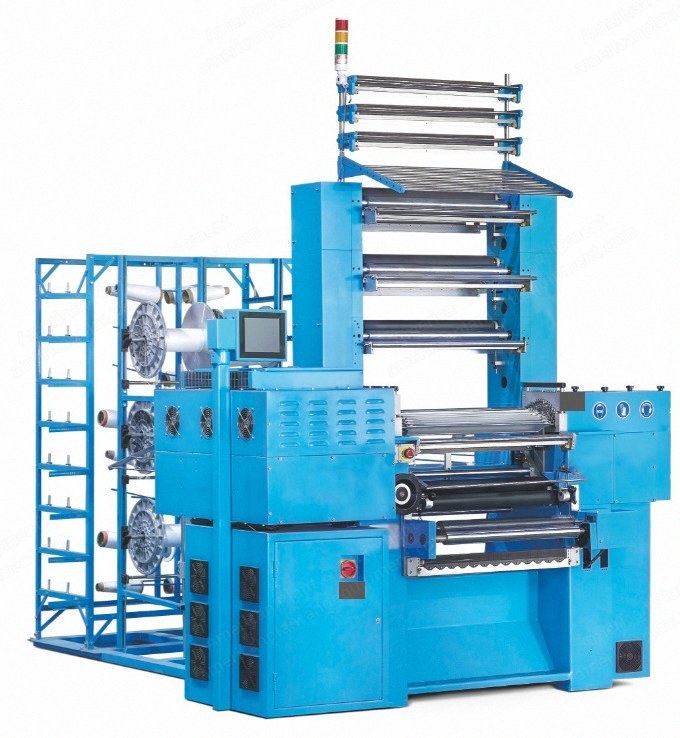

NovaStar, NF185, 600mm Working Width, 16 Weft Bars, 15/20/24 Gauge (New)

NovaStar, NF185, 600mm Working Width, 16 Weft Bars, 15/20/24 Gauge

Description

  1. Overview
    1. Suitable for producing a variety of elastic and non-elastic belts, bra lace belts, medical bandages, clothing belts, zipper belts, sports belt buckles, and similar items.
    2. Can efficiently produce all kinds of elastic and inelastic webbing.
    3. Equipment structure is stable for efficient operation; operation is simple and maintenance is convenient.
    4. 16 weft bars are directly controlled by 16 motors and drives, enabling production of exquisite ribbon patterns and lace webbing.
    5. Can be used to make bras, petticoats, underwear, and waistbands.
    6. The motor directly drives the weft bar to move, eliminating lateral vibration from other accessories for better webbing production.
    7. Three weft bars controlled by the left auxiliary box rocker create edges and control elastic threads.
    8. Machine data is controlled by the latest generation integrated signal controller, offering excellent performance, good dynamic performance, and high positioning accuracy.
    9. Production data is directly monitored through the touch screen.
    10. Webbing pattern is templated and edited using exclusive research and development and agent weaving software.
    11. Allows pattern repetition of ultra-long circular flower chains with unlimited rows per pattern; pattern data is transferred from a PC to the machine via compact flash card.
  2. Technical Specifications
    1. Working width: 600 mm
    2. Gauge: 15/20/24
    3. Electronic traverse weft bar number: 16
  3. Standard Equipment
    1. Inverter: 1
    2. Operating motor (1.5 kW, 380 V): 1
    3. Third layers weft transmitter group: 1
    4. Output device: 1
    5. Front beam holder (without beams): 1
    6. Three-color indicator light: 1
    7. Broken yarn self-stop device: 1
  4. Standard Accessories
    1. Warp stop needle: 500
    2. Knitting needle: 500
    3. Trimming needle (straight, curved): 1
    4. Special wrench: 1
    5. Tool: 1
  5. Optional Devices
    1. Warp transmitter group: 1
    2. Creel (308 bobbins, 25 cm): 1
    3. Lock edge device: 1
    4. Widening device: 1
  6. Dimensions and Weights
    1. Net weight of machine: 950 kg
    2. Drop frame net weight: 50 kg
    3. Creel net weight (308 digits): 220 kg
  7. Specifications
    1. Weight: 1000
