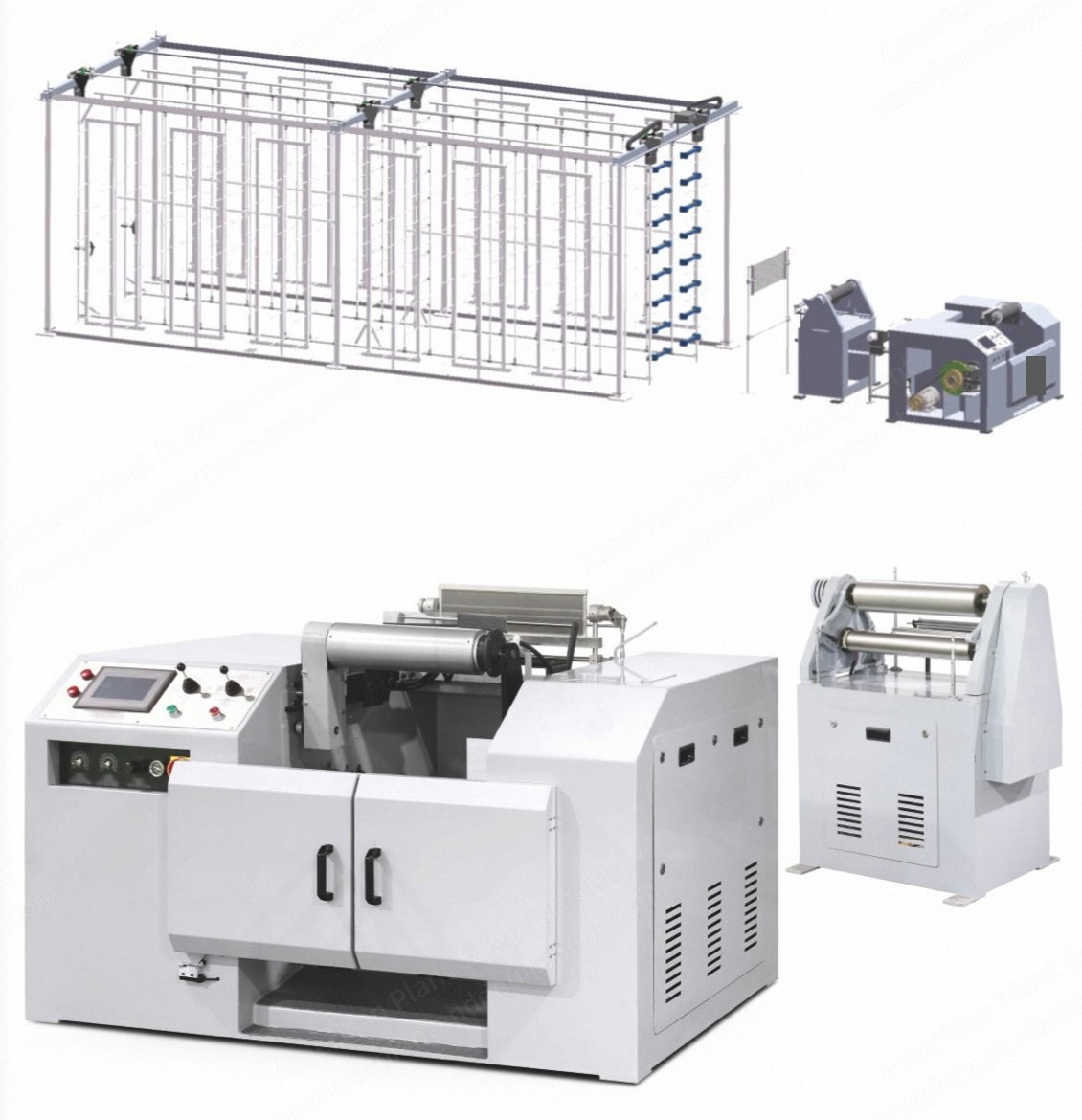

NovaStar, WS213, Real-Time Monitoring Copy Warping Machine, 100-1000 m/min, 7.5kW (New)

NovaStar, WS213, Real-Time Monitoring Copy Warping Machine, 100-1000 m/min, 7.5kW

Description

  1. Overview
    1. The real-time monitoring copy high-speed warping machine is a newly developed high-performance warping equipment.
    2. Equipped with a high-quality closed-loop tension control system (PID) to ensure constant and precise total tension of the yarn.
    3. The microcomputer control system continuously monitors the diameter of the pan head during the warping process and controls the tension in real time to ensure the diameter (outer circumference) and the meter length of the set pan heads are consistent.
  2. Capabilities
    1. According to the sample of the master disk, copy the disk head with the same set of parameters.
    2. The computer detects the diameter, length and number of turns of the pan head in real time to ensure that the diameter of the pan head (outer perimeter) and the length of the meter are the same.
    3. The tension roller implements the PID closed-loop adjustment tension to ensure the yarn tension is stable.
    4. High calculation accuracy, with super alarm function.
    5. Online correction warping parameters: the master head can correct the warping length, the child head can trim the outer perimeter and meter length.
    6. The disk head is loaded and unloaded by a pneumatic brake, and the roller brake uses an electric brake.
    7. Flexible and convenient operation, can be simulated disk head preparation.
  3. Specifications
    1. Capacity: 100 to 1000 m/min line speed
    2. Dimensions: Pan head specifications: 350x255, 400x305, etc.
    3. Braking torque: 1600Nm
    4. Maximum count range: 99999 meters
