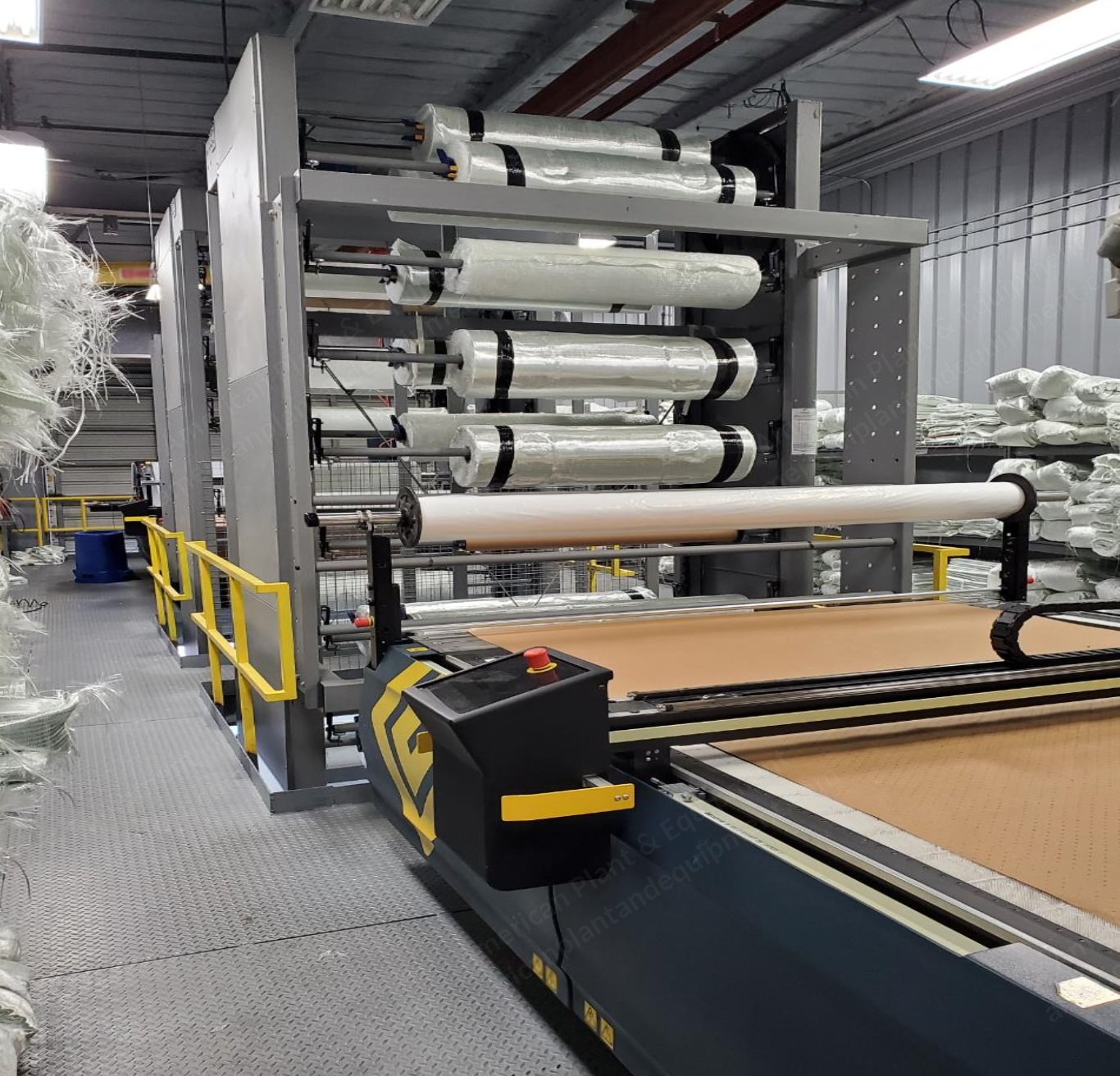

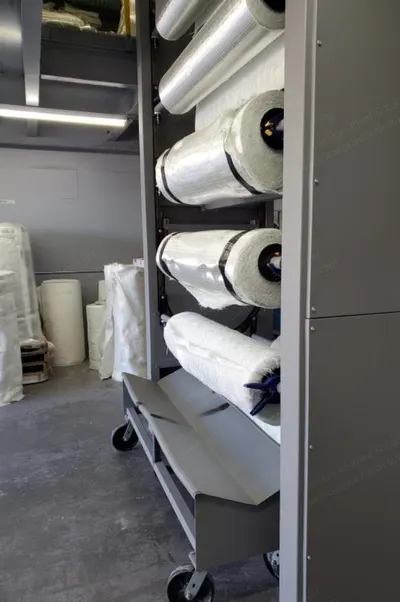

Summit Steel, SSC-RL-109-15-6, Roll Storage Carousel, 6 Roll Capacity, 1200 lbs Max Load Per Carrier (New)

Summit Steel, SSC-RL-109-15-6, Roll Storage Carousel, 6 Roll Capacity, 1200 lbs Max Load Per Carrier

Description

  1. Overview
    1. Product type to be stored: rolls at 13' 1" long x up to 21" diameter x 4" core
    2. Maximum load per carrier: 1200 lbs per pole
    3. Carrier/product capacity: 6 rolls/poles at 3" od x 162" useable length overall
    4. 6 rolls total at 13' length x 21" diameter maximum
  2. System Dimensions
    1. Carousel physical height: 9' 1"
    2. Must have 12" clear head room above carousel physical height
    3. Overall width: 15' need a minimum of 4" additional space
    4. Overall depth: 6' 6"
  3. Protection Guards
    1. Front protection guard: 72" from the floor to the top of machine with safety wire mesh unless otherwise stated on order confirmation
    2. Rear protection guard: from the top of machine to the floor with safety wire mesh unless otherwise stated on order confirmation
  4. Power and Operating Controls

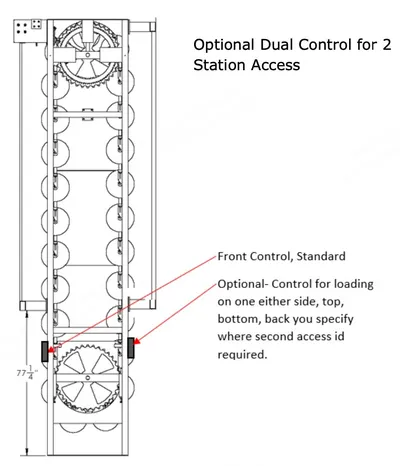

    1. Safety/security keypad, turn style switch with emergency stop
    2. Not a logic control for automation
    3. Turns the carousel on after entering 4 digit code
    4. Automatic shut down after 60 seconds of non-use
    5. Available carousel power: 208-volt 60 Hz, 3 phase 8-amp fla
    6. Available carousel power: 230-volt 60 Hz, 3 phase 6.4-amp fla
    7. Available carousel power: 460-volt 60 Hz, 3 phase 3.5-amp fla
    8. Power lead is located on the top righthand side of carousel with no termination end
    9. Please specify requested voltage when order is placed
  5. General System Specifications
    1. Maximum system capacity: 33" tb x 84 links @7 link spacing (internal use)
    2. Maximum system capacity: 16,000 lb
    3. Motor rating: 1 x 1.5 hp
    4. Carousel operating speed: 26 feet per minute
    5. Out of balance capacity: 2,000 lb
  6. Optional Equipment

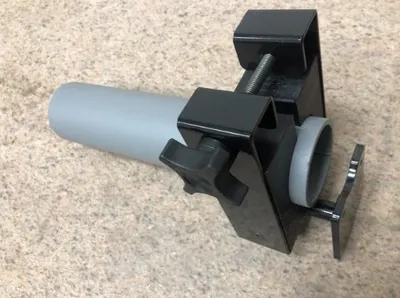

    1. Brake hook: allows the operator to apply tension to the pole so it does not spin freely
  7. Site Requirements
    1. Ambient temperature range: 40°f to 110°f (5°c to 43°c)
    2. Flooring requirements: 2,000 psi concrete slab, 4" depth minimum
    3. Machines are made for indoor use, however they can be used outside if completely covered and out of the environments
  8. Clearance Requirements
    1. Rear of machine: minimum of 2" from closest wall
    2. Sides of machine: minimum of 2" from closest wall (maintenance access will be restricted depending on clearance from the sides of the machine)
    3. Ceiling height: minimum of 12" from top of machine to nearest obstruction (i.e. fire suppression system, lights, pipes, conduit, etc.)
    4. All obstructions within the framework of machine must be removed
  9. Specifications
    1. Dimensions: 15' x 6' 6" x 9' 1" (WxDxH)
