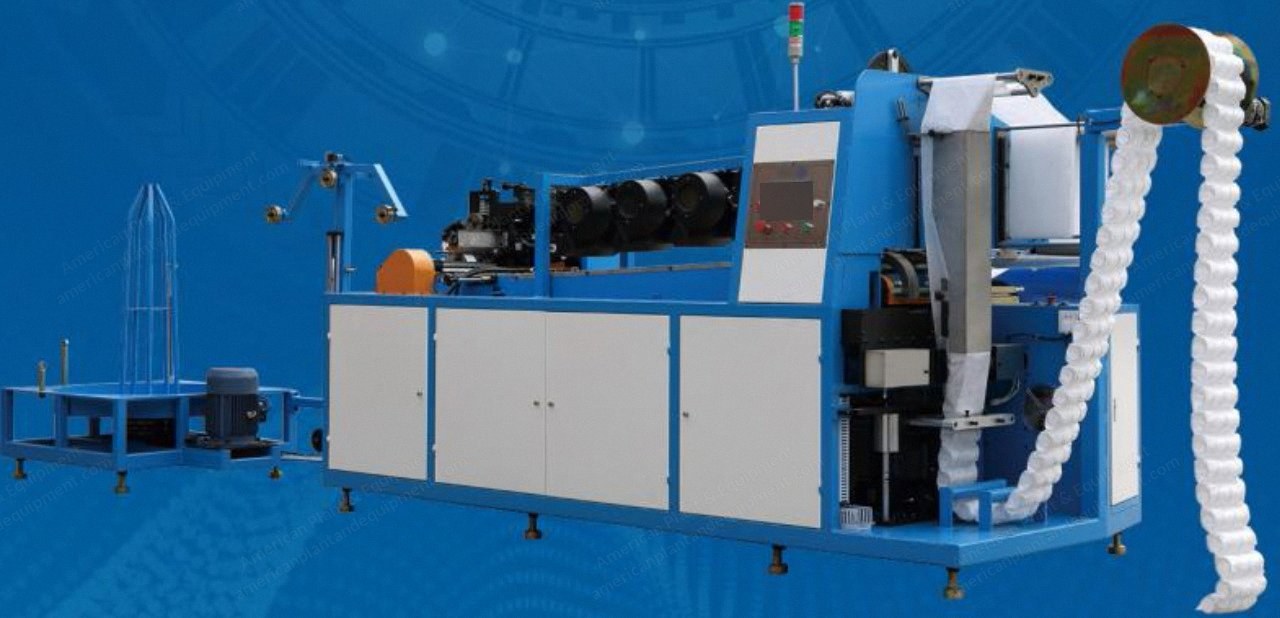

NovaStar, SB292, Pocket Spring Machine, 100 pcs/min, 1.6-2.4mm Wire Diameter, 3600x1900mm (New)

Details:

Pocket Spring Series

Item 001

Pocket Spring Machine

Product Main Information:

1. Full machine drive, working without air compressor, saving power cost, and more stable.

2. The machine occupies a small area and saves workshop space.

3. The springs are formed the shape first, and then done the heattreatment. So

the springs have good elasticity. The main electrical appliances and servo are

from well-known brands. It is stable and durable.

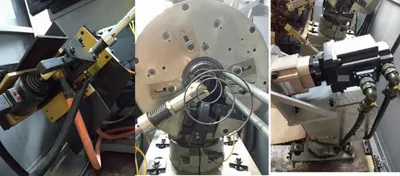

4. The body of the torsion head is cast, so it is high precision, stable and

durable, with automatic error detection function, it will automatically shut down when production error occurs.

Item 002

Pocket Spring Machine

Product Main Information

1. Full CNC operation.

2. Spring dimension parameters can be stored and preset, so it will save time.

3. Easy to learn and operate. The program is optimized by technicians with

more than 20 years of experience in the mattress industry.

4. Full mechanical drive, working without air compressor, saving power cost,

and more stable.

5. The machine occupies a small area and saves workshop space.

6. The springs are formed the shape first, and then done the heattreatment. So the springs have good elasticity.

7. The main electrical appliances and servo are from well-known brands. It is stable and durable.

8. The body of the torsion head is cast, so it is high precision, stable and durable.

9.With automatic error detection function, it will automatically shut down when production error occurs.

Item 003

Dual Wire Automatic Pocket Spring Machine

Product Main Information

1. Dual wire input, suitable for producing multi-zone mattress, fully CNC operation.

2. Spring dimension parameters can be stored and preset, so it will save time.

3. Easy to learn and operate. The program is optimized by technicians with more than

20 years of experience in the mattress industry.

4. Full mechanical drive, working without air compressor, saving power cost, and more stable.

5. The machine occupies a small area and saves workshop space.

6. The springs are formed the shape first, and then done the heattreatment. So the

springs have good elasticity.

7. The main electrical appliances and servo are from well-known brands. It is stable and durable.

8. The body of the torsion head is cast, so it is high precision, stable and durable.

9.With automatic error detection function, it will automatically shut down when production error occurs.

Item 004

Pocket Spring Gluing Machine (Assembler)

Product Main Information

1. The operating system is humanized, the speed of adjusting the mattress specification is fast.

2. The device for turning over the pocket spring bars is designed to be gearless, stable and durable.

3. High stability, the machine mainly uses mechanical transmission and air pressure demanded is very low.

4. Continuous or intermittent gluing is optional, it can save glue.

5. Can produce multi-zone mattress.

6. The main electrical appliances and servo are from well-known beands, it is stable and durable.

Item 005

Automatic Pocket Spring Assembly Machine

Product Main Information

1. High speed, assembling 14 rows of pocket springs/min, about 2 to 3 mins to produce a mattress.

2. High stability, the machine mainly uses mechanical transmission and air pressure demanded is very low.

3. Save manpower, full CNC, only 1 person can operate the automatic production line that including 3 pocket spring machines and this machine.

4. This machine occupies a small area, if using it and our pocket spring machines to form an automatic mattress production line, plant area savings will be more obvious.

5. With automatic error detection function, it will automatically shut down when production error occurs.

6. Can produce multi-zone mattress.

7. The main electrical appliances and servo are from well-known beands, it is stable and durable.

Bonnell Spring Series

Item 006

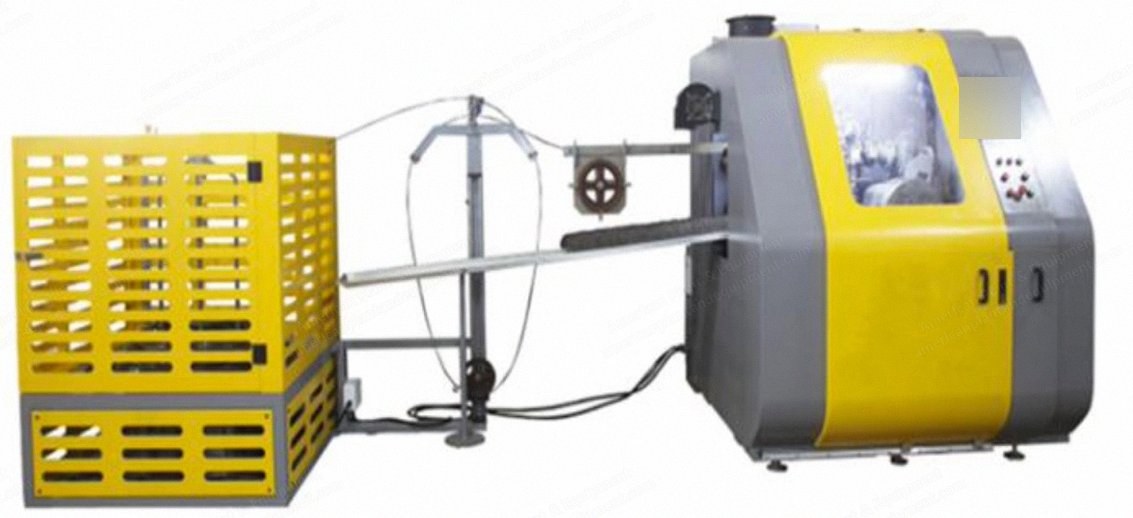

Automatic Spring Coiling Machine

Item 007

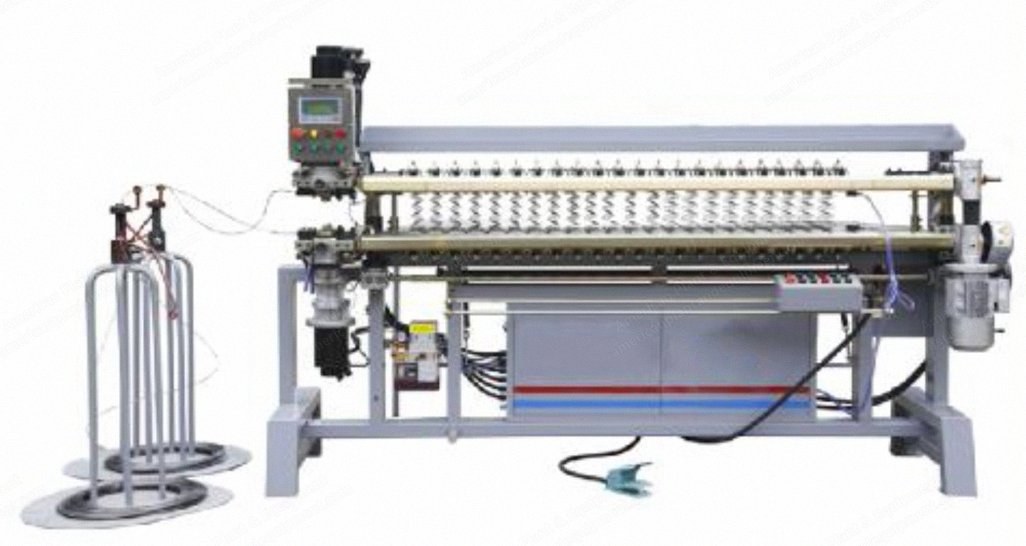

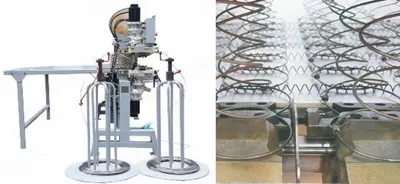

Automatic Spring Assembly Machine

Item 008

Automatic Spring Bed Core Production Line

Item 009

Automatic Spring Bed Core Production Line

Quilting Series

Item 010

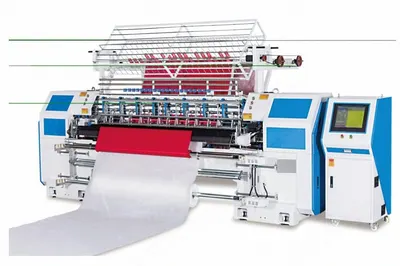

High Speed Computerized Lock-Stitch Shuttle Multi-Needle Quilting Machine

Item 011

High Speed Computerized Chain Stitch Multi-Needle Quilting Machine

Item 012

High Speed Computerized Chain Stitch Multi-Needle Quilting Machine

Item 013

Panel Cutting Machine

Item 014

Long Arm Single Needle Quilting Machine

Item 015

Computerized Single Head Quilting Machine

Technical Characteristics

1. Motor/hok box motor: servo motor

2. Stitch length: 2 to 6mm
3. Rotary hook: big rotary hook
4. Voltage: single-phase 220V 50Hz

5. Needel speed: 3000 rpm

6. Power: 2.5kW

Item 016

Computerized Single Needle Quilting Machine

Technical Characteristics

1. Small working area.
2. THICK MATERIAL, BRAND ELECTRONIC ACCESSORIES, SMALL QUIILTING SOUND, DESIGNED SERVICE LIFE OF 10 YEARS.
3. Nearly 200 types of flower, let you choose at your own will, in the peer to grab the first opportunity.
4. Test machine before delivery, ensure the machine is trouble-free.
5. Suitable for processing all kinds of quilts, sofa cushions and leather products.

Sewing Series

Item 017

Front and Back Double-Heads Mattress Sewing Machine

Product Main Information

1. Equipped with direct-driven servo motor to control heads with synchronous drive.

2. Adjustable fabric expanding device and rolling mechanism can automatically cut the cloth unnecessary for side-lock.

3. It can be combined with double heads border quilting machine.

Item 018

Linear Motor

Product Main Information

1. Automatic operation.
2. Thread-breaking checking device.
3. Tailing materials stopping device.
4. Incorporates the servo motor to control the sewing speed.

Item 019

Mattress Surrounding-Belt Lace Sewing Machine

Product Main Information

1. Automatic operation.
2. No-shuttle multi-needle sewing head.
3. Electronic servo motor.
4. Thread-breaking checking device.
5. Automatic cloth feeding and receiving device.
6. Incorporates the imported electronic positioning motor and control sewing speed.

7. Fabric width can be adjusted according to requirement.

Item 020

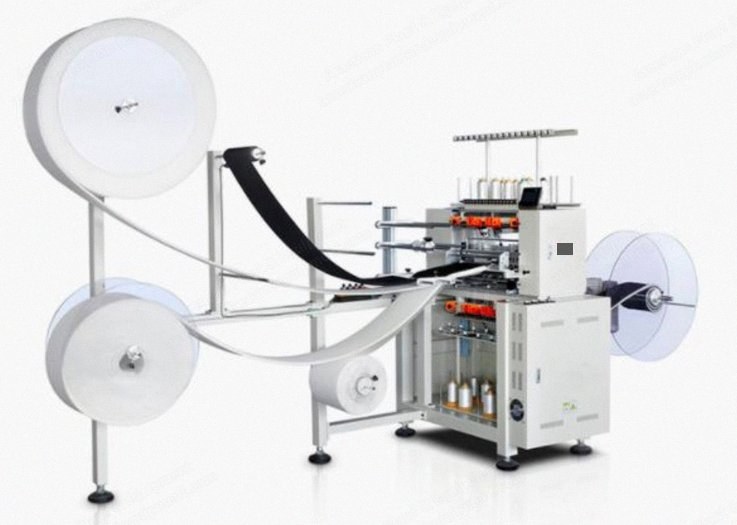

Double Heads Border Quilting Machine

Product Main Information

1. Incorporate Windows operating system, easy operation, patterns intuitive and precise.

2. CAD drawing method, scan to input, simple and convenient.

3. Computerized compensation and extent amendment, ensuring better precision and perfection.

4. Stable design, high speed operation, stable and durable.

5.Shuttleless structure without changing bottom thread. Automatically stop when thread breaks.

6.Full or independent servo control.

7.Pattern effect process track, auto detection operation.

8.Automatic rolling device.

Item 021

Four-Head Dotting Machine

Product Main Information

1. Incorporate 4 Japanese shuttle sewing heads that can work together or separately, which provides more efficient productivity.

2. Professional control system, programmable design interface, touch-screen control, easy to operate.

3. Able to move to left or right along X, roller cloth feeding and incorporates servo and stepping motors ensuring more precision.

4. 16-axle full-automatic control, can be fully automatic or separate axle controlled, with pattern sewing of high precision.

5.Automatic thread cutting without any thread residue.

6.Automatic cloth receiving and feeding device in synchronous movement.

7. Able to design according to the patterns of clients.

Item 022

Border Cutting Machine

Product Main Information

1. Graphic and text interface, easy to operate.

2. Incorporate imported servo control system for more precise cutting size.

3. Multiple combinations of marking strips, handles or vent positions.

4. It can save combination size data, more convenient to change size and specifications.

5. Hidden slitting knife design is more secure and reliable.

Item 023

Automatic Faux Pillow-Top Sewing Machine

Product Main Information

This machine is mainly used for sewing a double piece of border material to simulate pillowtop beds. And sewing a 3D effect on a single piece of cloth. Compared with the traditional equipment, the machine improves the production efficiency and incorporates double servo motors to precisely control the sewing angle speed.

Tape Edge Series

Item 024

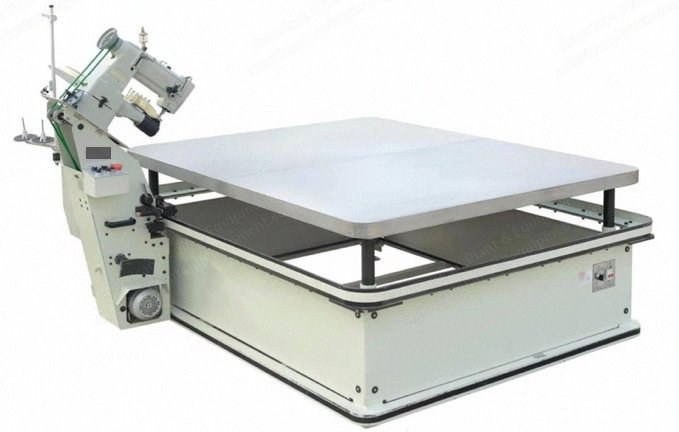

Mattress Tape Edge Machine

Main Features

The equipment incorporates advanced head comb with out seam, through the inverter can automatically decelerate stepless speed and turning position, make the sewing mattress suture straight uniform beautiful appearance, stable operation, small vibration, low noise, and the head tilt table with lifting button switch is adjusted, reducing the labor intensity of the operators.

Use and Characteristitics

The mattress sewing machine is suitable for spring mattress, foam mattress surface seam sewing kit, cushion also applies to any specifications of the edge cover.

The lifting work table can be adjusted with the sewing machine head with adjustable angle, knee lever or manusl manipulation to hem the flexible control, every 6 minutes to complete a mattress sewing.

Item 025

Mattress Tape Edge Machine - Singer 300U

Main Features

The equipment incorporates advanced head comb with out seam, through the inverter can automatically decelerate stepless speed and turning position, make the sewing mattress suture straight uniform beautiful appearance, stable operation, small vibration, low noise, and the head tilt table with lifting button switch is adjusted, reducing the labor intensity of the operators.

Use and Characteristitics

The mattress sewing machine is suitable for spring mattress, foam mattress surface seam sewing kit, cushion also applies to any specifications of the edge cover.

The lifting work table can be adjusted with the sewing machine head with adjustable angle, knee lever or manusl manipulation to hem the flexible control, every 6 minutes to complete a mattress sewing.

Item 026

Mattress Tape Edge Machine

Main Features

The equipment incorporates advanced head comb with out seam, through the inverter can automatically decelerate stepless speed and turning position, make the sewing mattress suture straight uniform beautiful appearance, stable operation, small vibration, low noise, and the head tilt table with lifting button switch is adjusted, reducing the labor intensity of the operators.

Use and Characteristitics

The mattress sewing machine is suitable for spring mattress, foam mattress surface seam sewing kit, cushion also applies to any specifications of the edge cover.

The lifting work table can be adjusted with the sewing machine head with adjustable angle, knee lever or manusl manipulation to hem the flexible control, every 6 minutes to complete a mattress sewing.

Item 027

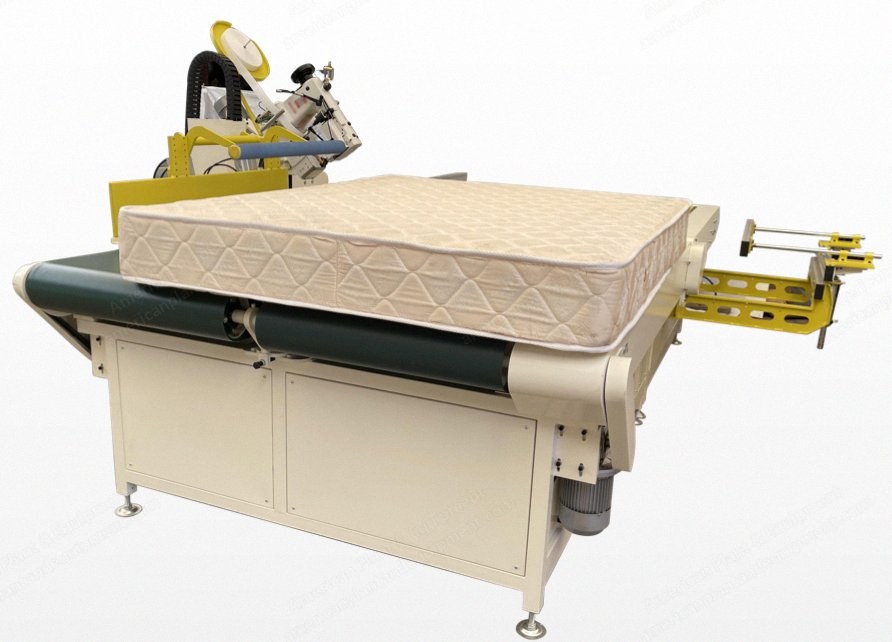

Automatic Mattress Tape Edge Machine

Product Description

This machine is mainly used for taping edge of mattress panel and soft cushion.

It bears the following features:

-  RATHER THAN MOVING AROUND, THE HEAD IS FIXED BUT CAN MOVE UP AND DOWN TO ADAPT TO DIFFERENT HEIGHT OF MATTRESS. THE ANGLE OF THE HEAD IS ADJUSTABLE

-  WHEN WORKING, THE CONVEYING BELT DRIVES THE MATTRESS PROCEED. WHEN ONE SIDE IS FINISHED, THE MACHINE CAN TURN 90° AUTOMATICALLY TO START TAPING THE NEXT SIDE. THE TAPING OF THE CORNER IS FINISHED WHILE TURNING. WHEN THE TOP FOUR SIDES COMPLETED, THE MACHINE CAN TURN THE MATRESS OVER FOR TAPING THE OTHER FOUR SIDES.

-  THIS MACHINE NEEDS ONLY ONE OPERATOR AND THERE IS NO NEED FOR HIM TO MOVE AROUND OR OVERTURN THE MATTRESS MANUALLY. THUS HIGHER EFFICIENCY AND LESS LABOR ARE REALIZED.

Foam Series

Item 028

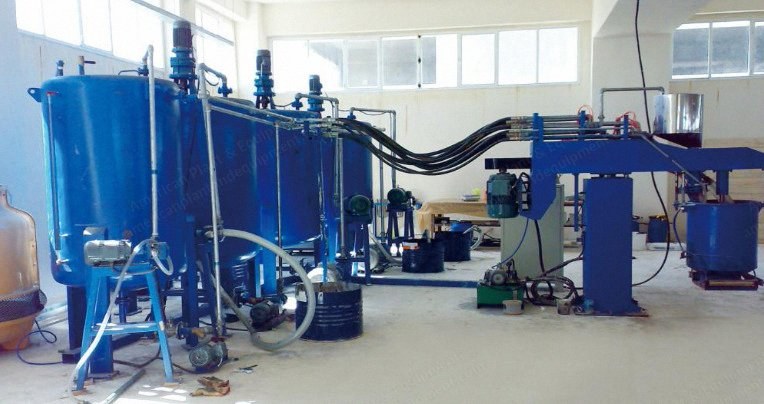

Automatic Box Foaming Machine

Technical Characteristics

This machine is mainly for making foam density 8 to 80kg/cm³.

It incorporates high antomatization level, more flexible operation touch screen

Control system, user can store 10 kinds of different formulations and adjust the formulation anytime, and remote control by internet, which makes the control cost more scientific and visual. Apply to furniture, chest circumference, shoes, electronics, packing, clothing, car, aviation etc.

The production line has a fully automatic computer and manual controls, easily to operate. It’s the best choice for middle scale soft polyurethane equipment.

Item 029

Profile Foam Cutting Machine

Technical Characteristics

The machine is mainly used for wave-shaped foam cutting, widely used in car seat, mattresses, electronics packaging, health products, precision instrument, valuable goods etc other industries. Easy to operate, cutting precision.

Item 030

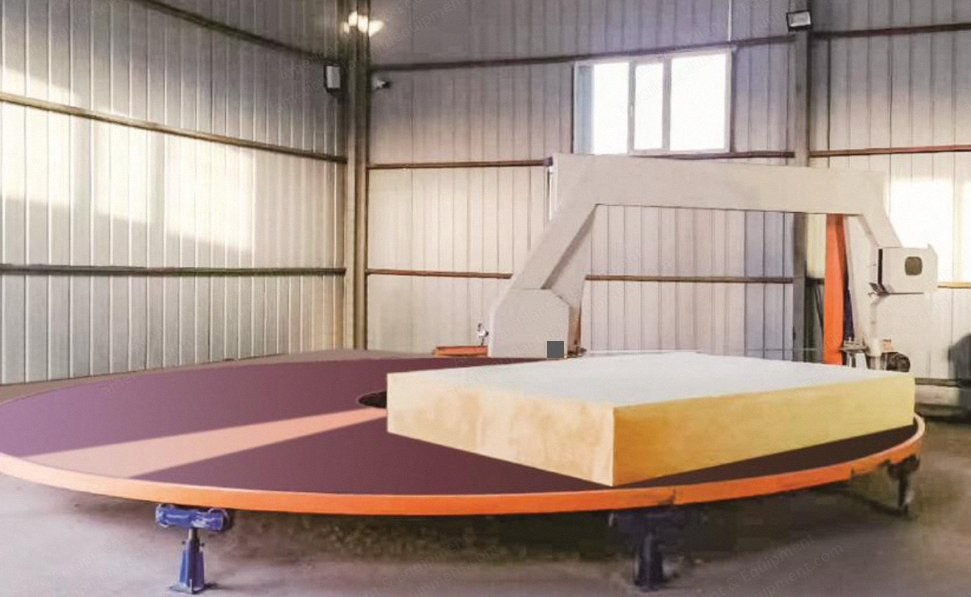

Horizontal Circle Foam Cutting Machine

Technical Characteristics

The machine mainly puts many block foam on the worktable cutting slices at the same time, incorporate fully automatic digital control, and setting the number as need cutting thickness and foam density by control box. The worktable runs automatically. The turning speed of worktable is adjustable.

Continuously cutting, the production efficiency is very high (worktable also choose adding to vacuum equipme).

Technical Parameter:

Item 031

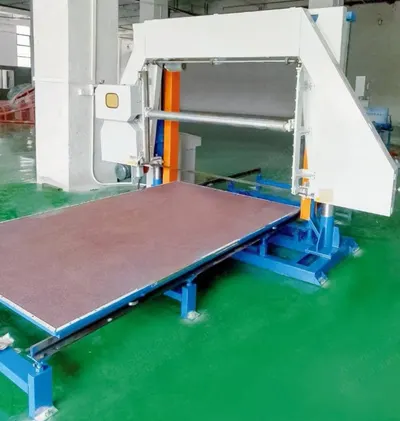

Horizontal Foam Cutting Machine

Technical Characteristics

The machine mainly cutter the block foam into slices. The worktable is incorporate fully automatic digital control, setting the number by control box as need cutting thickness and foam density, the worktable automatically runs. It can adding to pressure roller, and in order to prevent cutting foam removing. Easy to operate, cutting precision (worktable also choose adding to vacuum equipment).

Technical Parameter

Item 032

Foam Peeling Machine

Technical Characteristics

The machine is mostly used for round foam continuously cutting and automatic-accept equipment. The products used for mattresses, chest circumference, shoe, packaging ano other industries. Easy to operate, cutting precision. (Choose CNC PLC setting thickness, instead of the traditional of gears change cutting thickness, precision 0.1mm).

Item 033

Drilling Foam Machine

Technical Characteristics

This mactte is the support equipment of foam peeling machine. Itis mainly used for round foam drilling, easy to operate, cutting precision.

Item 034

Crushing Foam Machine

Small

Middle

Technical Characteristics

The machine is mainly used for crushing foam scrap, waste broken into granular, and then used for pillow, sofa, toy and make re-bonding foam etc, high productivity.

Item 035

Crushing Foam Machine (Super Power)

Technical Characteristics

The machine incorporates imported cutting tools, bearings etc. It's mainly used for crushing foam scrap, cloth waste, thrum, waste broken into qranular, 4 line stationary cutter and 3 line rotary cutter, crushing ability, whether hard, soft, film, yarn material can quickly crushed, widely used for all kinds of large- scale plastic products, bulk materials and pipe rugged. High productivity.

Item 036

Round Foaming Moulding

Technical Characteristics:

Foaming size: 1800XH2200mm;
Size can be customized according to actual requirements.

Item 037

Quadrate Foaming Moulding

1

2

Packing Series

Item 038

Pocket Spring Unite Roll Packing Machine

Technical Characteristics

This machine is mainly used for roll-packing the mattress spring unit to pack, so that to save shipping space and freight.

Item 039

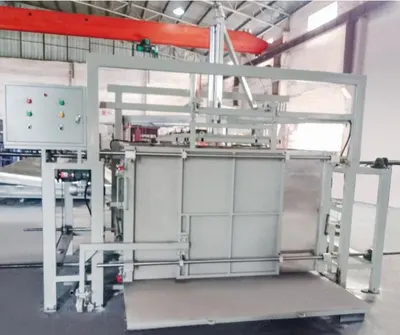

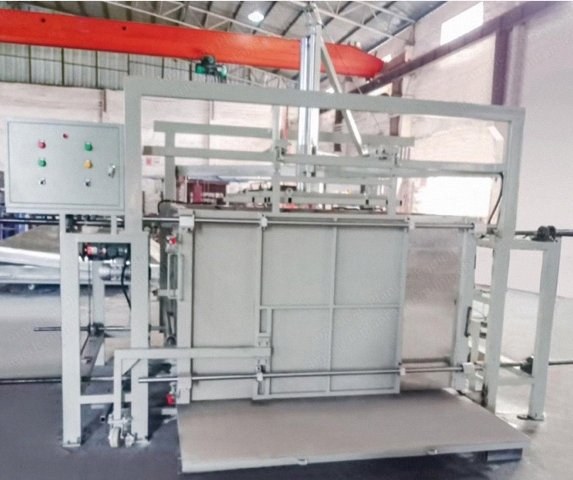

Semi-Automatic Mattress Compression Machine

Product Main Information

1. The machine is composed of three parts: press, sealing machine,vacuum pumping machine.

2. Vacuum compression packaging, professional electronic control system, can ensure that under the condition of not damaging the mattress rapid compression of different models, thickness of the mattress, can greatly save transportation space, improve transportation efficiency, so as to achieve a good reduction of transportation and storage costs.

Item 040

Automatic Mattress Compression Machine

Product Main Information

1. The machinery consists of two parts: press, sealer.

2. Integrated automatic mattress compressor, mattress compression from the entrance to the exit are automatically completed by the conveyor belt, and has automatic vacuum, automatic heat sealing and other functions, saving time and effort, reducing labor intensity, and greatly save the storage, transportation space and corporate costs.

Item 041

Full Automatic Mattress Compressor Machine

Product Main Information

1. The machinery consists of two parts: press, sealer.

2. Integrated automatic mattress compressor, mattress compression from the entrance to the exit are automatically completed by the conveyor belt, and has automatic vacuum, automatic heat sealing and other functions, saving time and effort, reducing labor intensity, and greatly save the storage, transportation space and corporate costs.

Item 042

Automatic Mattress Rolling Machine

Product Main Information

This machine is suitable for packing foam or latex mattress with density less than or equal to 30kg/m³.

High production efficiency, 35~40 seconds to complete bagging.

Simple operation, as long as put the mattress and bag, press a button to automatically complete the operation, the general workers can learn to operate the machine in 5 minutes.

Packaging cost is low, each mattress only needs a diameter of about 320mm PVC bag or PE bag.

The machine structure is compact and simple, easy to install and maintain.

After rolling, the volume of mattress is greatly reduced, thus greatly reducing the cost of product transportation and storage.

Item 043

Adjustable Diameter Mattress Rolling Machine

Product Main Information

1. Strong applicability, as long as the mattress material is allowed to wrap, whether spring mattress, or foam, or latex are applicable, no matter how thick, how thin the mattress is no limit.

2. Caliber is adjustable, the size of the diameter according to the thickness of the mattress, length size, normal diameter in the range of 24cm to 50cm.

4. The operation is simple; any worker can learn to operate in 3 minutes.

Item 044

Automatic Compress Roll Packing Machine

Product Main Information

1. All-in-one machine with three functions of compression, heat sealing and packaging, which saves space and reduces cost for mattress transportation and storage. Compared with similar equipment, it has more remarkable characteristics.

2. The caliber is not limited. It can be adjusted to the caliber of each kind of mattress according to the height of each kind of mattress, so as to solve the trouble of fixed caliber for the manufacturer.

3. Production efficiency is high, each mattress compression coil process only takes 1 minute.

4. The operation is simple, the training time is short, the shift of production personnel is

easy, and the products after packaging are beautiful and generous.

5. Easy to disassemble, convenient transportation.

Item 045

Full Automatic Mattress Compress Fold Rolling Machine

Product Main Information

1. This machine can packaging the mattress with plastic film, and then compression the mattress. The mainly function of this machine is the roll- packing of mattress. This function can greatly save the cost of transportation of the mattress.

2. This equipment can be operated continuously, so it can be connected to the production line to improve packaging efficiency.
