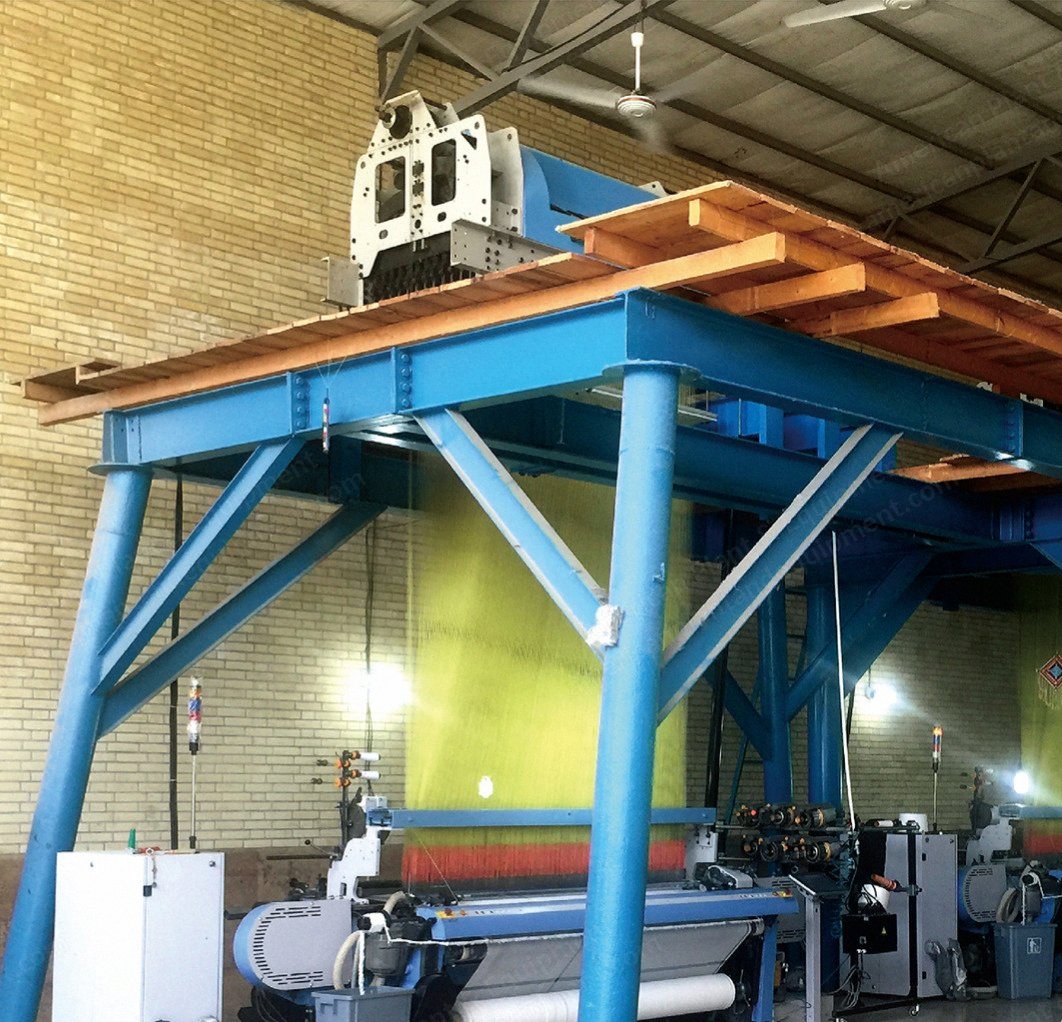

NovaStar, WM422, Electronic Jacquard, Max. Speed 650rpm, Double Lift, Full Shedding (New)

Item 001

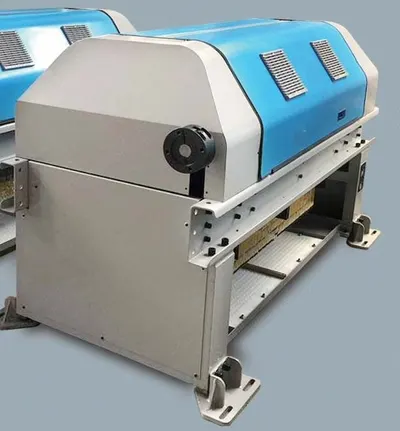

1. Electronic jacquard

2. Features Of Mechanical Parts

   1. Driven by extremely solid bilateral eccentric cam

   2. Min maintenance

   3. With integrated frame design bearing advantaES of high precision, high intensity and light weight

   4. Equipped with the balance-arm lifting mechanism which eliminates unbalanced load and can work without vibration

   5. Incorporating the simple knife height-adjustment method and the fast-opening dimension-adjustment system which bring extreme flexibility to the machine

   6. Equipped with the solid lifting mechanism, supporting structure and the needle-selecting system which can work normally in high speed

3. Controller Profile

   1. Windows system

   2. Big memory with double core and improving running speed

   3. Diagnosis function with fast speed and accurate fixing

   4. Optical transmission

   5. Touch screen

   6. Work ep and jc design

   7. High stability

4. Field Of Application

   1. All kind of rapier loom, water jet loom, air jet loom and also shuttle loom

5. Fabric Suitability

   1. All flat fabrics and terry cloth including home textile, garment fabric, towel, tie, label and so on

6. Drive System And Shedding

   1. Double lift, full shedding, easy accurate shed opening adjustment

7. Specifications

   1. Max. speed: 650 rpm

   2. Shedding size: 50 to 120 mm

   3. Type of reversing: spring

   4. Ape model 1: white board 24 holes x 76 lines, module line 48 hooks x 38 lines, size 2060 x 1270 x 1460 mm

   5. Ape model 2: white board 24 holes x 114 lines, module line 48 hooks x 57 lines, size 2554 x 1270 x 1460 mm

   6. Ape model 3: white board 32 holes x 114 lines, module line 64 hooks x 57 lines, size 2554 x 1270 x 1460 mm

   7. Ape model 4: white board 48 holes x 76 lines, module line (48 hooks x 2) x 38 lines, size 2060 x 1270 x 1460 mm

   8. Ape model 5: white board 48 holes x 114 lines, module line (48 hooks x 2) x 57 lines, size 2554 x 1270 x 1460 mm

   9. Ape model 6: white board 48 holes x 152 lines, module line (48 hooks x 2) x 76 lines, size 3048 x 1270 x 1460 mm

   10. Ape-a model 1: white board 24 holes x 80 lines, module line 24 module x 10 lines x 8 hooks/module, size 1556 x 1270 x 1460 mm

   11. Ape-a model 2: white board 24 holes x 160 lines, module line 24 module x 20 lines x 8 hooks/module, size 2060 x 1270 x 1460 mm

   12. Ape-a model 3: white board 24 holes x 240 lines, module line 24 module x 30 lines x 8 hooks/module, size 2554 x 1270 x 1460 mm

   13. Ape-a model 4: white board 24 holes x 320 lines, module line 24 module x 40 lines x 8 hooks/module, size 3048 x 1270 x 1460 mm

   14. Ape-a model 5: white board 24 holes x 400 lines, module line 24 module x 50 lines x 8 hooks/module, size 3542 x 1270 x 1460 mm

   15. Ape-a model 6: white board 32 holes x 384 lines, module line 32 module x 48 lines x 8 hooks/module, size 3500 x 1570 x 1460 mm

   16. Ape-a model 7: white board 32 holes x 480 lines, module line 32 module x 60 lines x 8 hooks/module, size 3992 x 1570 x 1460 mm

Item 002

1. Electronic jacquard

2. Features Of Mechanical Parts

   1. Double chain system

   2. Incorporating the simple knife height-adjustment method and fast opening dimension-adjustment system which bring extreme flexibility to the machine

   3. Equipped with the solid lifting mechanism, supporting structure and the needle-selecting system which can work well

3. Controller Profile

   1. Industrial grade system

   2. Big memory with double core and improving running speed

   3. Diagnosis function with fast speed and accurate fixing

   4. Anti-interference transmission

   5. Work for ep and jc design

   6. High stability

4. Field Of Application

   1. For the normal or low speed rapier loom and shuttle loom

5. Fabric Suitability

   1. All flat fabrics and terry cloth including home textile, garment fabric, towel, tie, label and india sari fabric and so on

6. Drive System And Shedding

   1. Double lift, full shedding, easy accurate shed opening adjustment

7. Specifications

   1. Max. speed: 300 rpm

   2. Shedding size: 50 to 120 mm

   3. Type of reversing: spring

   4. Nova model 1: white board 32 holes x 44 lines, module line 64 hooks x 22 lines, size 1650 x 1090 x 1230 mm

   5. Nova model 2: white board 32 holes x 88 lines, module line 64 hooks x 44 lines, size 2270 x 1090 x 1230 mm

   6. Nova-a model 1: white board 16 holes x 88 lines, module line 16 module x 11 lines x 8 hooks/module, size 1490 x 1090 x 1230 mm

   7. Nova-a model 2: white board 16 holes x 176 lines, module line 16 module x 22 lines x 8 hooks/module, size 2030 x 1090 x 1230 mm

Item 003

1. Electronic jacquard

2. Features Of Mechanical Parts

   1. Ear driving system

   2. Incorporating the simple knife height-adjustment method and the fast-opening dimension-adjustment system which bring extreme flexibility to the machine

   3. Special body frame suited for the small size factory

3. Controller Profile

   1. Industrial grade system

   2. Anti-interference transmission

   3. Work for ep and jc design

   4. High stability

4. Field Of Application

   1. For the low-speed rapier loom and shuttle loom

5. Fabric Suitability

   1. All flat fabrics and terry cloth including home textile, garment fabric, towel, tie, label and india sari fabric and so on

6. Drive System And Shedding

   1. Double lift, three type shedding, easy accurate shed opening adjustment

7. Specifications

   1. Max. speed: 250 rpm

   2. Shedding size: 95/95, 115/115, 95/115

   3. Type of reversing: spring/steel pendant

   4. Star model 1: white board 12 holes x 40 lines, module line 12 module x 5 lines x 8 hooks/module, size 1120 x 800 x 1020 mm

   5. Star model 2: white board 12 holes x 40 lines, module line 12 module x 5 lines x 8 hooks/module, size 1150 x 800 x 1020 mm

   6. Star model 3: white board 12 holes x 88 lines, module line 12 module x 11 lines x 8 hooks/module, size 1330 x 800 x 1020 mm

   7. Star model 4: white board 12 holes x 112 lines, module line 12 module x 14 lines x 8 hooks/module, size 1513 x 800 x 1020 mm

   8. Star model 5: white board 12 holes x 114 lines, module line 12 module x 18 lines x 8 hooks/module, size 1693 x 800 x 1020 mm

   9. Star model 6: white board 12 holes x 176 lines, module line 12 module x 22 lines x 8 hooks/module, size 1880 x 800 x 1020 mm

   10. Star model 7: white board 16 holes x 56 lines, module line 16 module x 7 lines x 8 hooks/module, size 1140 x 930 x 1020 mm

   11. Star model 8: white board 16 holes x 88 lines, module line 16 module x 11 lines x 8 hooks/module, size 1330 x 930 x 1020 mm

   12. Star model 9: white board 16 holes x 112 lines, module line 16 module x 14 lines x 8 hooks/module, size 1500 x 930 x 1020 mm

   13. Star model 10: white board 16 holes x 176 lines, module line 16 module x 22 lines x 8 hooks/module, size 1880 x 930 x 1020 mm
