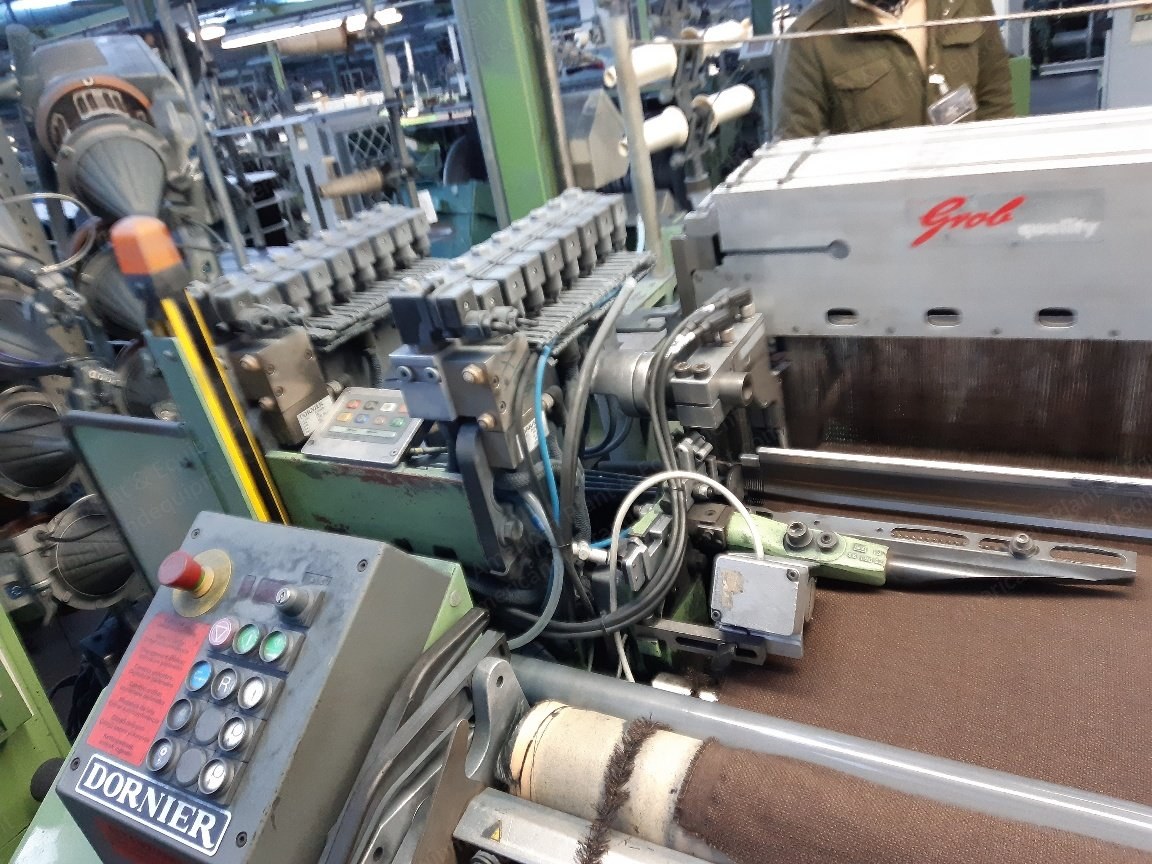

Dornier, Air-Jet Weaving Machines, 1988 to 2008, 2100mm to 4300mm Working Width, Staubli Dobby / Jacquard Prepared

Dornier, Air-Jet Weaving Machines, 1988 to 2008, 2100mm to 4300mm Working Width, Staubli Dobby / Jacquard Prepared

Description

  1. Item 001A

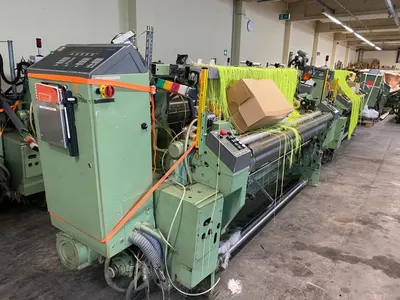

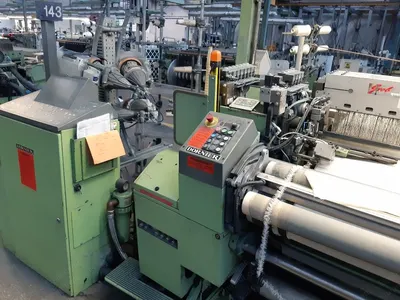

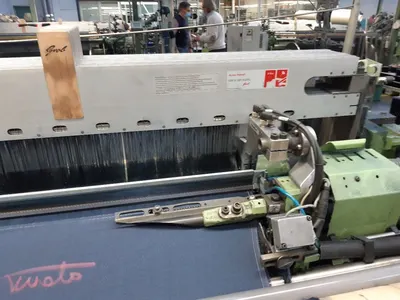

    1. Used Dornier airjet looms, type AWSE 4/S and 8/S
    2. Working width: 2100 mm

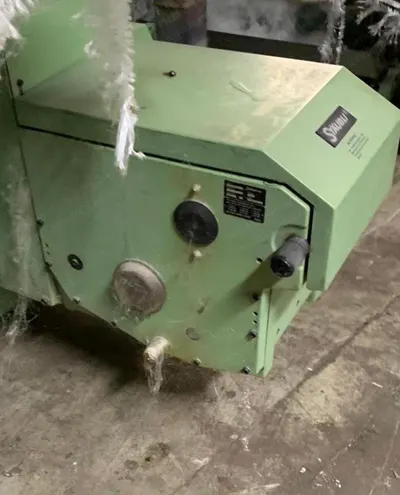

    3. Staubli dobby 2881/16 levers
    4. Weft insertion: 11 x 4 colors and 3 x 8 colors
    5. 12 looms year: 2007
    6. 2 looms year: 2008

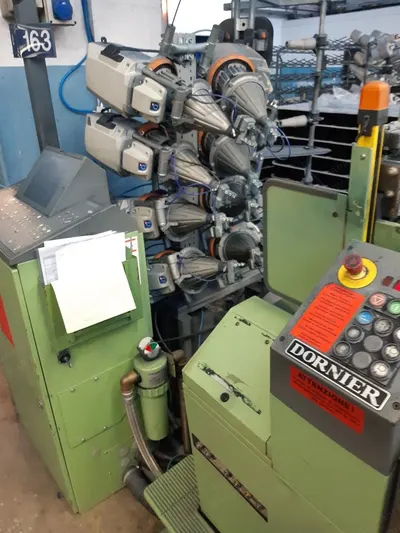

    7. Accessories per loom: 10 heald frames, 1 cloth roller, 4 (11) resp. 8 (3) weft feeders Roj Super Elf X2, heddles and droppers
    8. No warp beam (can be arranged)
    9. Condition: excellent
  2. Item 001B
    1. Used Dornier airjet looms
    2. Type: AWSE 6/S nominal
    3. Width: 2200 mm
    4. Staubli dobby 2871/16 levers
    5. 6 weft colors
    6. Year: 2006
    7. Accessories per loom: 4 weft feeders Roj Super Elf X2, 12 heald frames, 1 cloth roller, 1 warp beam 800 mm, heddles and droppers
    8. Condition: excellent
  3. Item 002

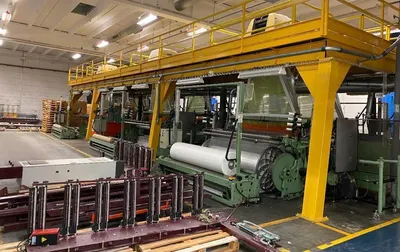

    1. Dornier air-jet looms type LWV4/J – AT2
    2. 2 looms: working width 4300 mm, year 1998
    3. 2 looms: working width 3800 mm, year 1999

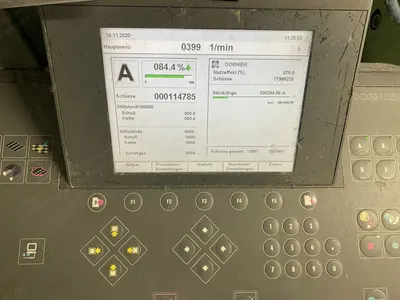

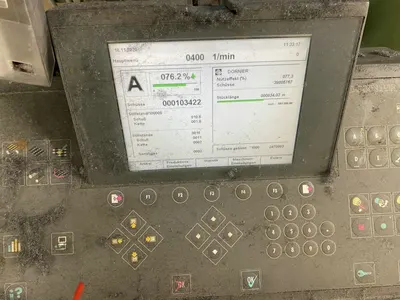

    4. Dialog panel II AT2, 4 weft colors

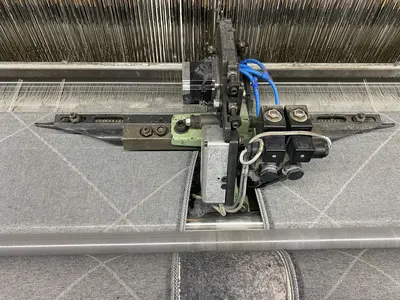

    5. With side tuckers L+R and center tucker (pneuma tuckers)
    6. Split beam execution – 2 warp let-off motors EWL, electronic cloth take-up ECT
    7. Looms prepared to work with jacquard (not included)
    8. Accessories: 2 weft feeders, 2 half warp beams Ø 1100 mm, on loom cloth roll take-up (cloth roller is not available), harness parts
    9. Status: worked in mill
  4. Item 003
    1. Dornier air-jet and rapier – technical weaving used for glass-fibre etc.
    2. A
      1. Dornier air-jet looms type AWSE 2/J – AT2
      2. Year: 2003
      3. Working width: 2300 mm
      4. Dialog panel II AT2
      5. 2 weft colors
      6. Electronic warp let-off EWL
      7. Warp beam flange diameter: 1000 mm
      8. Electronic cloth take-up ECT
    3. B
      1. Dornier air-jet looms type LWV4/J – AT1
      2. Year: 1995
      3. Working width: 2300 mm
      4. AT1 panel
      5. 4 weft colors
      6. Electronic warp let-off EWL
      7. Warp beam flange diameter: 1000 mm
      8. Electronic cloth take-up ECT
    4. C

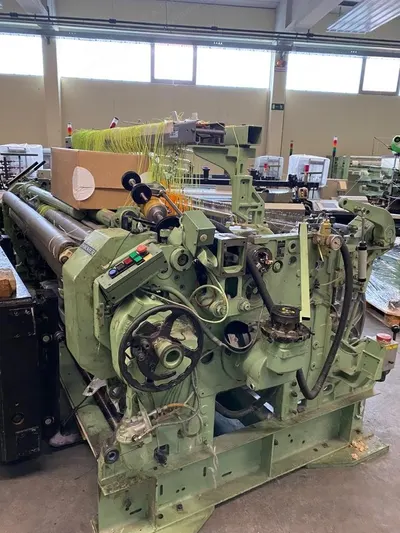

      1. Dornier rapier loom, type HTVS 12/J – EDU
      2. Year: 1988
      3. Working width: 2300 mm
      4. 8 weft colours / ECS
      5. Dornier electronic warp let-off
      6. Warp beam flange diameter: 1000 mm
      7. Mechanical cloth take-up
    5. Looms prepared to work with jacquard (not included), take-up rollers for heavy weight fabrics
    6. Accessories per loom: 1 weft feeder with electronic panel and stand, 1 warp beam, harness parts, droppers
    7. No jacquard machines included
    8. Further available with the package
      1. 01 Staubli 2117 electronic dobby – 12 levers installed
      2. 30 drop bars

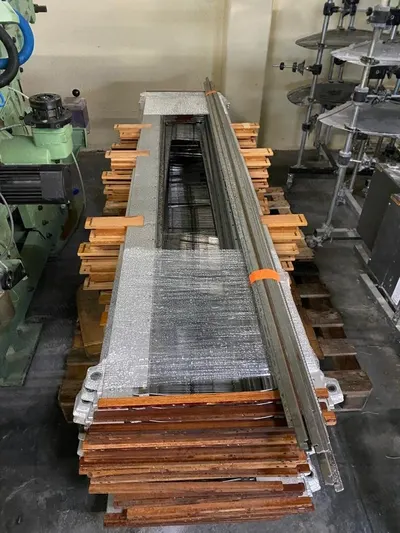

      3. 50 heald frames 230

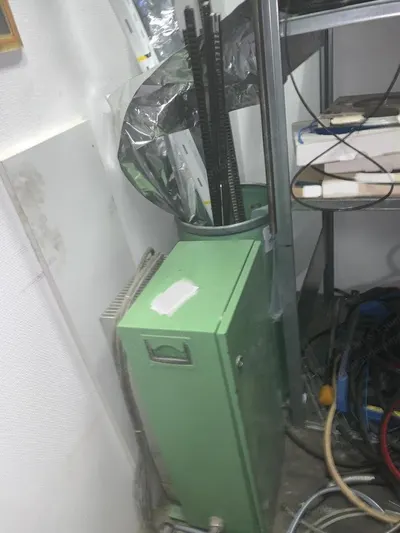

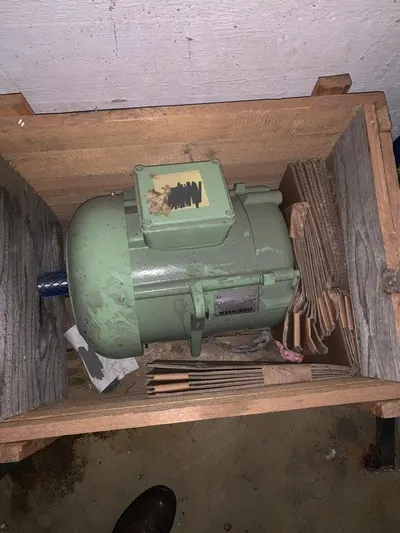

      4. 01 new/unused main motor for Dornier HTV
