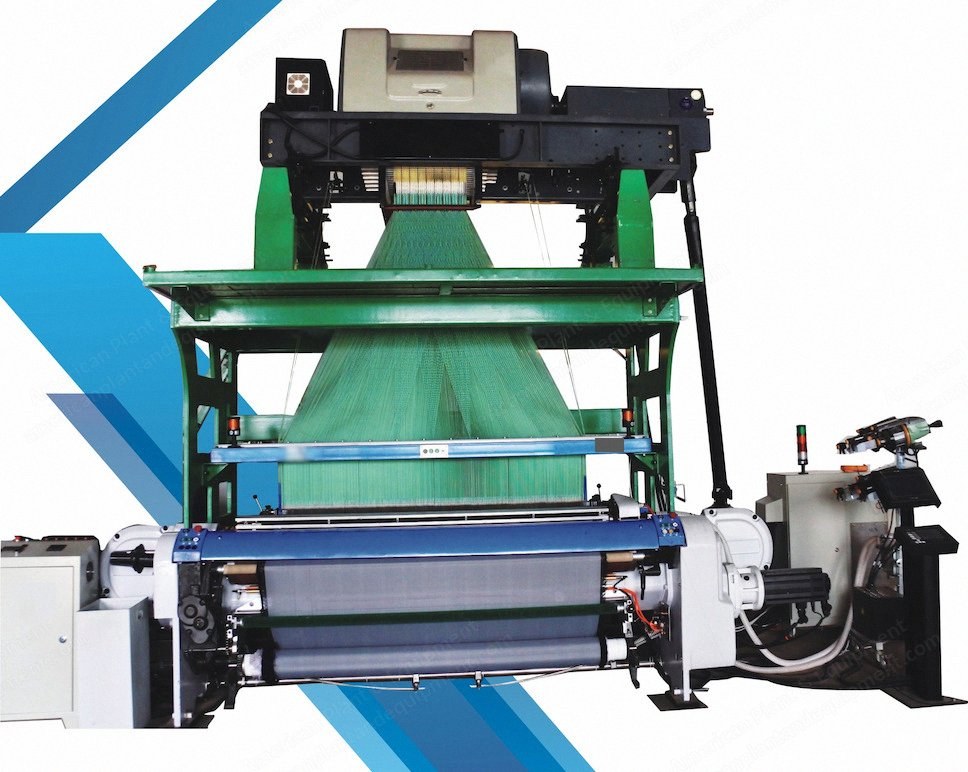

NovaStar, WM426, New, High Speed Rapier Loom, 1700-3400mm Reed Width, 4-8 Colors (New)

NovaStar, WM426, New, High Speed Rapier Loom, 1700-3400mm Reed Width, 4-8 Colors

Description

  1. Overview
    1. Conjugate cam beating-up system for wide weaving scope, from high-density fabric to light fabrics such as silk.
    2. Weft insertion system incorporates self-contained propeller weft insertion for stable weft transition.
    3. Rapier gripper designed lightweight high strength for high-speed operation.
    4. Electronic take-up and let-off system uses synchronous positive type electronic control for constant warp tension.
    5. Main moving parts use a circulating oil supply system for easier maintenance.
    6. Machine circuit uses redundant design for very low electronic failure rate.
  2. Specifications
    1. Reed width: 1700, 1900, 2100, 2300, 2600, 2800, 3200, or 3400 mm.
    2. Yarn range: cotton and man-made fiber yarn 500 tex (1.2 Ne) to 5 tex (120 Ne); slub and worsted 680 tex (1.5 Nm) to 10 tex (100 Nm); filament 10 dte (9 Td) to 1650 dte (1500 Td); fabric weight 20 to 850 gsm.
    3. Weaving speed: 300 to 650 rpm (dobby machine).
    4. Weft selection: 4 to 8 color, electronic selection.
    5. Feeder: Sanhe or Iro (4 heads and 8 heads).
    6. Weft cutter: mechanical.
    7. Power: 7.5 kW (super direct motor).
    8. Drive control: all the clutch, three-phase ac motor.
    9. Shedding: cam dobby (positive cam motion) – 8 frame maximum; high speed electronic dobby – 20 shaft maximum; electronic jacquard – 1408/1152/2688 hooks and so on.
    10. Beating: conjugated cams of both side drive sley.
    11. Weft selection: the propeller weft insertion (new type special for high speed).
    12. Let off: servo electronic let off; flange diameter: Φ800, Φ1000 mm.
    13. Take up: servo electronic take up; cloth roll diameter: Φ600 mm maximum; pick density range: 2 to 200 picks per cm.
    14. Selvage: leno selvage both side tuck; if request: middle tuck.
    15. Lubrication system: using forced lubrication.
    16. Stop motion: warp yarn 6 to 8 lines electronic contact stop motion; weft yarn electronic high-sensitive inspection; stop display the panel show the stop reason, and 4-color stop light showing.
    17. Automatic: auto stop, auto pick-finding, cloth-fell, auto adjustment of warp tension, auto inspection, replacement, auto fault showing.
    18. Electronic control: system Siemens plc, touch screen operation, English panel available.
