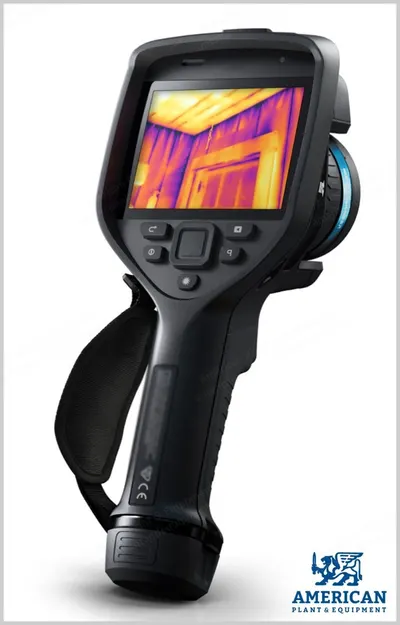

FLIR, E54 24°, Handheld Thermal Imaging Camera, 320x240 Pixels, 30 Hz

Name: FLIR, E54 24°, Handheld Thermal Imaging Camera, 320x240 Pixels, 30 Hz
Brand: FLIR
SKU: YY-1670

‹ Go Back Next Product ›

Description

Imaging And Optical Data
1. Infrared resolution: 320 × 240 pixels
2. Netd: <40 mk @ +30°c (+86°f)
3. Field of view: 24° × 18°
4. Minimum focus distance: 0.15 m (0.49 ft.)
5. Minimum focus distance with msx: 0.5 m (1.64 ft.)
6. Focal length: 17 mm (0.67.)
7. Spatial resolution (ifov): 1.31 mrad/pixel
8. Lens identification: automatic
9. F number: 1.3
10. Image frequency: 30 hz
11. Focus: manual
12. Field of view match: yes
13. Digital zoom: 1 to 4× continuous
Detector Data
1. Focal plane array/spectral range: uncooled microbolometer/7.5 to 14 μm
2. Detector pitch: 17 μm
Image Presentation
1. Resolution: 640 × 480 pixels (vga)
2. Surface brightness: 400 cd/m²
3. Screen size: 4.
4. Viewing angle: 80°
5. Color depth: 24 bits
6. Aspect ratio: 4:3
7. Auto-rotation: yes
8. Touchscreen: optically bonded pcap
9. Display technology: ips
10. Cover glass material: dragontrail®
11. Programmable buttons: 1
12. Viewfinder: no
13. Image adjustment: automatic, automatic maximum, automatic minimum, manual
Image Presentation Modes
1. Infrared image: yes
2. Visual image: yes
3. Thermal fusion: no
4. Msx: yes
5. Picture in picture: centered infrared area on the visual image
6. Gallery: yes
Measurement
1. Camera temperature range: –20 to 120°c (–4 to 248°f), 0 to 650°c (32 to 1202°f)
2. Object temperature range and accuracy (for ambient temp. 15 to 35°c (59 to 95°f)): range –20 to 120°c (–4 to 248°f): –20 to 100°c (–4 to 212°f): ±2°c (±3.6°f), 100 to 120°c (212 to 248°f): ±2%; range 0 to 650°c (32 to 1202°f): 0 to 100°c (32 to 212°f): ±2°c (±3.6°f), 100 to 650°c (212 to 1202°f): ±2%
Screening Mode
1. Sampling average mode: recommended temperature range: 30 to 45°c (86 to 113°f) in stable room temperature; accuracy (drift): ±0.3°c (±0.5°f)¹
Inspection Mode
1. Inspection route: enabled in the camera
Measurement Analysis
1. Spotmeter: 3 in live mode
2. Area: 1 in live mode
3. Automatic hot/cold detection: auto-maximum/minimum markers within area
4. Measurement presets: no measurements, center spot, hot spot, cold spot, 3 spots, hot spot–spot
5. Difference temperature: yes: as preset (hot spot–spot)
6. Reference temperature: yes: in preview mode
7. Emissivity correction: yes: variable from 0.01 to 1.0 or selected from materials list
8. Measurement corrections: yes
9. External optics/windows correction: yes
Alarm
1. Color alarm (isotherm): above, below, interval, condensation (moisture/humidity/dewpoint), insulation
2. Measurement function alarm: audible/visual alarms (above/below)
Set-Up
1. Color palettes: arctic, white hot, black hot, iron, lava, rainbow, rainbow hc
2. Setup commands: local adaptation of units, language, date and time formats
3. Languages: 21
Service Functions
1. Camera software update: using usb cable or sd card
Storage Of Images
1. Storage media: removable memory; sd card (8 gb)
2. Remote control operation: using usb cable or wi-fi
3. Image file format: standard jpeg, measurement data included. infrared-only mode
Video Recording In Camera
1. Radiometric infrared-video recording: rtrr (.csq)
2. Non-radiometric infrared-video recording: h.264 to memory card
3. Visual video recording: h.264 to memory card
Video Streaming
1. Radiometric infrared–video streaming (compressed): over uvc
2. Non-radiometric video streaming (compressed: ir, msx, visual, picture in picture): h.264 (avc) over rtsp (wi-fi), mpeg4 over rtsp (wi-fi), mjpeg over uvc and rtsp (wi-fi)
3. Visual video streaming: yes
Digital Camera
1. Resolution: 5 mp with led light
2. Focus: fixed
3. Field of view: 53° × 41°
4. Video lamp: built-in led light
Laser Pointer
1. Laser pointer: yes

Capacity	320 x 240 pixels
Field of View	24° x 18°
Image Frequency	30 Hz
NETD	<40 mK @ +30°C
