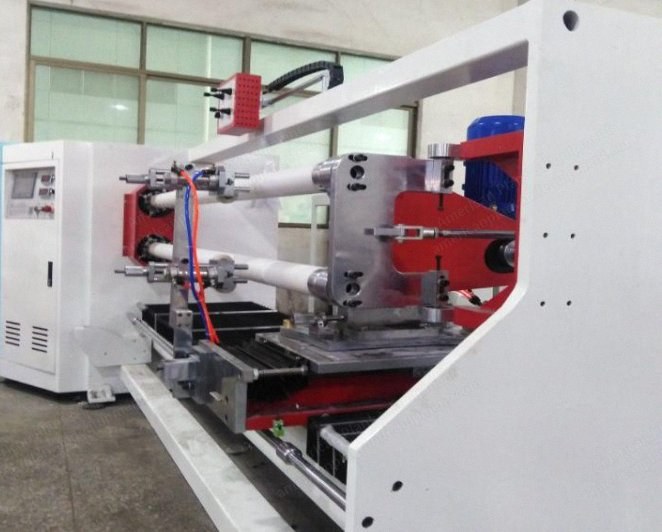

NovaStar, SR276, Automatic Cutting Machine, 1300/1600mm Working Width, 2 Shafts (New)

NovaStar, SR276, Automatic Cutting Machine, 1300/1600mm Working Width, 2 Shafts

Description

  1. Overview
    1. Suitable for BOPP, PVC, PE, PET, PI masking tape, double side tape, kraft tape, foam tape, cloth tape, and electrical tape.
  2. Features
    1. 30 mm armor plate and 20# u-steel for body frame; machine keeps stable under heavy load and high speed.
    2. PLC control unit: programmable central control, set data through touch screen, the machine can carry out the tasks automatically; various sizes can be set on the same shaft for automatic transfer and cutting.
    3. Operating panel: 7" color touch screen, all functions realized by human-computer interface.
    4. Cutting location system: position controlled by the servo motor, combined with Taiwan imported 30 mm high precision ball screw to set the cutting size, large linear slide rail to bear the load of the cutter seat.
    5. Cutting blade driven by servo-motor; AC motor for fast and steady decelerate and accelerate of disc blade feeding and shaft rotating.
    6. Auto adjusting of the circular blade angle: CNC control to calculate the circular blade angle and the angle change is subject to different materials (the angle change range is +/-8°); the cutting angle is changed directly when the cutting surface is not smooth, so the efficiency is improved.
  3. Specifications
    1. Effective work width: 1300/1600 mm are standard (1677 mm - no problem).
    2. Minimum cutting width: 0.5 mm.
    3. Inner core diameter: Φ76 mm to Φ77 mm (or other core size as request) (24 mm - no problem).
    4. Maximum cutting diameter: 140 mm for four shaft model, 180 mm for double shafts model, and 300 mm for single shaft model.
    5. Power supply: 220 volts, 60 or 50 Hz, 3-phase.
    6. Slit precision: ±0.1 mm.
