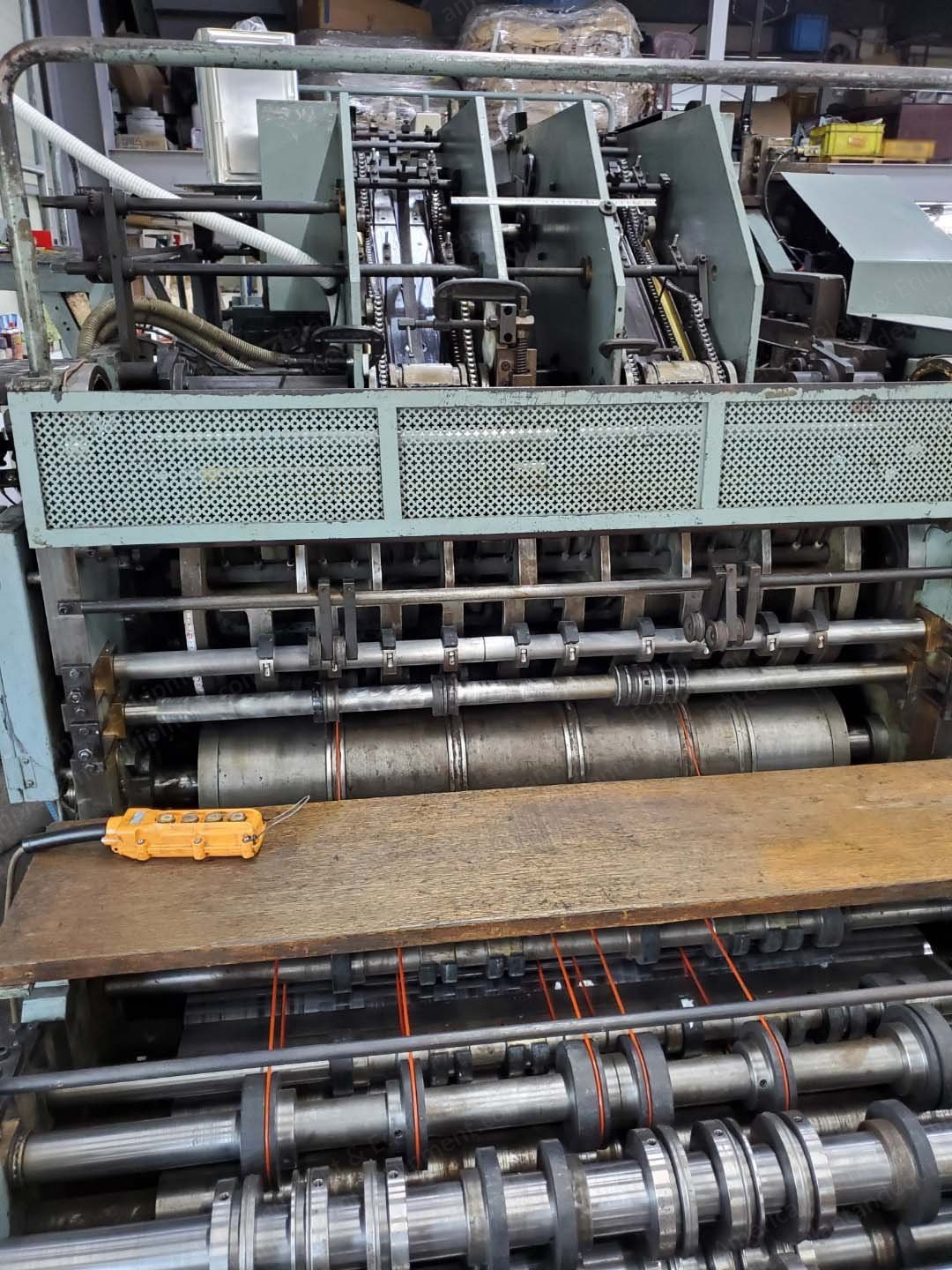

Tokyopack, SBH 35, 30 to 90 Bags per Minute, Max Paper Size 1050x600mm, 18.5 kW

Description

Overview

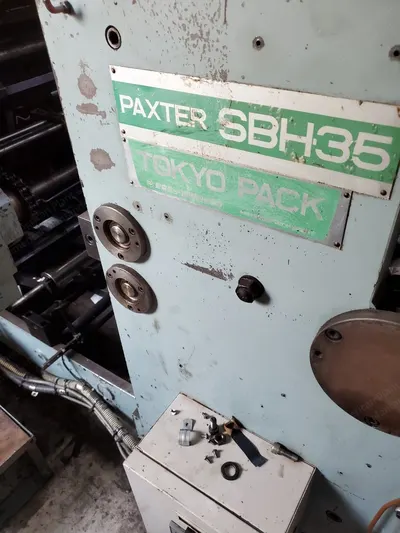

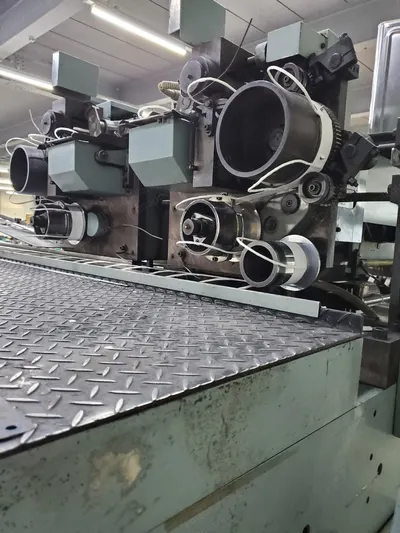

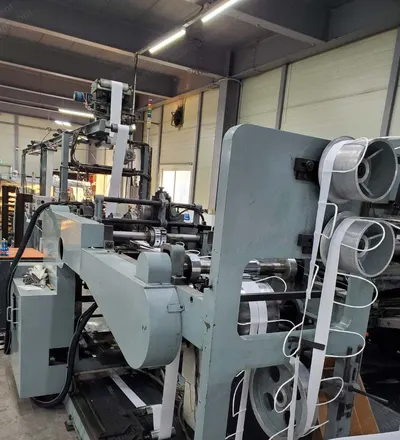

1. TokyoPack SBH 35 bag making machine
Paper Specifications
1. Paper size: maximum 1050 x 600 mm, minimum 600 x 400 mm
2. Paper weight: 100 to 135 g/m²
Bag Dimensions
1. Bag width: 260 to 350 mm
2. Bottom width: 60 to 160 mm
3. Tube length with handle: 340 to 560 mm
4. Bottom flap: 55 to 110 mm
5. Top folding: 40 to 60 mm
6. Bag width + bottom width: 320 to 510 mm
7. Width between gusset inmost of tube with handle: 155 mm

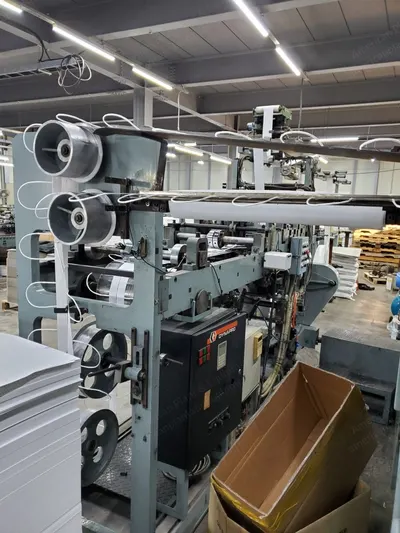

Carrying Handle Specification
1. Reel of cover paper: width 100 mm, diameter 1000 mm, weight 100 g/m²
2. Type and diameter of rope handle: round paper rope or round cloth rope with paper lead 4 mm diameter; PP twisted rope 8 mm diameter
3. Rope length: 374 to 394 mm
4. Cover paper size: 188.5 x 50 mm
Performance
1. Available capacity: 30 to 90 bags per minute
Power Requirements
1. Power required (including for hot-melt applicator 4.4): 18.5 kW
Dimensions
1. Machine dimensions L x W x H: 13.9 x 4.0 x 2.3 m
