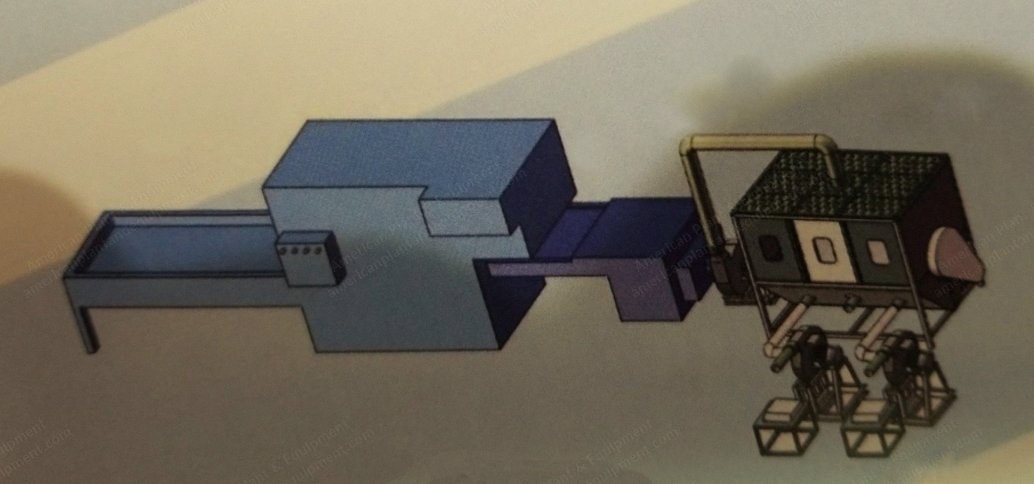

NovaStar, PC355, Fiber Opening, Mixing and Pillow Filling Line, 2 Filling Nozzles, 160 to 190 kg/h, 18.2 kW (New)

Description

  1. Overview
    1. New complete fiber opening, mixing and pillow filling line with 2 filling nozzles.
    2. 6 machines and 2 working tables: bale opener, fiber opener, fan feeder, mixing and storage box, 2 filling machines and 2 working tables.
    3. Opening capacity: 160 to 190 kg/h (353 to 419 lb/h).
    4. Filling capacity: 70 kg/h (154 lb/h) per filling machine, 2 filling machines.
    5. For filling pillows and cushions with fiber.
  2. Material Flow
    1. Fiber bales are loaded on the feed conveyor of the bale opening machine and pre-opened.
    2. The fiber opening machine cards and opens the fiber.
    3. The fan feeding machine blows the opened fiber through a duct into the mixing and storage box.
    4. The mixing and storage box blends and stores the fiber and feeds both filling machines.
    5. Each filling machine blows fiber through its nozzle into the pillow or cushion cover, with foot pedal control.
    6. Operators fill at a working table next to each filling machine.
  3. Fiber Bale Opening Machine (1)
    1. Dimensions (L x W x H): 5100 x 1500 x 2500 mm (200.8 x 59.1 x 98.4 in)
    2. Capacity: 75 to 350 kg (165 to 772 lb) per load
    3. Power: 3.75 kW (5.0 hp)
    4. Weight: 2500 kg (5,512 lb)
  4. Fiber Opening Machine (1)
    1. Dimensions (L x W x H): 2150 x 1150 x 980 mm (84.6 x 45.3 x 38.6 in)
    2. Capacity: 160 to 190 kg/h (353 to 419 lb/h)
    3. Belt width: 790 mm (31.1 in)
    4. Power: 6.25 kW (8.4 hp)
    5. Net weight: 800 kg (1,764 lb)
  5. Fan Feeding Machine (1)
    1. Dimensions (L x W x H): 610 x 520 x 800 mm (24.0 x 20.5 x 31.5 in)
    2. Power: 2.2 kW (3.0 hp)
    3. Net weight: 75 kg (165 lb)
  6. Mixing and Storage Box (1)
    1. Dimensions (L x W x H): 1900 x 1100 x 1700 mm (74.8 x 43.3 x 66.9 in)
    2. Power: 3 kW (4.0 hp)
    3. Net weight: 400 kg (882 lb)
  7. Filling Machine with Nozzle (2)
    1. Dimensions (L x W x H), each: 900 x 470 x 940 mm (35.4 x 18.5 x 37.0 in)
    2. Capacity: 70 kg/h (154 lb/h) each
    3. Power: 1.5 kW (2.0 hp) each
    4. Net weight: 100 kg (220 lb) each
    5. Compressed air: below 0.5 MPa (72.5 psi)
    6. Foot pedal operation
  8. Simple Working Table (2)
    1. Dimensions (L x W x H), each: 800 x 600 x 700 mm (31.5 x 23.6 x 27.6 in)
  9. Line Totals
    1. Installed power: 18.2 kW (24.4 hp)
    2. Machine weight: 3975 kg (8,763 lb), working tables not included
    3. Electrical: 480 V, 3 phase, 60 Hz US power; 230 V, 3 phase, 60 Hz on request
  10. Documents
    1. Line layout drawing with machine dimensions available.
