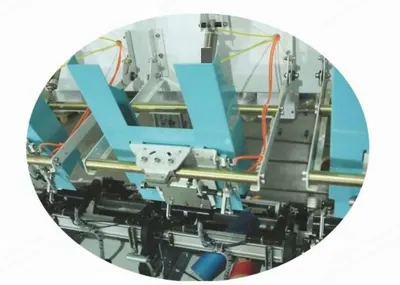

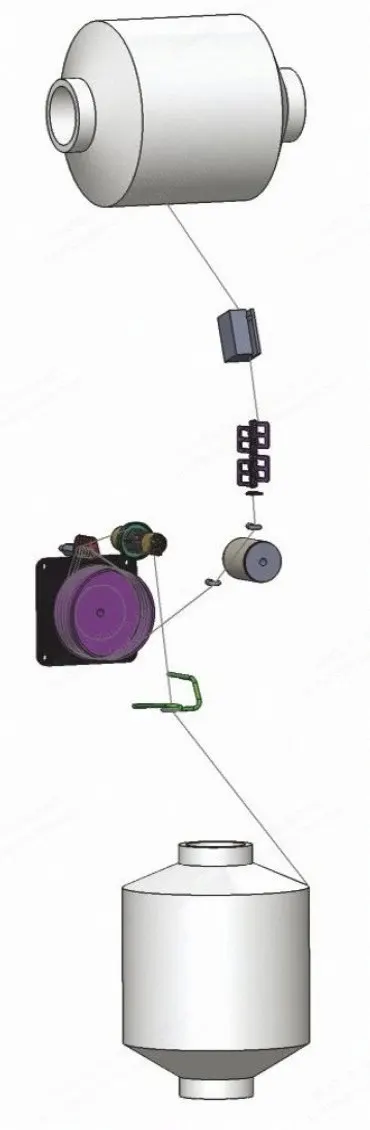

Electronic guide yarn forming, can be arbitrarily adjusted molding length, edge angle, edge amplitude, soft edge density, forming cross angle, winding tension and other related yarn quality structure.
The intelligent online expansion system, active unwinding yarn feeding system or automatic tracking of the over-feeding system, to ensure high density uniform.
Technical Parameters

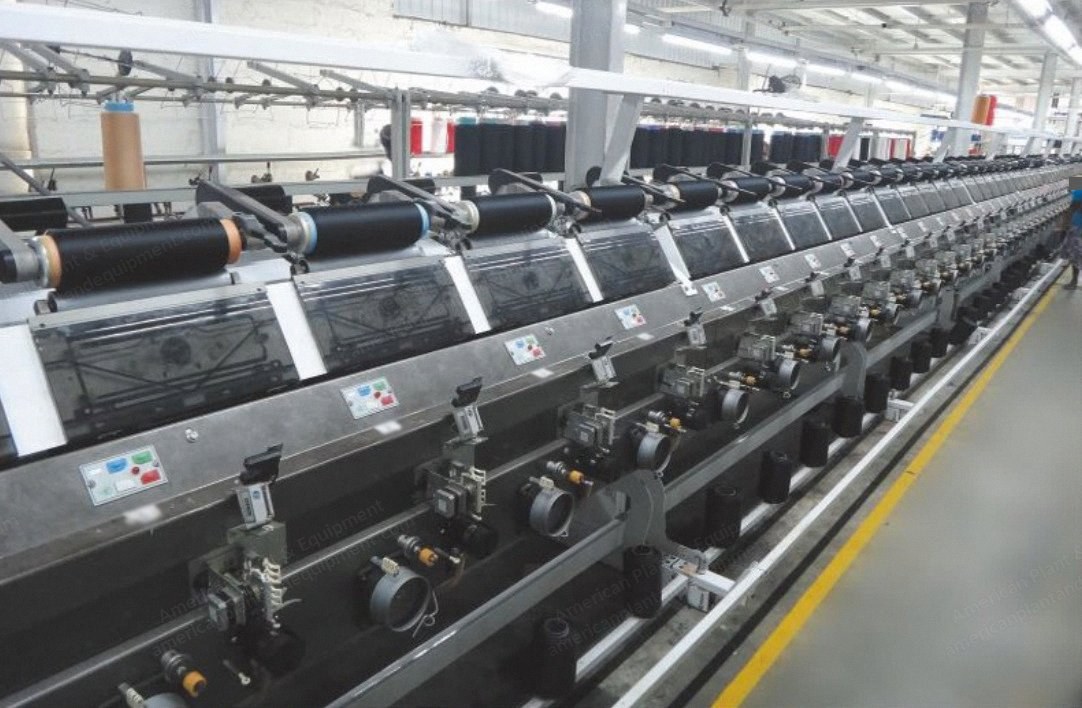

Machine structure: single size, single layer, 5 spindles per section, 10 sections, 50 spindles per set.
Spindle gauge: 430 mm.
Linear speed: up to 1100 m/min (depends on the process parameters).
Type of tension: electronic tension, electronic gate tension, heavy hammer gate tension (optional).
Take-up tubes: cylindrical or cone.
Traverse: 130 mm to 250 mm (it can be changed according to the actual situation).
Package shape: straight edge or incline edge shape (the angle can be adjustable).
Rate power: 300 W per spindle.
Optional Equipment
Automatic tube changing.
