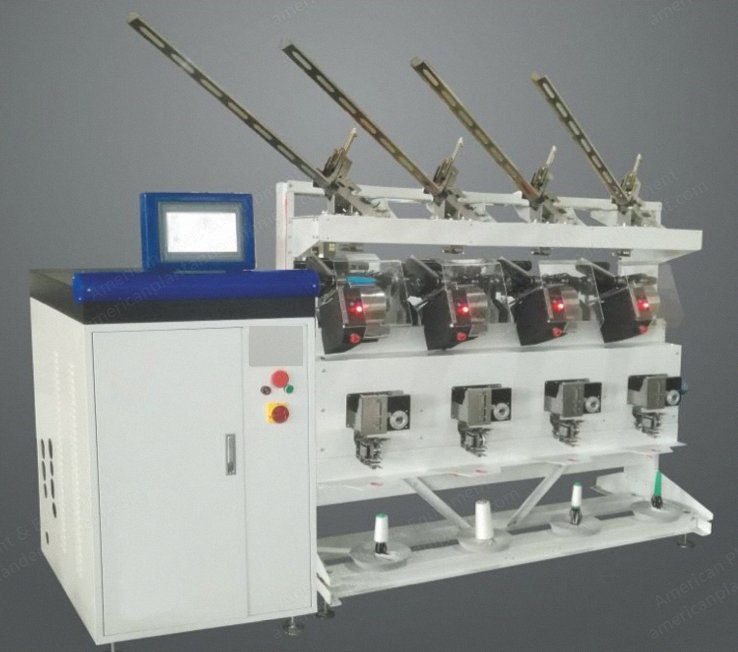

NovaStar, WN340, Precision Cross Winding, 460mm Spindle Gauge, Up to 1100m/min (New)

NovaStar, WN340, Precision Cross Winding, 460mm Spindle Gauge, Up to 1100m/min

Description

  1. Overview
    1. Used for a-tube, y-tube (king-tube), and cylinder tube production.
    2. Suitable for production requiring exchange of a variety of specifications.
    3. Mainly suitable for winding of spun sewing thread, corn spun, textured filament, industrial yarn, special yarn, and others.
  2. Features
    1. Intelligent and constant temperature oil feeding device.
    2. Can stop automatically when out of oil or oil shortage.
    3. Can follow the leaner speed to change the amount of the oil supply automatically, achieving accurate refueling and perfect oil amount.
  3. Specifications
    1. Machine structure: single side, single layer.
    2. Spindle gauge: 460 mm.
    3. Minimum / maximum number of spindles: 4/20 (maximum number of spindles per oil feeding system: 20).
    4. Type of winding: precision cross winding.
    5. Take-up tubes: a tube: cones (cones with conicity from 3° 30 to 5° 57’; cylindrical or cone king spool up to 2°; tip diameter ≥18 mm); y tube: king spool (cylindrical or cone king spool up to 2°; tip diameter ≥18 mm).
    6. Linear speed: up to 1100 m/min (depends on process parameters).
    7. Traverse: 76 mm to 152 mm (±3.5 mm, depends on tank size, certain limitations apply).
    8. Yarn count: up to 2200 D.
    9. Take up package diameter: up to 105 mm (85 to 105 mm, depends on tank size, certain limitations apply).
    10. Supply package diameter: up to 320 mm.
    11. Rated power: 300 W/spindle.
    12. Compression air: 6 PA.
  4. Type Configurations
    1. Type a dimensions: (image).
    2. Type b dimensions: (image).
    3. Type c: forming production of 2-inch cylinder tubes; tube diameter (inner hole): 10 mm x 60 mm.
    4. Type d: forming production of 2-inch y-tubes.
    5. Type e: electronic guide yarn forming production, adjustable at forming length and edge angle in the required range.
    6. Type f: (image).
