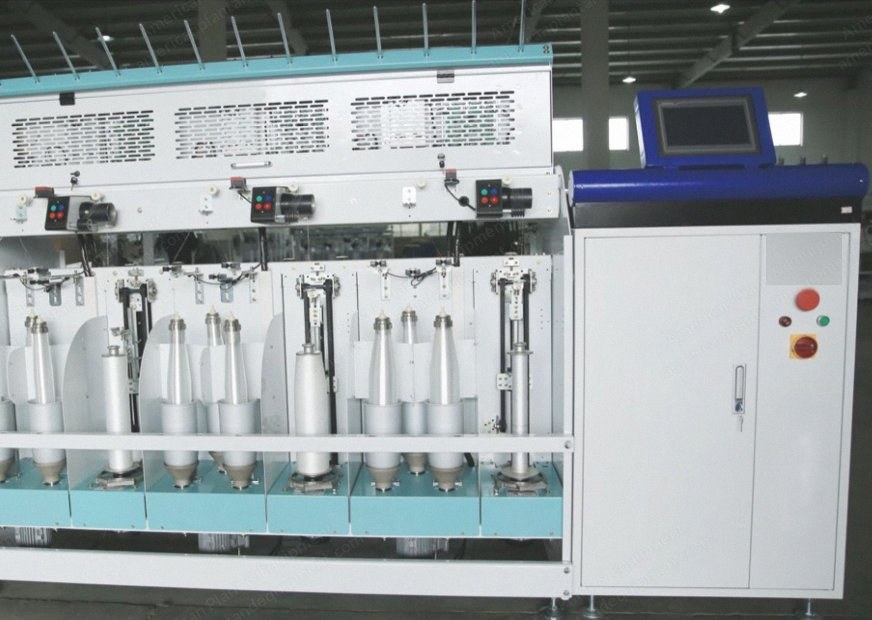

NovaStar, WN342, Initial and Retwist All-in-One Machine, 6 Spindles, 380mm/250mm Spindle Gauge (New)

NovaStar, WN342, Initial and Retwist All-in-One Machine, 6 Spindles, 380mm/250mm Spindle Gauge

Description

  1. Overview
    1. Applies to pp, nylon, polyester and other fiber filament and staple fiber 2 or 3 standards of the first twist, double twist one-time twist.
    2. Uses initial twist, double twist synchronization, the same layer design finishing twist, comfortable and convenient operation, is the best production plan of high-quality yarn.
    3. The whole machine is driven by a 36v dc motor, with low power consumption and greatly improve economic benefits.
    4. Promotes the design of round-the-clock yarn loading and doffing, which brings convenience to production and labor and improves production efficiency.
    5. The accurate speed control can ensure uniform twist, to make high-quality yarn.
    6. The independent single spindle twist control, drive, can be configured with broken line stop, length, measuring functions.
  2. Technical Parameters
    1. Machine structure: double-sided single layer, single spindle control, 6 spindled per set.
    2. Spindle gauge: first twist 380 mm, retwist 250 mm, total gauge 630 mm (it can be changed as needed).
    3. Range for fiber: filament 75d to 500d, short fiber 64s to 16s.
    4. Size of standard supply tube: 37 mm (inner diameter) x 46 mm (outer diameter); aluminum tube length can be selected according to the process.
    5. Standard traveler: diameter 133 mm (it can be changed according to the process).
    6. Traverse: 100 to 420 mm (it can be changed according to actual situation).
    7. Twist of yarn: 80 to 1000 twist/m.
    8. Winding tube size of retwist: standard 2 kg aluminum tube (optional according to process).
  3. Specifications
    1. Capacity: 6 spindles per set
