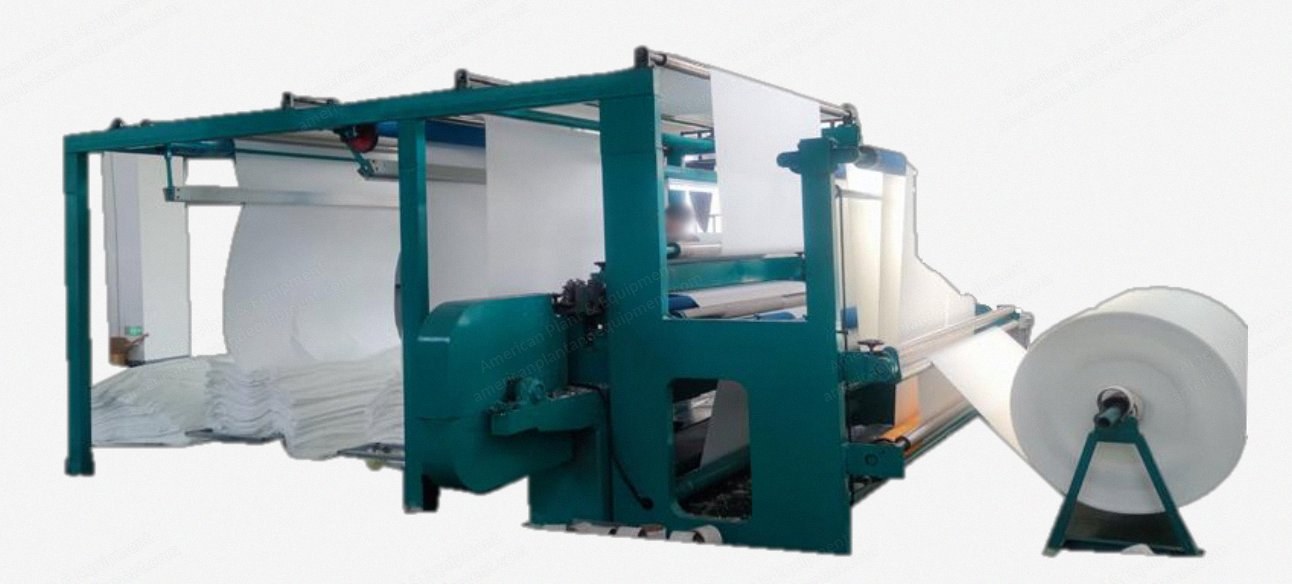

NovaStar, FN511, Working Width 2500mm to 3600mm, Thickness 3 to 42mm, 8.65kW (New)

NovaStar, FN511, Working Width 2500mm to 3600mm, Thickness 3 to 42mm, 8.65kW

Description

  1. Overview
    1. Suitable for wool, silk, acrylic, polyester and other natural fibers and synthetic fibers as raw material profile double velvet fabric pieces.
  2. Main Technical Parameters
    1. Width of profile cutting fabric: 2500 mm, 2800 mm, 3200 mm, 3600 mm
    2. Thickness of raising roller: 3 to 42 mm
    3. Rate profile speed: 0 to 12 m/min
    4. Profile cutter speed: ≤ 1800 m/min
    5. Power: 8.65 kW
    6. Overall dimension (L x W x H): 800 x 3400 x 2250 mm
  3. Blade Description
    1. Hardness of non-welded area is HRA 73-76, and the thickness difference is no more than 0.02 mm.
    2. Surface roughness shall not be greater than Ra6.
    3. Tensile strength of the welding area shall not be less than 1000 MPa.
    4. Unfolding length tolerance in free state is grade 1T16.
  4. Blade Sizes
    1. 12850 x 80 x 1.8 x (1) mm
    2. 12250 x 80 x 0.8 (1) mm
    3. 11850 x 80 x 0.8 (1) mm
    4. 11250 x 80 x 0.8 (1) mm
    5. 10950 x 80 x 0.8 (1) mm
    6. 10000 x 80 x 80 x 1 mm
    7. 9300 x 80 x 80 x 1 mm
    8. 9000 x 80 x 80 x 1 mm
    9. 8380 x 50 x 0.5 (0.6) mm
    10. 8130 x 50 x 0.5 (0.6) mm
    11. 7900 x 50 x 0.5 (0.6) mm
