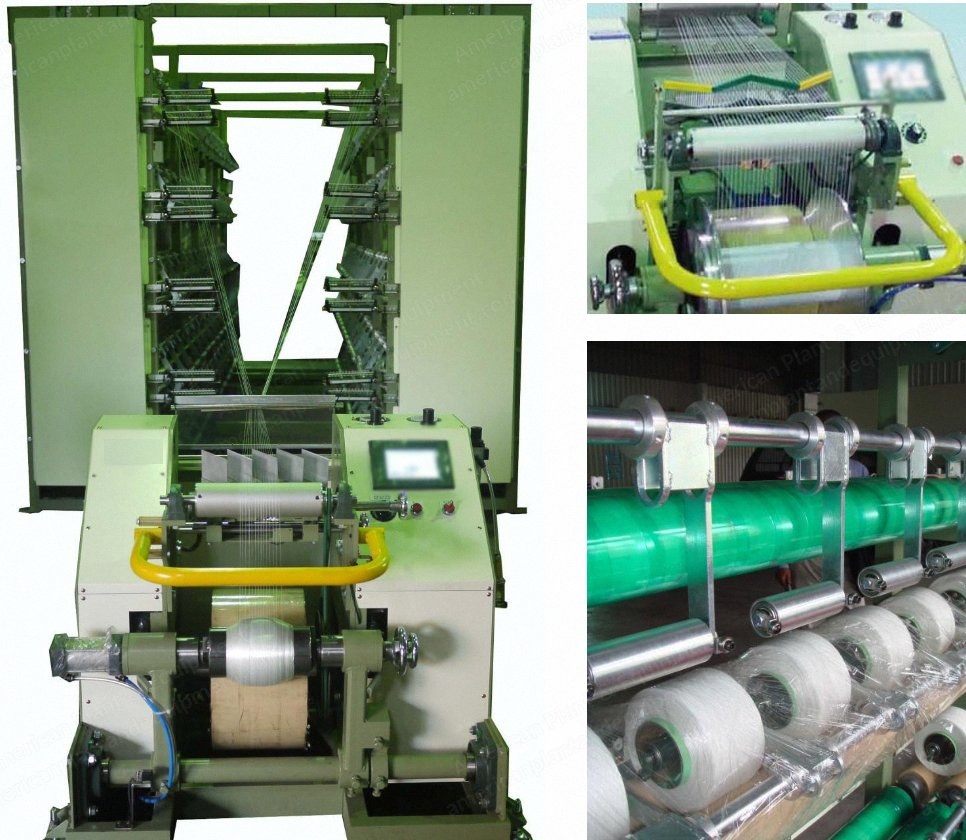

NovaStar, WS214, Rubber Thread Spandex Warping Machine, 14" x 255 Beam Size, 0-120 m/min Speed (New)

NovaStar, WS214, Rubber Thread Spandex Warping Machine, 14" x 255 Beam Size, 0-120 m/min Speed

Description

  1. Overview
    1. Used for high quality rubber thread preparation to improve weaving products such as elastic tapes, bra straps, and similar items.
    2. Machine includes a pressure roller and 2 roller shafts to feed the rubber.
    3. Designed for stable operation and high quality rubber thread warping.
  2. Suitable Materials
    1. Covered spandex rubber: 560D, 840D, 1120D, etc.
    2. Covered latex rubber: #89, #74, #64, etc.
    3. Bare rubber threads: 100D.
    4. Bare spandex threads.
  3. Machine Specifications
    1. Feed creel: 60, 80, 100, 120, 160, or 200 (according to inquiry).
    2. Beam size: 14” x 255 (350Ø flange) or 16” x 255 (400Ø flange).
    3. Speed: 0 to 120 m/min.
    4. Motor: AC (3+1 HP).
  4. Machine Composition
    1. Warper head: 1.
    2. Driver motor: 1.

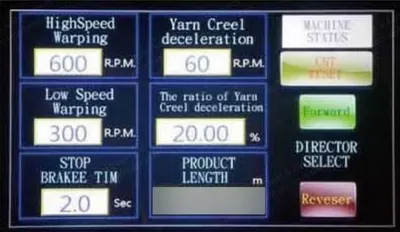

    3. Inverter control: 1.
    4. Extension reed device: 1.
    5. Drive drum roller: 1.
    6. Meter counter device: 1.
    7. Air pressure controller: 1.

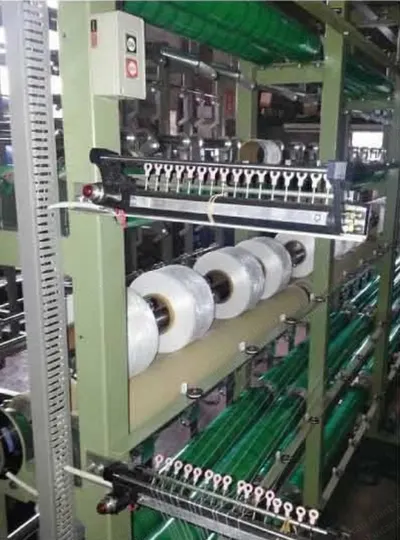

  5. Positive Rubber Feeding Creel

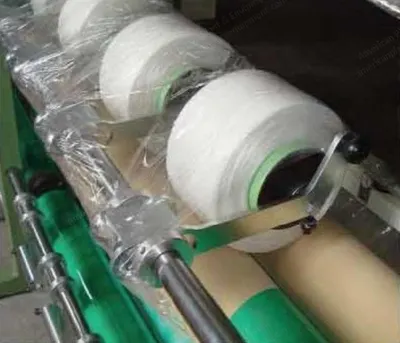

    1. Two rubber roller shaft bracket type with “cone press roller” unit.
    2. Drive by AC motor with inverter control.
    3. Speed synchronizer with potentiometer tension controller.
    4. Drive by timing belt with auto brake device.
