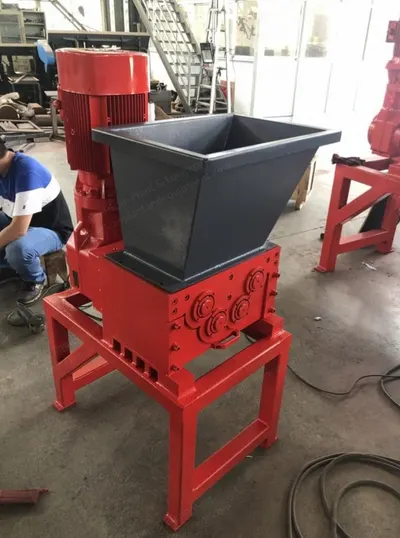

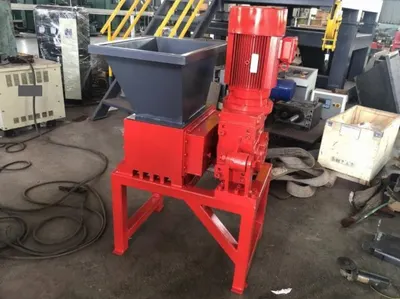

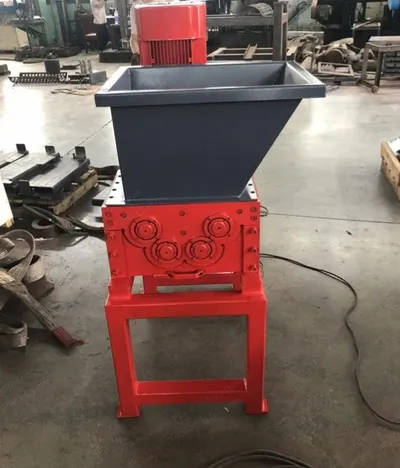

NovaStar, Four Shaft Shredder, S250, 3kW, 450mm Wide, 250x250mm Chamber

NovaStar, Four Shaft Shredder, S250, 3kW, 450mm Wide, 250x250mm Chamber

Description

  1. Overview
    1. Four shaft shredder
    2. Shredding chamber dimension: 250 x 250 mm (L x W)
    3. Motor power: 3 kW

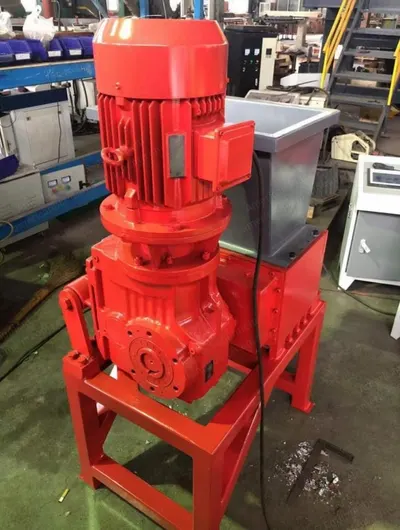

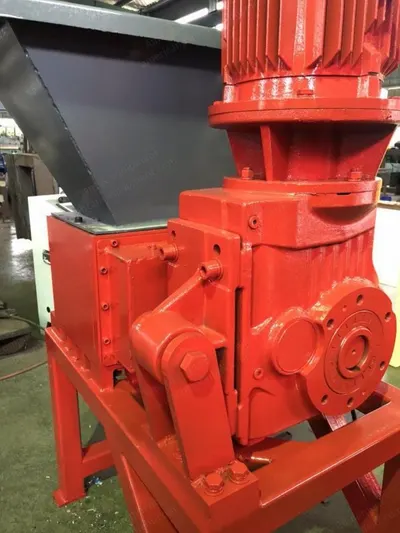

    4. Reducer: K/F97
    5. Main shredder body dimensions: 950 x 840 x 1570 mm (L x H x W)
    6. Gross weight: 500 kg
  2. Blade And Shaft Specifications
    1. Number of knives (up blade): 10 pcs, size Φ130 x 20 mm (OD x T)
    2. Number of knives (bottom blade): 10 pcs, size Φ130 x 20 mm (OD x T)
    3. Number of spacers: 20 pcs, size Φ80 x 20 mm (OD x T)
    4. Number of shafts: 4 pcs, size Φ60 x 450 mm (OD x T)
  3. Main Components
    1. Reducer: Tongli / Guomao
    2. Gear motor: Tongli / Guomao
    3. Electrics: Schneider
    4. Rotary blade material: AISI 4140, HRC 52-55
    5. Shaft material: 40Cr
    6. Main structure: No. 45 steel
    7. PLC: YKHMI
    8. Controller panel: screen
  4. Design And Structure
    1. Four shaft axis shredder features: composed of four sets of shredding blade, bearing box, box support, feeding system, power system and electrical control system.
    2. Independent intelligent control system enables each cutter roller to have independent crushing and protection actions, improving shear frequency and output.
    3. Main shaft responsible for shearing, auxiliary shaft for feeding; optimized shear structure and control principle for major breakthrough in crushing efficiency.
    4. Hydraulic and motor coordinated drive for large torque, flexible regulation, high efficiency and energy saving.
    5. Four-shaft composite cutting replaces traditional four-shaft for higher efficiency; optimized knife box force conduction design reduces vibration and strain.
    6. Reducer bearing block integral design to avoid frame distortion.
    7. European steel mill direct supply of knife, batch clear, stable quality.
    8. Alloy spindle with strict heat treatment, internal hexagon axial surface, surface hardening treatment, abrasion and impact resistance.
    9. German fast welding technology for fast maintenance, high hardness central lubrication system, PLC automatic lubrication.
  5. Advantages
    1. Easier to get into shredding, high efficiency compared with double shaft machine.
    2. Suitable for frame parts, no need to add auxiliary pressing mechanism.
    3. High blade has self-cleaning function for low blade.

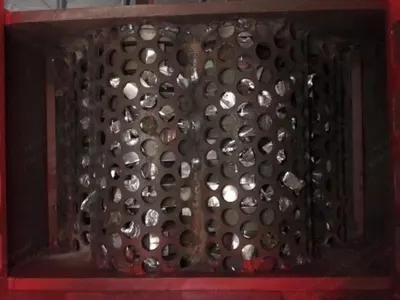

    4. Material size can be adjusted according to mesh aperture.
  6. Chamber Part
    1. Rotary blade, spacer, shaft (four pcs), and shredder chamber.
    2. Users can customize shredding machine cases of different sizes according to production requirements.

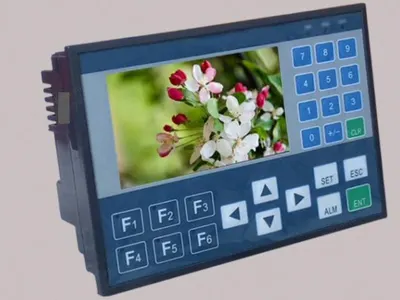

  7. Control Panel Details
    1. Combined screen + PLC normal type.
    2. Device automatically reverses when encountering jammed material, ensuring motor is not damaged due to load.
    3. Operation screen is easy to learn and practical.
  8. Applications
    1. Use for plastic, wood, metal, rubber, glass, etc.
  9. Shipping Package
    1. Export type plywood box.
