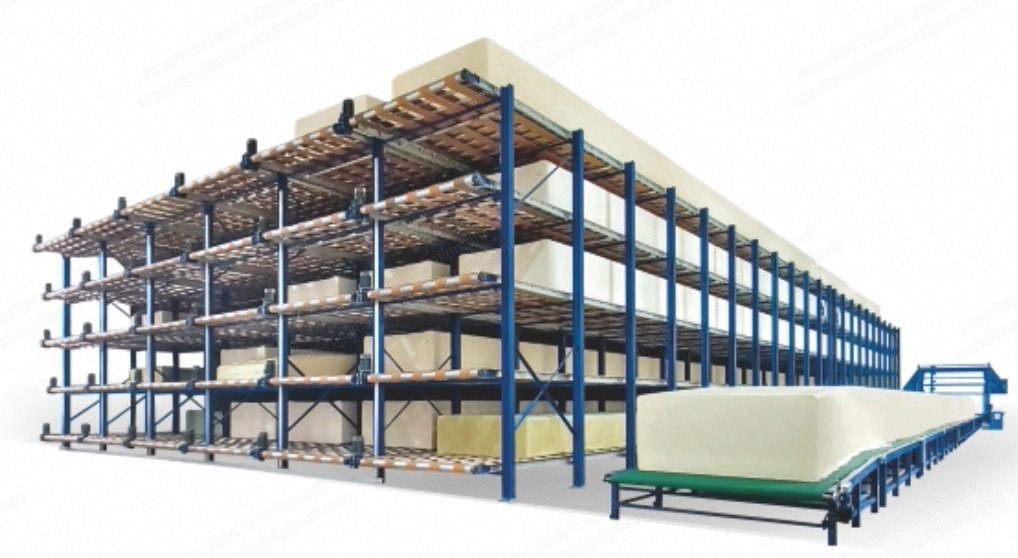

Description Overview Foam block rack storage system for storing uncured foam block after foaming and cutting off, and super soft foam that cannot be lifted by crane. Equipped with automatic movable conveyor line that can move left/right and up/down to connect to each conveyor rack of the system. Touch screen and PLC auto control allow foam blocks in the storage system to be moved in and out automatically. System aids the foam curing process, utilizes more storage space effectively under limited workshop space, and saves time and labor cost. Specifications Width: 2400 mm Height: 1200 mm Length: Customized Storage quantity: Customized Maximum conveyor belt speed: 22 meters per minute Conveyor movement speed: 20 meters per minute Conveyor worktable structure: Belt and roller Auto block cutter: Customized Dimensions: Conveyor width 2300mm, length 30mSystem type: First, first out (FIFO)Max block size: 2300x2300mm (with rotation table) or 3050x2200mm (with movable conveyor)
