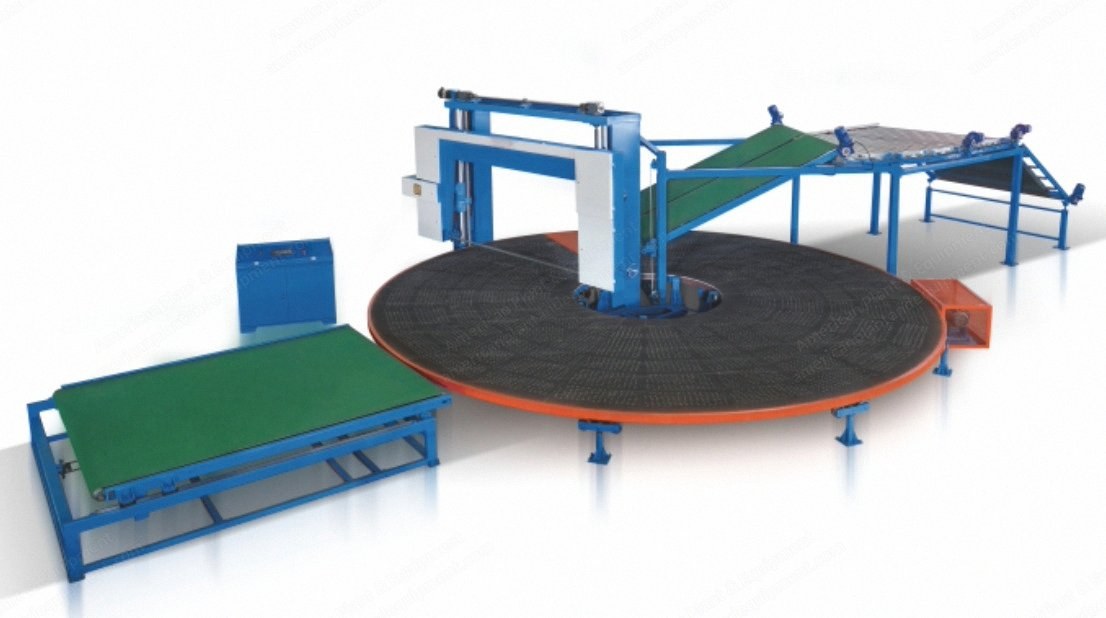

NovaStar, FN515, Automatic Carrousel Splitting Machine, 7800mm Diameter, 1200mm Cut Height, 30kW (New)

NovaStar, FN515, Automatic Carrousel Splitting Machine, 7800mm Diameter, 1200mm Cut Height, 30kW

Description

  1. Overview
    1. Touch screen and PLC auto control system
    2. Cuts several foam blocks at the same time
    3. Automatic foam block loading conveyor
    4. Automatic foam sheet takeoff conveyor system
    5. Blade height and takeoff conveyor are synchronized with servo system control
  2. Specifications
    1. Maximum cut foam size: L 2100 x W 2100 mm (4 blocks)
    2. Maximum cutting height: H 1200 mm
    3. Cutting thickness: 2 to 150 mm
    4. Cutting speed: 0 to 90 m/min
    5. Worktable diameter: 7800 mm (25.5 feet)
    6. Suction unit: yes
    7. Total power: 30 kW
    8. Machine size: L 15 meter x W 7800 mm x H 2800 mm (L 50 feet x W 25.5 feet x H 110 inches)
  3. Included Equipment
    1. Auto foam block loading conveyor: 1 set
    2. Auto foam sheet takeoff conveyor: 1 set
  4. Shipping
    1. Requires 1 40 foot high cube container to ship
