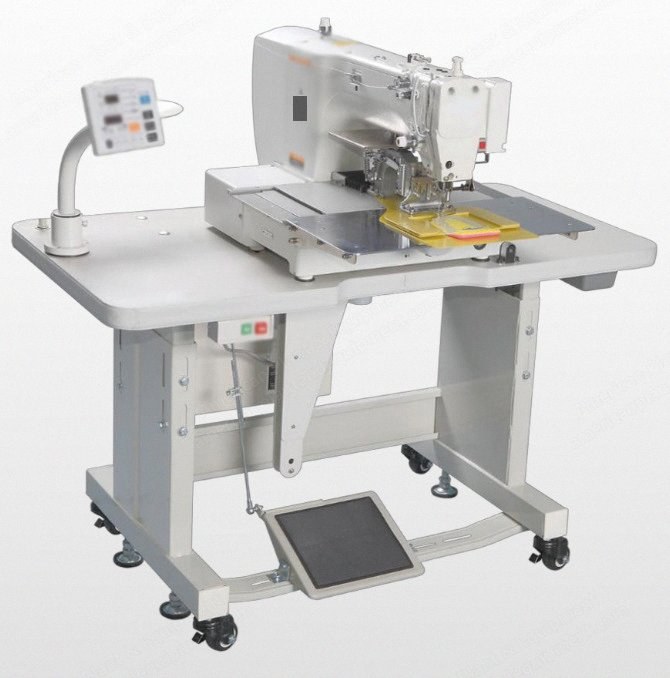

NovaStar, BW197, Computerized Pattern Sewing Machine, Single Needle, 150x100mm Work Area, 2700 RPM (New)

NovaStar, BW197, Computerized Pattern Sewing Machine, Single Needle, 150x100mm Work Area, 2700 RPM

Description

  1. Overview
    1. Larger sewing area.
    2. Pneumatic foot presser driving mode.
    3. Computerized pattern edit.
    4. High efficiency sewing, low noise.
    5. Increased needle penetration force.
  2. Specifications
    1. Sewing speed: maximum 2700 rpm.
    2. Maximum stitch: 20000 per pattern.
    3. Stitch length: 0.05 to 12.7 mm.
    4. Work area: 100/130/150 x 100 mm.
    5. Line: single needle sewing.
    6. Feeding device: intermittent feeding (pulse motor driven mechanism).
    7. Work clamp lifter driving mode: pulse motor driver.
    8. Clamp lifter: 2 steps, all in one.
    9. Clamp lifter ascensional range: 22 mm.
    10. Hook: double shuttle hook (Hirose Japan).
    11. Belt: Opti Germany.
    12. Sensor: Omron Japan.
    13. Valves: SMC Japan.
    14. Motor: Shinano Japan, AC 550 W.
    15. Tension device: electric tension device.
    16. Power: single phase 220 volts, triple phase 380 volts.
    17. Air pressure: 0.5 MPa, 1.8 liters per minute.
    18. Foot presser: pulse motor drive.
    19. Storage data: CF, USB, flash card.
    20. Software: included.
  3. Dimensions And Weight
    1. Packing: 1250 x 850 x 1350 mm.
    2. Net weight: 150 kg.
    3. Gross weight: 208 kg.
    4. CBM: 1.44 m³.
