NovaStar, DG575, Double-Head Fine Feather Washing Line, Five Chamber Sorting Machine, Mixing Machine (New)

NovaStar, DG575, Double-Head Fine Feather Washing Line, Five Chamber Sorting Machine, Mixing Machine

Description

  1. Double-Head Fine Feather Washing Line
    1. Stainless steel water washing machine, 4500 x 2200 x 2800 mm, quantity 2 sets.
    2. Water washing machine feather feeder, quantity 2 sets.
    3. Lower feather sieve plate, 17 m² with stainless steel frame, quantity 1 set.
    4. Dehydrator, model PS2000, quantity 2 sets.
    5. Dryer, 3500 model, 5500 mm x 2420 mm x 3270 mm, quantity 1 set.
    6. Dryer measuring feather feeder, 3500 model, stainless steel with electronic says, single head, quantity 1 set.
    7. Cooling machine, 3500 model, 5700 mm x 2520 mm x 2700 mm, inner diameter Φ 2000 mm, with a double chamber packing box, quantity 1 set.
    8. Installation charge, quantity 1 set.
    9. Cold water tank with bracket (optional), 10T model, automatically controls water level, quantity 1 set.
    10. Feather pump (optional), diameter 50 mm, quantity 1 set.
    11. Dryer insulation layer stainless steel (optional), quantity 1 set.
    12. Dryer fan with frequency conversion (optional), quantity 1 set.
    13. Cooling machine with screen automatic ash cleaning (optional), quantity 1 set.
    14. Cooling machine inside unpowered ash discharge (optional), quantity 1 set.
    15. Ash box unpowered ash loading in hopper (optional), cooler 16Φ 480 mm, quantity 1 set.
    16. Automatic detergent filling system, volume 25 kg, tolerance 0.3 kg, quantity 2 sets.
    17. Remote control, quantity 2 sets.
  2. Five Chamber Sorting Machine
    1. Five chamber sorting machine, model WF6000, quantity 1.
    2. Five chamber feather feeder, model 1T, quantity 1.
    3. Remote control, quantity 1.
    4. Installation charge, quantity 1.
  3. Mixing Machine
    1. Mixing machine, quantity 1.
    2. Remote control of PLC, quantity 1.
  4. Installation Tool and Spare Parts
    1. Installation tools, quantity 1.
    2. Spare parts, quantity 1.
  5. Technical Parameters and Configuration of Water Washing Machine
    1. Name: water washing machine.
    2. Total power: 22 kW.
    3. Material: 304 stainless steel.
    4. Size: 4500 mm × 2200 mm × 2800 mm.
    5. Feeding amount: 300 kg to 350 kg.

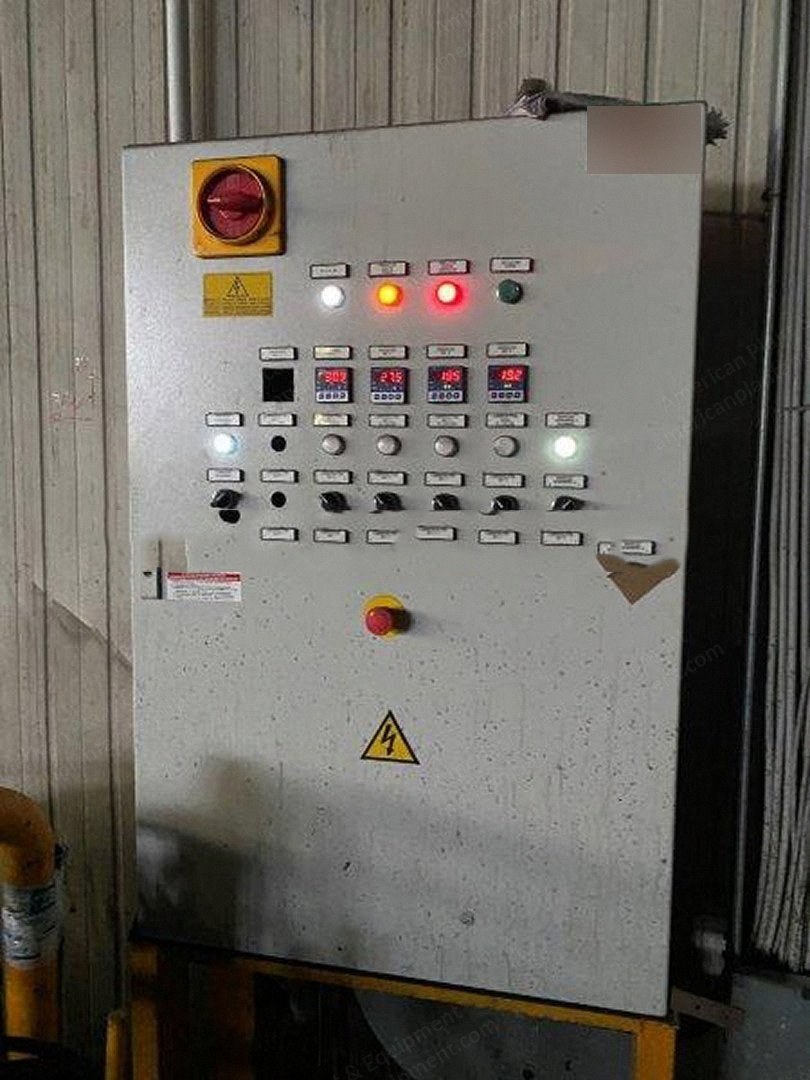

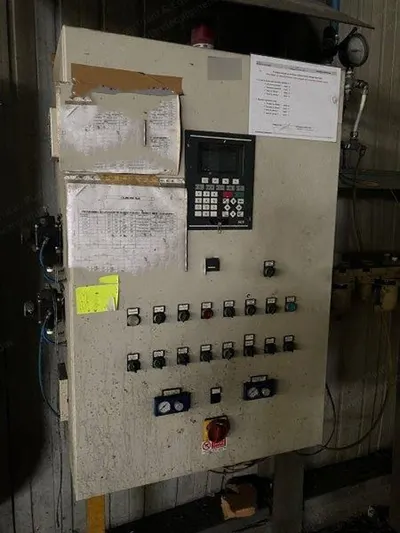

    6. Control mode: PLC + touch screen, automatic (with start device to prevent overload), manual control. Two washing machines share one stainless steel control cabinet.
    7. The wool hopper is made of stainless steel with a thickness of no less than 2 mm. The wool hopper can be turned around pneumatically.
    8. The main wall panel with 304 stainless steel, end plate thickness of 12 mm, body thickness of 5 mm.
    9. The spindle shall be made of no less than 159 x 25 seamless steel pipe and 6 mm stainless steel.
    10. Water inlet mode: tap water and medium water → water tank → water washing machine, water washing machine inlet DN150 stainless steel pipe, with stainless steel pneumatic disc valve.
    11. Feeding method: wool feeder.
    12. Main transmission mode: motor 22 kW + belt transmission + hard tooth surface reducer, motor bracket is stainless steel channel steel, and with stainless steel protective cover.
    13. The sieve plate is made of stainless steel, the coarse washing aperture is 1.8 mm thick 1.8 mm.
    14. Equipped with automatic measuring and filling detergent system.
    15. Each line with a diameter of 50 mm diaphragm pump recovery system, the leakage of the hair back to the washing machine.
    16. Ladder, platform, handrail, trough for stainless steel, all platforms with stainless steel skirting board.
    17. Water level control of water washing machine incorporates pressure sensor control, linear display and controls water level.
    18. The valves of the washing machine are made of stainless steel, and the inner shaft of the cylinder is made of stainless steel.
    19. The water stop ring between the main shaft bearing frame and the washing machine, and the bearing seat pad is 30 mm high, which is convenient for disassembly and maintenance.
    20. Remove 2.5 mm thick stainless steel pattern plate at the installation position of hair storage frame from the washing machine platform; the stair side panel is 2.5 mm stainless steel plate bent, and the pedal is 38 x 38 glass steel grating; railings 40 mm x 40 mm stainless steel square tube.
  6. Hot Water Tank
    1. Water tank size: effective capacity 10 m³.
    2. 304 stainless steel material, thickness: barrel body 3 mm, bottom 4 mm, cover 1 mm (with reinforcement).
    3. Automatic control of water level.
    4. Automatic control of water temperature.
  7. PS2000-N Plate Type Dehydrator Technical Parameters and Performance
    1. The inner liner and shell of the centrifuge are made of stainless steel, with a thickness of 5 mm, a diameter of 5.5 mm and a diameter of 1100 mm.
    2. With 22 kW 4 single-speed motor, 30 kW frequency conversion control cabinet.
    3. Equipped with small hat drum, drum using ZG35 casting steel 1213.
    4. Equipped with stainless steel high viscosity liquid damping damper (multi-point spring structure).
    5. Dimensions: 3300 mm × 2500 mm × 1350 mm.
    6. Dehydrator inlet with stainless steel round pipe safety protection net.
  8. Technical Parameters and Performance of Model 3500 Dryer
    1. Name: dryer (including pressure vessel certificate, installation notice, record, acceptance, etc., by the demander).
    2. Model: HG3500.
    3. Spindle power: 15 kW.
    4. Material: steel plate.
    5. Size (length x width x height): 5500 mm x 2420 mm x 3270 mm, plus base height 200 mm.
    6. Output: 100 to 150 kg per cycle.
    7. Control mode: PLC + touch screen, automatic and manual control, electric control cabinet shell is stainless steel.
    8. The use of pressure sensor and pneumatic ball valve control steam, internal thermometer, to ensure that the.
