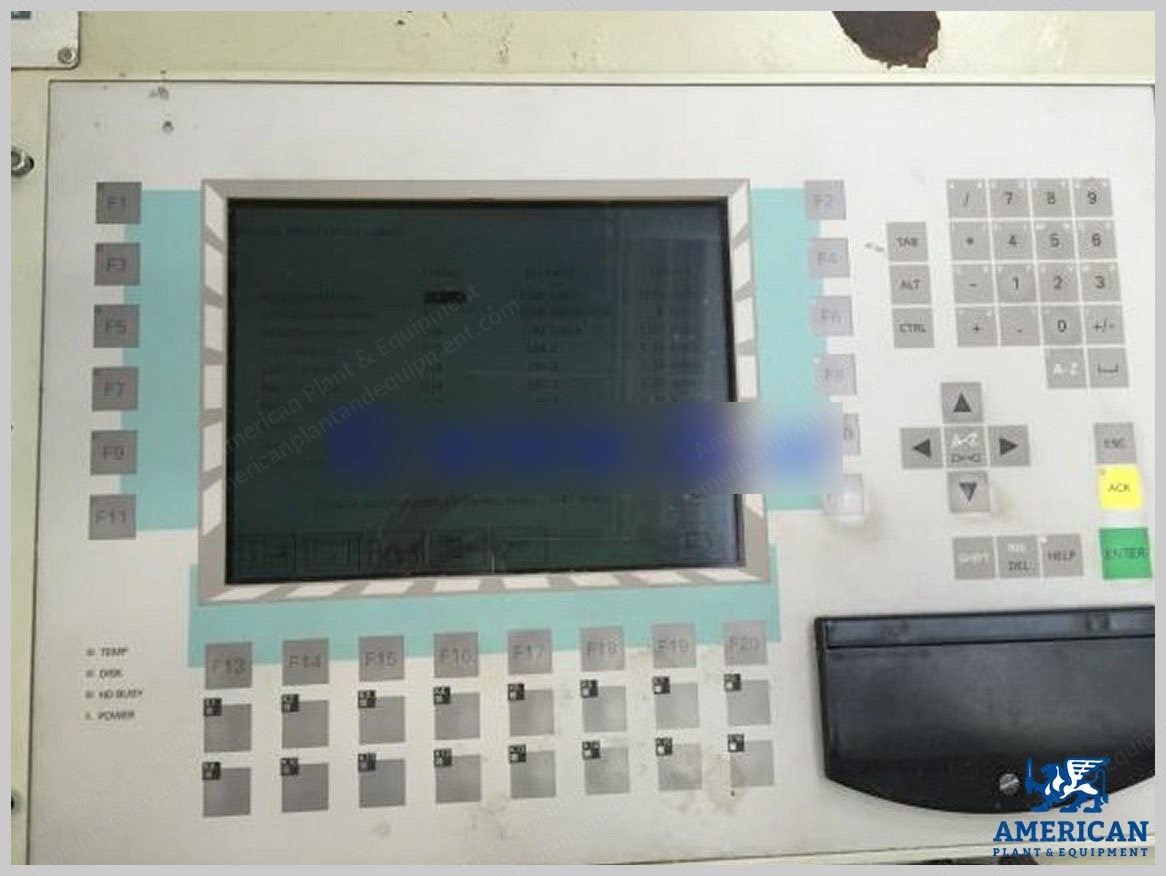

Trützschler, Hergeth, Schott & Meissner Thermobond Line, 1995, 2500mm Working Width, 300 kg/h Capacity

Trützschler, Hergeth, Schott & Meissner Thermobond Line, 1995, 2500mm Working Width, 300 kg/h Capacity

Description

  1. Overview
    1. Complete thermobonding line
    2. Year: 1995 to 1998
    3. Voltage: 380 volts, 3-phase, 50 Hz
    4. Maximum speed 15 meters per minute
    5. Capacity up to 300 gsm, throughput up to 300 kg per hour depending on type of fiber
    6. Currently running a blend of cotton and viscose

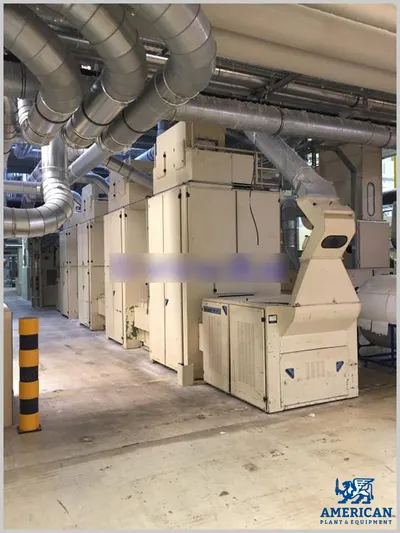

  2. Item 001 - Trützschler Pwse Weighing Towers
    1. Working width: 1200 mm
    2. With mechanical weight feeders
    3. Fed by condenser
    4. Quantity: 4
  3. Item 002 - Collection Belt
    1. Quantity: 1
  4. Item 003 - Trützschler Fm Tuftblenders
    1. One on each end of the conveyor belt
    2. Quantity: 2
  5. Item 004 - Magnet Trap
    1. Includes Tv425 fan and Trützschler Wc Weightcommander
    2. All equipment from 1995
    3. Quantity: 1

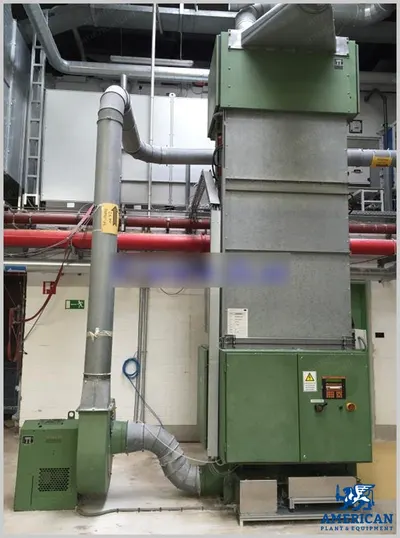

  6. Item 005 - Tfv4 Fine Opener
    1. 4 cylinders
    2. Working width: 1200 mm
    3. Including Be1200 feeding tower
    4. Fed by condenser and Tv425 fan
    5. Year: 1997
    6. Quantity: 1

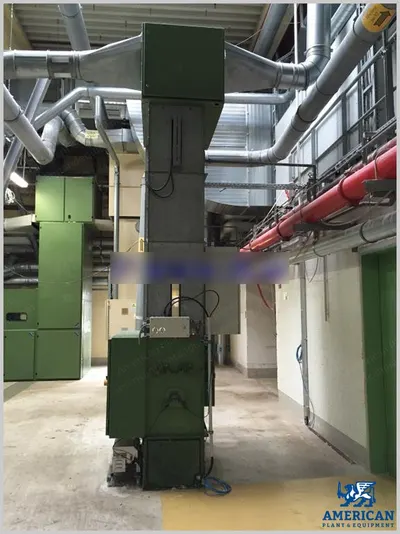

  7. Item 006 - Hergeth Fs/5 Feed Tower
    1. Working width: 1200 mm
    2. Year: 1995
    3. Fed by condenser
    4. Quantity: 1
  8. Item 007 - Hergeth Mc/W Masterchute
    1. Working width: 2500 mm
    2. Year: 1996
    3. Quantity: 1

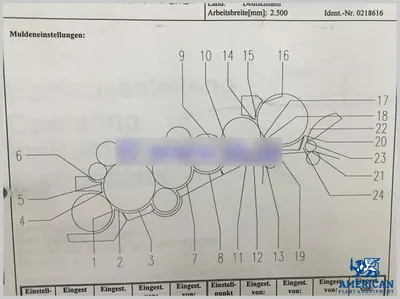

  9. Item 008 - Hergeth Card
    1. Working width: 2500 mm
    2. Year: 1995
    3. Includes also weighing belt, blowing fan and suction fan for aerodynamic web forming with turbo roll
    4. Quantity: 1

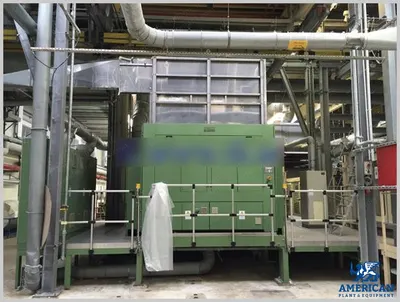

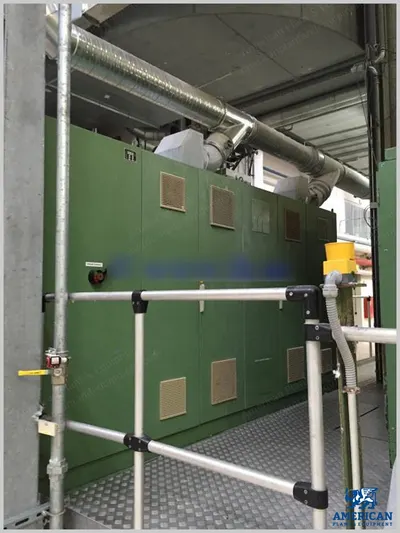

  10. Item 009 - Schott & Meissner Topcon Lp Oven
    1. Working width: 2500 mm
    2. Year: 1995
    3. Gas heated
    4. Single burner up to 350 kW
    5. Circulation fan 15 kW or 15,000 m³ per hour
    6. Including cooling chamber with separate exhaust fan
    7. Double belt - maximum gap 20 mm
    8. Quantity: 1

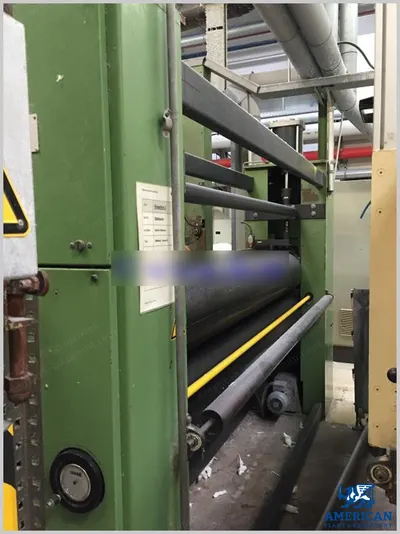

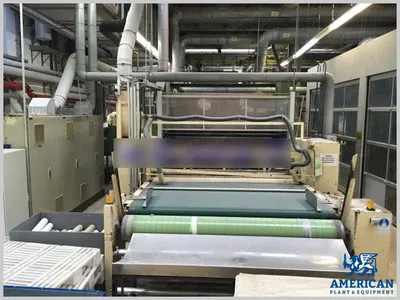

  11. Item 010 - Schott & Meissner Smoothing Calender
    1. Working width: 2500 mm
    2. Year: 1998

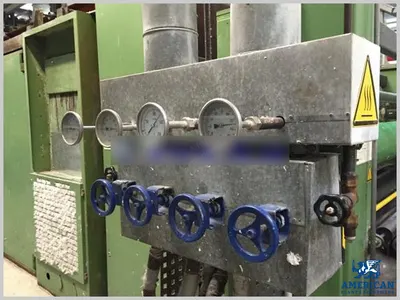

    3. Pressure 4 tons on full width, thermo-oil heated (boiler not included)
    4. 2 cylinders, fabric guiding with two guide rollers for s-guiding as well as feed table for tensionless infeed
    5. Quantity: 1

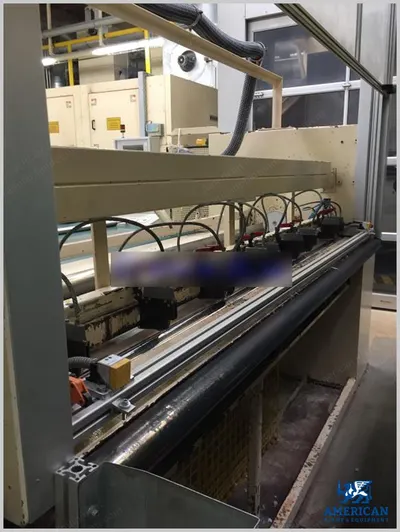

  12. Item 011 - Schott & Meissner Slitter And Cross-Cut
    1. Working width: 2500 mm
    2. Year: 1995
    3. Including 10 circular knives
    4. Cross-cut with 130 mm diameter circular blade
    5. Selvedge suction on both sides with central opening fan
    6. Quantity: 1

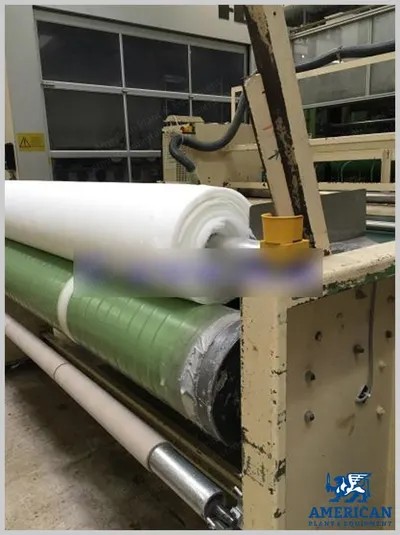

  13. Item 012 - Schott & Meissner Inclined Batch Winder
    1. With one driven roll and one driven belt
    2. Working width: 2500 mm
    3. Year: 1998
    4. Maximum winding diameter 1500 mm
    5. Quantity: 1
