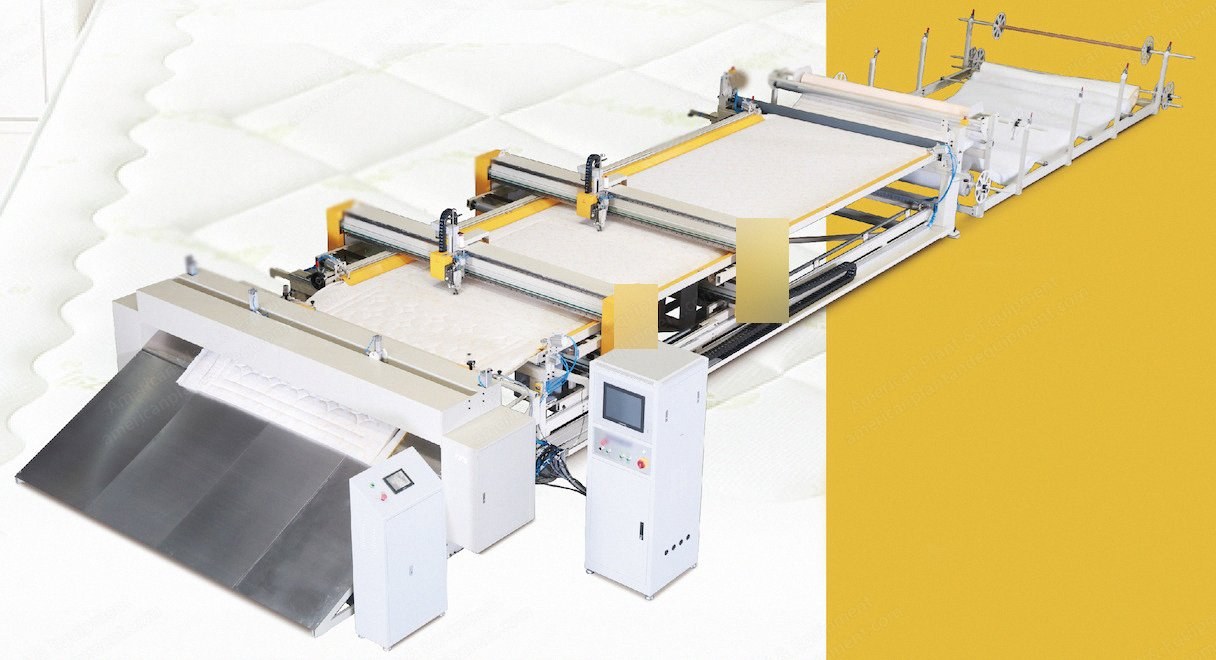

NovaStar, QL272, Double Saddle, Fabric Width 1500 to 2800mm, 3000 RPM (New)

NovaStar, QL272, Double Saddle, Fabric Width 1500 to 2800mm, 3000 RPM

Description

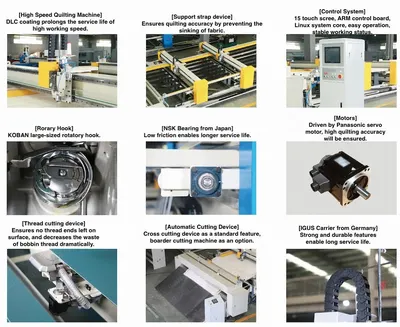

  1. Overview
    1. Working Speed maximum 3000 rpm.
    2. Double Saddle Structure enableS 2 Same pieceS to be finiShed at Same time So aS to double productivity.
    3. Automatic material feeding, delivering, quilting and cutting functionS are fully integrated in one machine.
    4. The lifting head can be lifted to 100 mm, which can be widely uSed in fabricS of different thickneSS.
    5. The Structure iS uSed in upper and lower quilting head, and equipped with jumbo Size rotary hook box.
    6. Special deSigned fabric clamping device and Support StrapS minimize the fabric under clamperS and enSure high quilting accuracy.
    7. Automatic needle thread cutting SyStem and atomized lubrication SyStem.
    8. Thread breaking alarm SyStem, bobbin thread counting function.
    9. Sew up function, faSt forwarder function and faSt reverSe function.
    10. Automatic thread breaking repoSitioning SyStem.
    11. With itS powerful and comprehenSive functionS, our profeSSional quilting Software offerS free deSign, edit and analog quilting functionS.
  2. Application
    1. Suitable for the Single head quilting patternS of mattreSS, duvet, blanket, mattreSS protector.
  3. SpecificationS
    1. Speed in maximum: 3000 rpm.
    2. Quilting thickneSS: 50 mm.
    3. Quilting Size: double Saddle can work at the Same time, the largeSt quilting Size of each Saddle iS 2300 mm x 2500 mm. The Space between 2 pieceS iS 0 to 300 mm.
    4. Needle range in maximum: 2300 x 5300 mm.
    5. Width of fabric: 1500 to 2800 mm.
    6. Stitch: 2 to 6 mm.
    7. Floor Space: 14750 x 5500 x 1700 mm.
    8. Power Supply: 220 voltS, 50 / 60 Hz.
    9. Working air preSSure: 0.6 MPa.
    10. Power: 8 kW.
    11. Voltage: 480V 3-PhaSe 50/60Hz
  4. Configuration
    1. Double Saddle Structure.
    2. Upper and lower quilting head with jumbo Size rotary hook box.
    3. Fabric clamping device and Support StrapS.
    4. Automatic needle thread cutting SyStem and atomized lubrication SyStem.
    5. Thread breaking alarm SyStem and bobbin thread counting function.
    6. Sew up, faSt forwarder and faSt reverSe functionS.
    7. Automatic thread breaking repoSitioning SyStem.
    8. ProfeSSional quilting Software with free deSign, edit and analog quilting functionS.
