NovaStar, MM164, PET Monofilament Production Line, 80 kg/h, 175 kW (New)

Details:

Supply Scope and Technical Specification:

Brands

Contactor: Siemens/Schneider
Temperature controller: Omron/RKC

Inverter: ABB

Advantage:
100% recycle PET flakes for PET filament

Great dehumidifying and crystallizing system

High quality PET final filament

I. Main Parameters

Production Line Parameters:

Fitting Brand:

II. Technical Data

1. Dry and dehumidify system with automatic uploading device

System Information

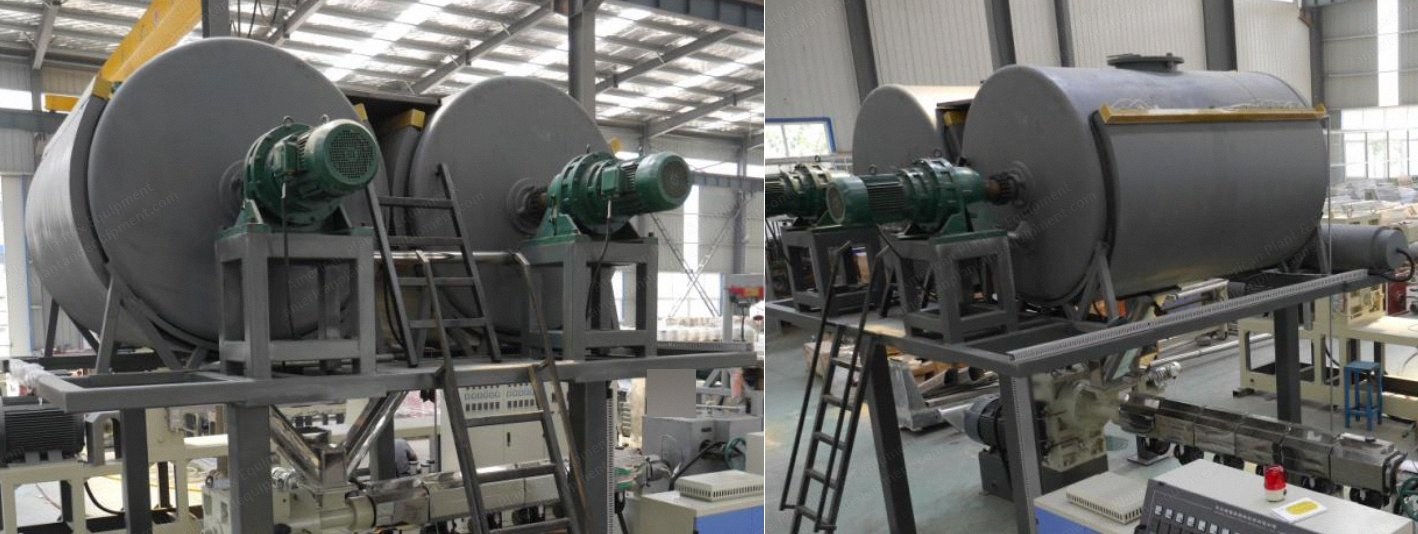

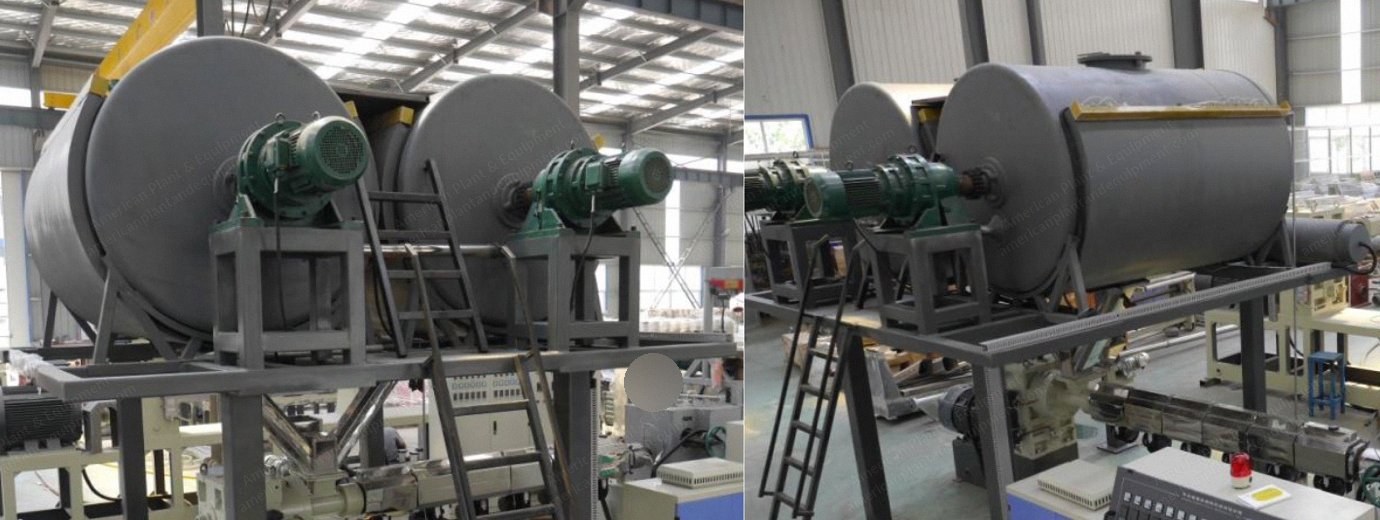

Dehumidifying and Crystallizing Equipment

Main Technical Parameters:

Drying chamber: 2 pieces

Drying quantity: 800 kg/set

Blender electrical power: 7.5 kW

Blower motor power: 2.2 kW

Heating power: 24 kW x 2

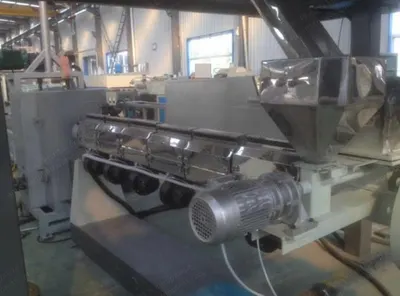

This machine is equipped with specialized reducer, and the gear and axial parts incorporate high strength alloy steel and are treated by the carburization, quenching, gear grinding and other workmanship, and are matched with super thrust bearing which has the traits of high bearing capacity, stable transmission, and excellent efficiency etc. The material of screw and barrel is 38CrMoAlA, nitriding treatment, lower noise, corrosion resistance, wear resistance. Barrel is cooled by wind, heated by cast aluminum heating circle. The whole machine is equipped with automatic temperature controlling switchboard, digital display intelligent temperature controller.

The screw is special design for PET strap, confirm strength.

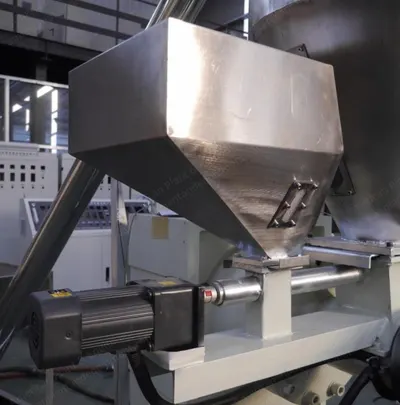

3.Side Dosing Unit

Performance Features:

Used to feed the color master-batch.Motor power: 0.55 kW, servo motor control

4. Hydraulic Screen Changer

It is composed of welding frame, hydraulic station,have the function of degassing.

5. Melt Pump

This met pump is used to control the pressure, this will keep the production stable and get good final quality.

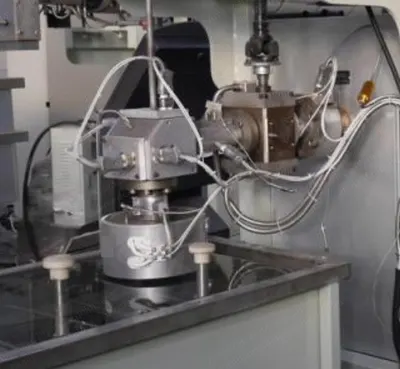

6. PET Filament Extrusion Die Head

7. Stainless Steel Water Tank Cooling System

8. Dry System

This unit is used to suck water from strap after cooling tank.

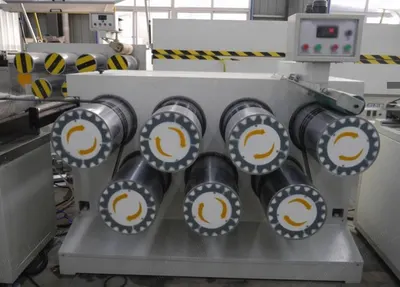

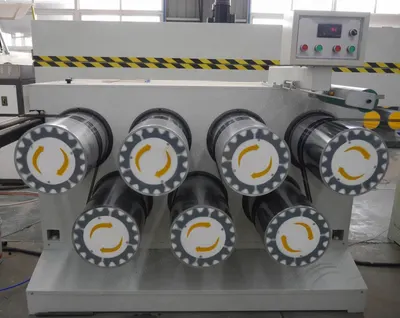

9.The First Seven Rollers Haul-Off

10. Water Heating Oven, 1 Set

It is used to heat and stretch the monofilament.
It consists of specific hot water tank, hot water and cold water auto-feeding system, hot water oven, monofilament guiding system, and water drying system.
Steel welded frame
Heating units and automatic temperature control system
Cover opened or closed controlled by air
High performance insulation layer, OMRON temperature meter
The water oven with auto temperature control system: once temperature reaches the one we setup, it will stop heating automatically; when the temperature is below the one we setup, it will heat again automatically.
The monofilament will be completely immersed in hot water.
All parts contact with water are made by 304 stainless steel.

Main Technical Parameters:
Length: 4000mm

Heating power: 18 kW
Heating mode: electric heating
Hot water pump: 3.7 kW

Water drying power: 3 kW

11. Water Suction Device

This unit is used to suck water from strap after cooling tank.

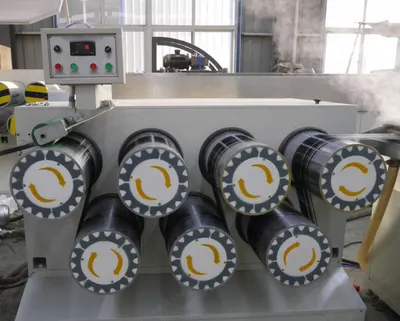

12. The Second Seven Rollers Haul-Off

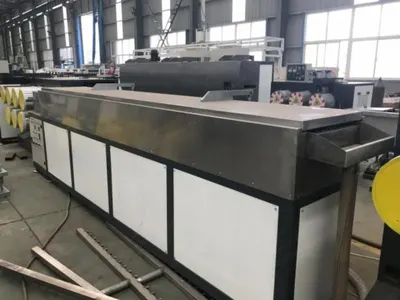

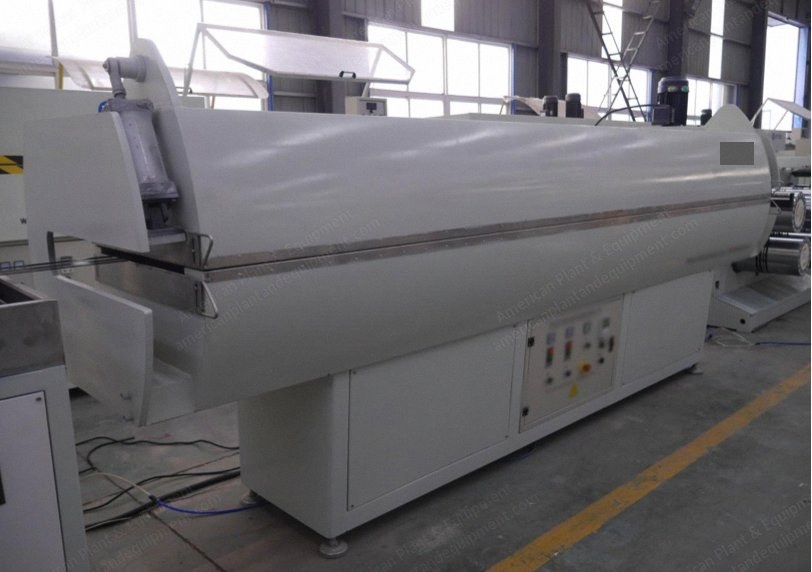

13. Heating Oven

It is used to heat and stretch the monofilament
Steel welded frame
Heating units and automatic temperature control system

Cover opened or closed controlled by air

High performance insulation layer

OMRON temperature meter
Blower motor power: 2.2 kW x 2sets

Wind volume controller by motor
AC motor, controlled by ABB inverter

14.The Third Seven Rollers Haul-Off

15. Glazing Machine, 1 Set

Power: 1.1 kW

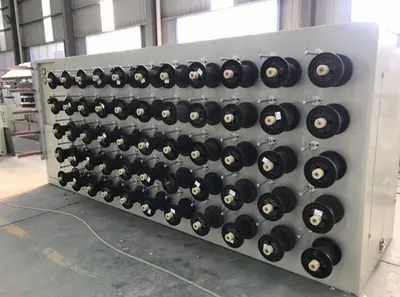

16. Winding Machine

Performance Features:

Spool type winding
Spool size: DIN200, DIN250

Position: 80; torque motor control

17. Electrical Cabinet, 1 Set

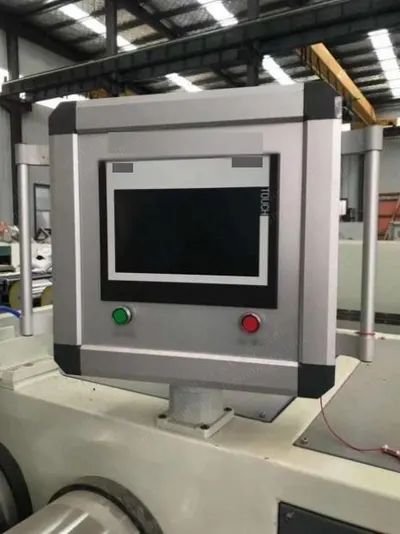

18. SIEMENS PLC Touch Screen for Synchronous Control
