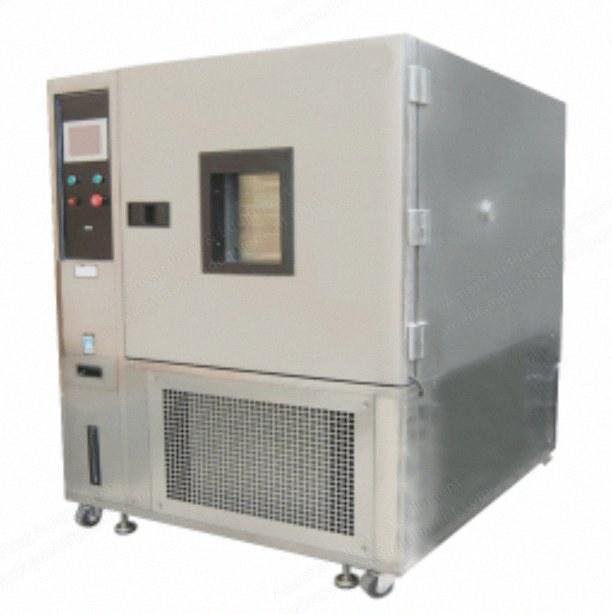

NovaStar, EC146, Constant Temperature and Humidity Test Chamber, 0 to 150 deg C, 20% to 98% RH, 50x60x50mm Inner Chamber (New)

NovaStar, EC146, Constant Temperature and Humidity Test Chamber, 0 to 150 deg C, 20% to 98% RH, 50x60x50mm Inner Chamber

Description

  1. Overview
    1. Constant temperature and humidity chamber is a microprocessor controlled unit for simulation of constant climatic conditions.
    2. The heat, cold, dryness and humidity endurance ensures accurate condition maintenance.
    3. The compact fluorescent lamp internal bulbs provide better visual assistance.
    4. Compressor overload switch and refrigerant high and low pressure protections ensure safe operation.
  2. Features
    1. Digital LCD screen for visual monitoring of data.
    2. Operational buttons for ease of accessibility.
    3. Humidity over temperature protection switch.
    4. Wet and dry bulb gauge.
    5. Malfunction indication by warning system.
    6. Tempered glass observation window.
    7. Anti-corrosive stainless steel structure.
  3. Specifications
    1. Temperature range: 0 °C ~ 150 °C.
    2. Humidity range: 20 % ~ 98 %.
    3. Heat up time: 4 °C / min.
    4. Cool down time: 1 °C / min.
    5. Temperature uniformity: ± 2.5 °C.
    6. Temperature accuracy: 0.1 °C.
    7. Humidity control accuracy: ± 0.1 % and ± 2.5 %.
    8. Dimensions (inner chamber): 50 × 60 × 50 mm.
    9. Dimensions (outer body): 105 × 175 × 108 mm.
    10. Weight: 220 kgs.
  4. Applications
    1. Used for the conditioning of many products prior to testing in quality control, electrical equipment, automobiles, metals, foodstuffs, chemistry, infrastructural materials, etc.
