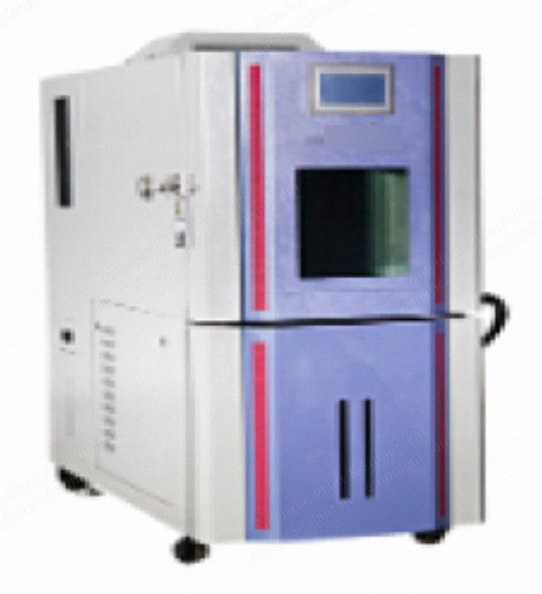

NovaStar, EC150, Temperature and Humidity Test Chamber, 150 L, -20 to 150C, 20% to 98% RH (New)

NovaStar, EC150, Temperature and Humidity Test Chamber, 150 L, -20 to 150C, 20% to 98% RH

Description

  1. Overview
    1. Temperature and humidity test chamber with a 150 L capacity
    2. Designed to meet comprehensive test conditions of temperature and humidity for testing product environmental adaptability
    3. Used in industrial and research institutes for paper, plastic, electronics, automotive, and pharmaceuticals equipment to improve product reliability, environmental adaptability, and service life
  2. Features
    1. Extensive temperature and humidity range
    2. High testing precision with optimized parameter selection
    3. Touch screen panel for easy control of test parameters
    4. Energy efficient refrigeration with electronic valve system expansion
    5. Separate water and electricity connection
    6. USB compatible
    7. Safety protection measures with alarm indication
  3. Specifications
    1. Chamber capacity: 150 L
    2. Interior dimensions (w x h x d): 600 x 600 x 460 mm
    3. Exterior dimensions (w x h x d): 880 x 1730 x 1400 mm
    4. Temperature range: -20 °C to 150 °C
    5. Constant temperature: ± 0.5 °C
    6. Temperature uniformity: ± 2.0 °C
    7. Humidity range: 20 % to 98 % R.H
    8. Constant humidity: ± 2.5 % R.H
    9. Humidity uniformity: ± 3.0 % R.H
    10. Heat up time within 35 min: -20 °C to 100 °C
    11. Cool down time within 45 min: 20 °C to -20 °C
    12. Ambient temperature: 5 °C to 35 °C
    13. Power supply: AC 380 V ± 10 % 50 Hz or 220 V 50/60 Hz
    14. Power output: 5.8 kW
    15. Refrigeration system (standard): air cooled
    16. Refrigeration system (optional): water cooled
    17. Compressor: hermetic compressor system
    18. Refrigeration stage: single-stage refrigeration
    19. Refrigerant: CFC-free refrigerant (HFC-507 / HFC-23)
    20. Control system: balanced temperature and humidity control system
    21. Screen panel controller: 7-inch LCD touch panel
    22. Operation mode: program or setting
    23. Memory capacity: 120 programs, 1200 steps, all repeat 999 cycles, part repeat 99 cycles
    24. Interior material: stainless steel plate (SUS 304)
    25. Exterior material: baked painting steel or stainless steel (SUS304)
    26. Insulation material: rigid polyurethane foam and glass fiber wool
    27. Weight: 240 kg
  4. Standard Accessories
    1. Sight window
    2. Cable port (port 50 mm)
    3. Shelves (2)
    4. Chamber lamp
    5. Power cable
  5. Standard Safety Devices
    1. No fuse breaker
    2. Over pressure, over heat, and over current protection for compressor
    3. Over temperature protect
    4. Over load protect of blower
    5. Dry heat protection
