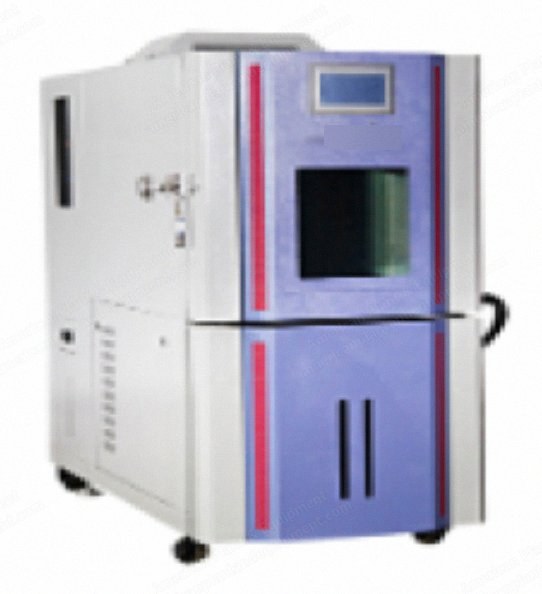

NovaStar, EC152, Temperature and Humidity Test Chamber, 408 L, -20 to 150 C, 700x750x800mm (New)

NovaStar, EC152, Temperature and Humidity Test Chamber, 408 L, -20 to 150 C, 700x750x800mm

Description

  1. Overview
    1. Temperature and humidity test chamber with 408 L capacity.
    2. Designed to test products for environmental adaptability under comprehensive temperature and humidity conditions.
    3. Used in industrial and research institutes for paper, plastic, electronics, automotive, and pharmaceuticals equipment to improve product reliability, environmental adaptability, and service life.
  2. Features
    1. Extensive temperature and humidity range.
    2. High testing precision with optimized parameter selection.
    3. Touch screen panel for easy control of test parameters.
    4. Energy efficient refrigeration with electronic valve system expansion.
    5. Separate water and electricity connection.
    6. USB compatible.
    7. Safety protection measures with alarm indication.
  3. Specifications
    1. Chamber capacity: 408 L.
    2. Interior dimensions (w x h x d): 700 x 750 x 800 mm.
    3. Exterior dimensions (w x h x d): 980 x 1940 x 1740 mm.
    4. Temperature range: -20 °C to 150 °C.
    5. Constant temperature: ± 0.5 °C.
    6. Temperature uniformity: ± 2.0 °C.
    7. Humidity range: 20 % to 98 % R.H.
    8. Constant humidity: ± 2.5 % R.H.
    9. Humidity uniformity: ± 3.0 % R.H.
    10. Heat up time (within 35 min): -20 °C to 100 °C.
    11. Cool down time (within 45 min): 22 °C to -20 °C.
    12. Ambient temperature: 5 °C to 35 °C.
    13. Power supply: AC 380 V ± 10 % 50 Hz or 220 V 50/60 Hz.
    14. Power output: 7.5 kW.
    15. Refrigeration system (standard): air cooled.
    16. Refrigeration system (optional): water cooled.
    17. Compressor: hermetic compressor system.
    18. Refrigeration stage: single-stage refrigeration.
    19. Refrigerant: CFC-free refrigerant (HFC-507 / HFC-23).
    20. Control system: balanced temperature and humidity control system.
    21. Screen panel controller: 7-inch LCD touch panel.
    22. Operation mode: program or setting.
    23. Memory capacity: 122 programs, 1200 steps, all repeat 999 cycles, part repeat 99 cycles.
    24. Interior material: stainless steel plate (SUS 304).
    25. Exterior material: baked painting steel or stainless steel (SUS 304).
    26. Insulation material: rigid polyurethane foam and glass fiber wool.
    27. Weight: 400 kg.
  4. Condition
    1. Standard safety devices include: no fuse breaker.
    2. Over pressure, over heat, and over current protection for compressor.
    3. Over temperature protect.
    4. Over load protect of blower.
    5. Dry heat protection.
  5. Included Accessories
    1. Sight window (1 unit).
    2. Cable port, port 50 mm (1 unit).
    3. Shelves (2 units).
    4. Chamber lamp (1 unit).
    5. Power cable (1 unit).
