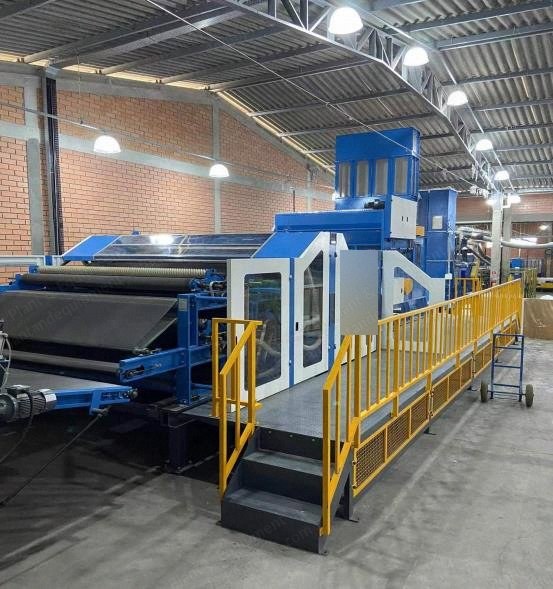

NovaStar, NN509, 150 to 180 kg/h, 300 to 1200 gsm (New)

NovaStar, NN509, 150 to 180 kg/h, 300 to 1200 gsm

Description

  1. Overview
    1. Production line for textile waste fibers
    2. Input material: textile waste fibers
    3. Material fineness: to be determined
    4. Output capacity: 150 to 180 kg/h based on web speed from card as 40 mpm with the gsm of the web taken as 50 to 60 gsm

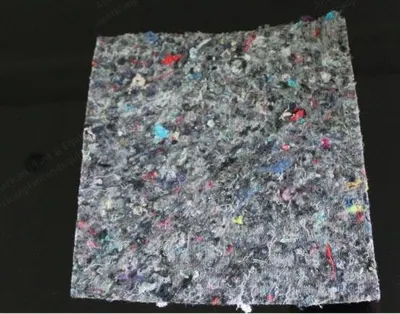

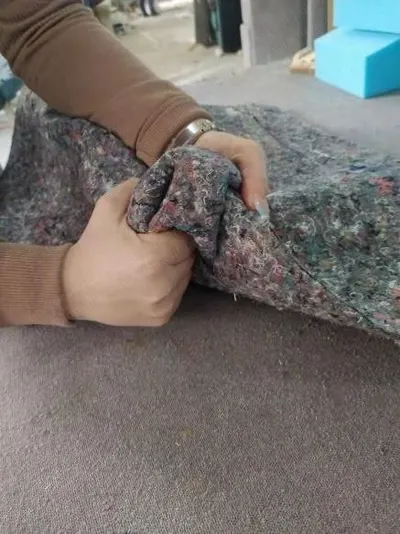

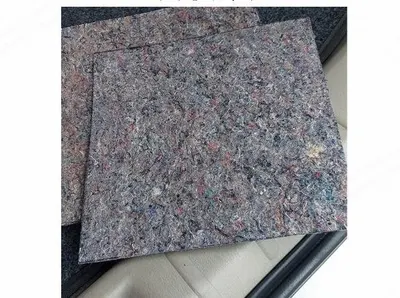

    5. Final trimmed width: 2250 mm (waste felt)
    6. Gsm range: 300 to 1200
  2. Electrical Data
    1. Operating voltage: to be specified

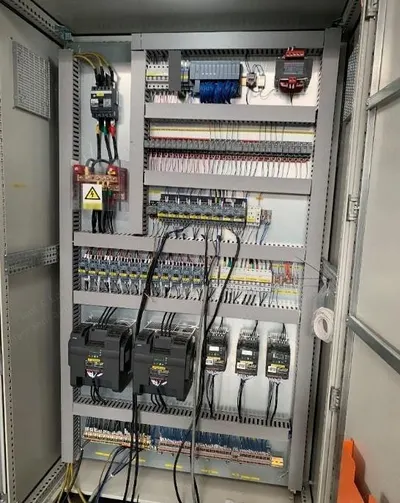

    2. Control cabinet: ≤ 35° Celsius
    3. Altitude: < 1000 m above sea level
    4. Installed power: to be determined (actual consumption 50 to 60% of installed power)
  3. Atmospheric Conditions
    1. Temperature: 20° ± 2° Celsius (suggested air conditioned control and air filtration unit for efficient working conditions)
    2. Relative humidity: 65 ± 5%
    3. Temperature during installation: minimum 18° Celsius
  4. Compressed Air
    1. Air pressure: 0.6 to 0.8 mpa (to be arranged by buyer)
  5. Machine Configuration
    1. Bale opener: 1 set with 3 beating rollers and auto weighing control
    2. Transfer lattice for pre opener
    3. Pre opener: aluminum drum with stainless steel pins

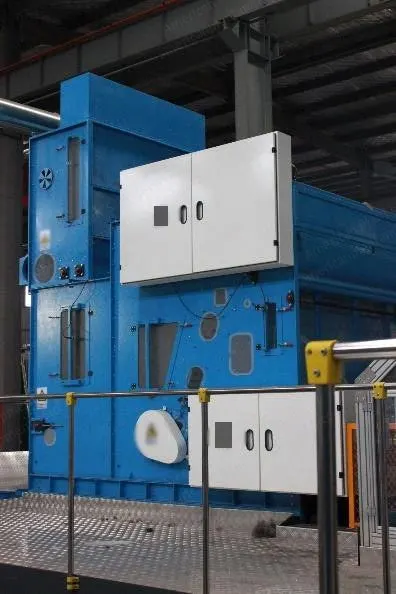

    4. Small hopper blender: 1 set, cubage 15 m³
    5. Air condenser: 2 sets, to be placed on top of hopper blender
    6. Fine opener: 1 set, aluminum drum with stainless steel pins
    7. Fire and metal detector: 1 set, detects metal and fire
    8. Vibrating feeding hopper: 1 set
    9. Weighing control system (belt type): 1 set, sensors to define the web grammage deviation and control the speed of the feeding roller of the carding machine
    10. Carding machine: 1 set, 5 + 2 pairs of worker and stripper rollers

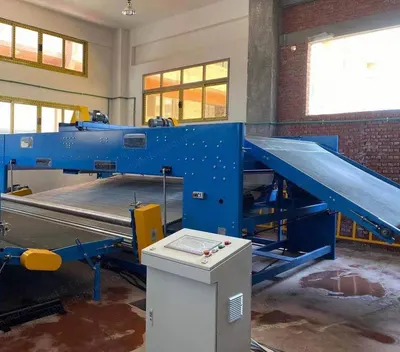

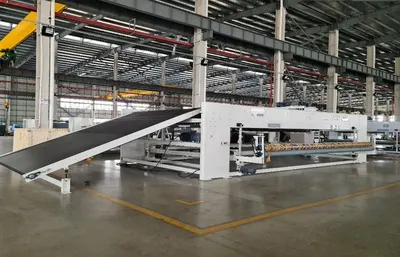

    11. Cross lapper: 1 set, input width 1700 mm, output width 2800 mm
    12. Cbf: 1 set with guiding fingers

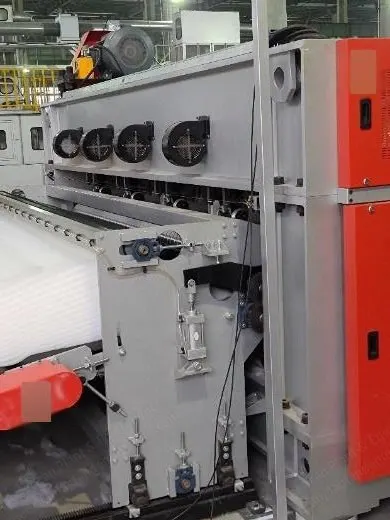

    13. Pre needle loom (hi-speed): 1 set, stroke 50 mm, downward punching ▼-single board, installed rpm 1000 rpm, needle density 4500 to 5000 n/m
    14. Dust collection: 1 set, to recover dust collected from suction of the carding and the condensers placed on top of the small hopper blender
