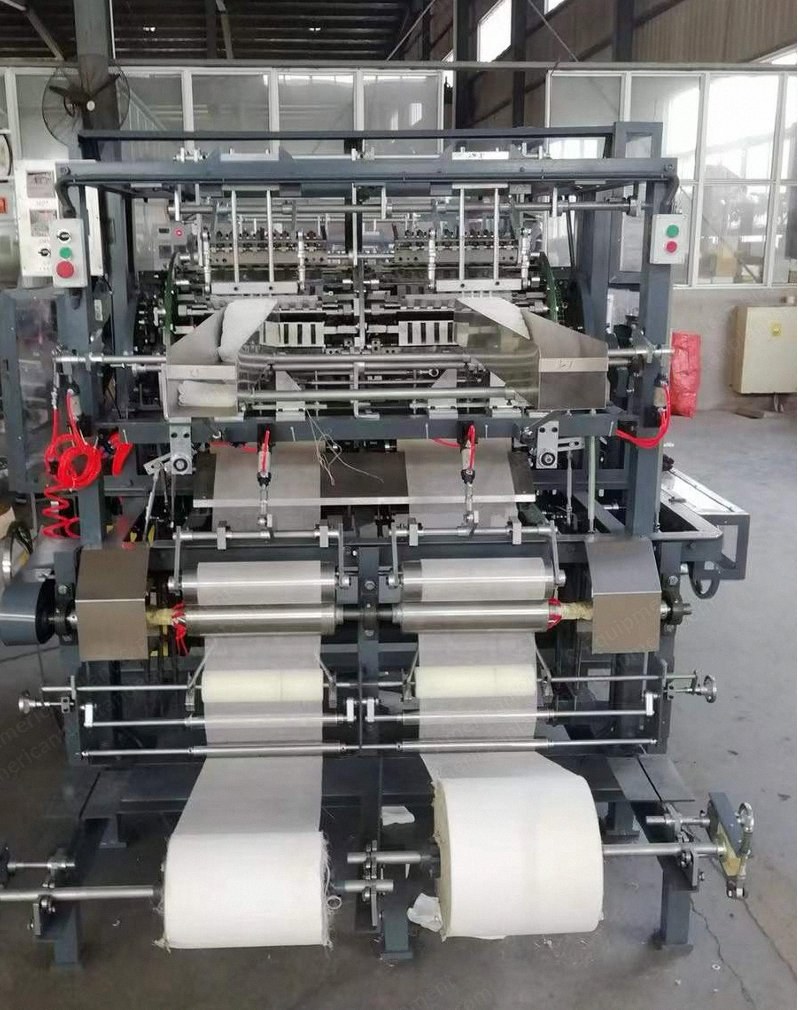

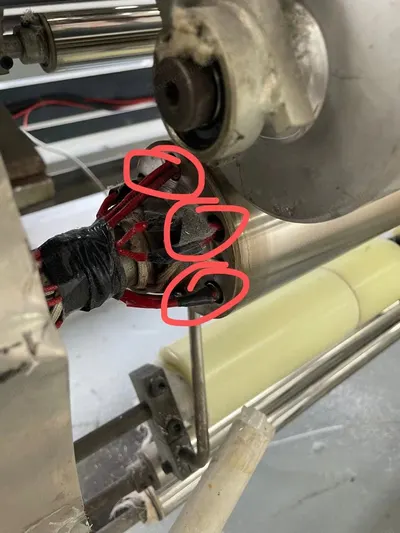

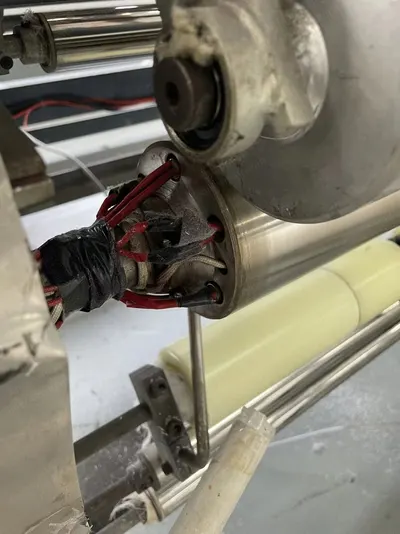

Description Overview Produces 100 x 100 mm gauze folding pads, 8-ply and 12-ply, in 2 lanes Speed: 34 to 45 pieces per minute per lane Frequency control of motor speed Electrically heated roll to heat the barium thread, which is then melted into the gauze weave Automatic counting and segment reminding functions Emergency stop switch Pneumatic brake Specifications Motor power: 1.5 kW Heating rod power: 3 kW Total power: 4.5 kW Heated rolls draw 300 watts per roll, 12 pieces total Machine size: length 2600 mm x width 1700 mm x height 1800 mm Weight: 1000 kg Product Configurations 7.5 x 7.5 x 8-ply, break length 300 mm, gauze roll width: 180 mm 7.5 x 7.5 x 12-ply, break length 300 mm, gauze roll width: 255 mm
