NovaStar, MM165, PP Fiber Spinning Machine, 1 Position, 1 Beam, 180 kW (New)

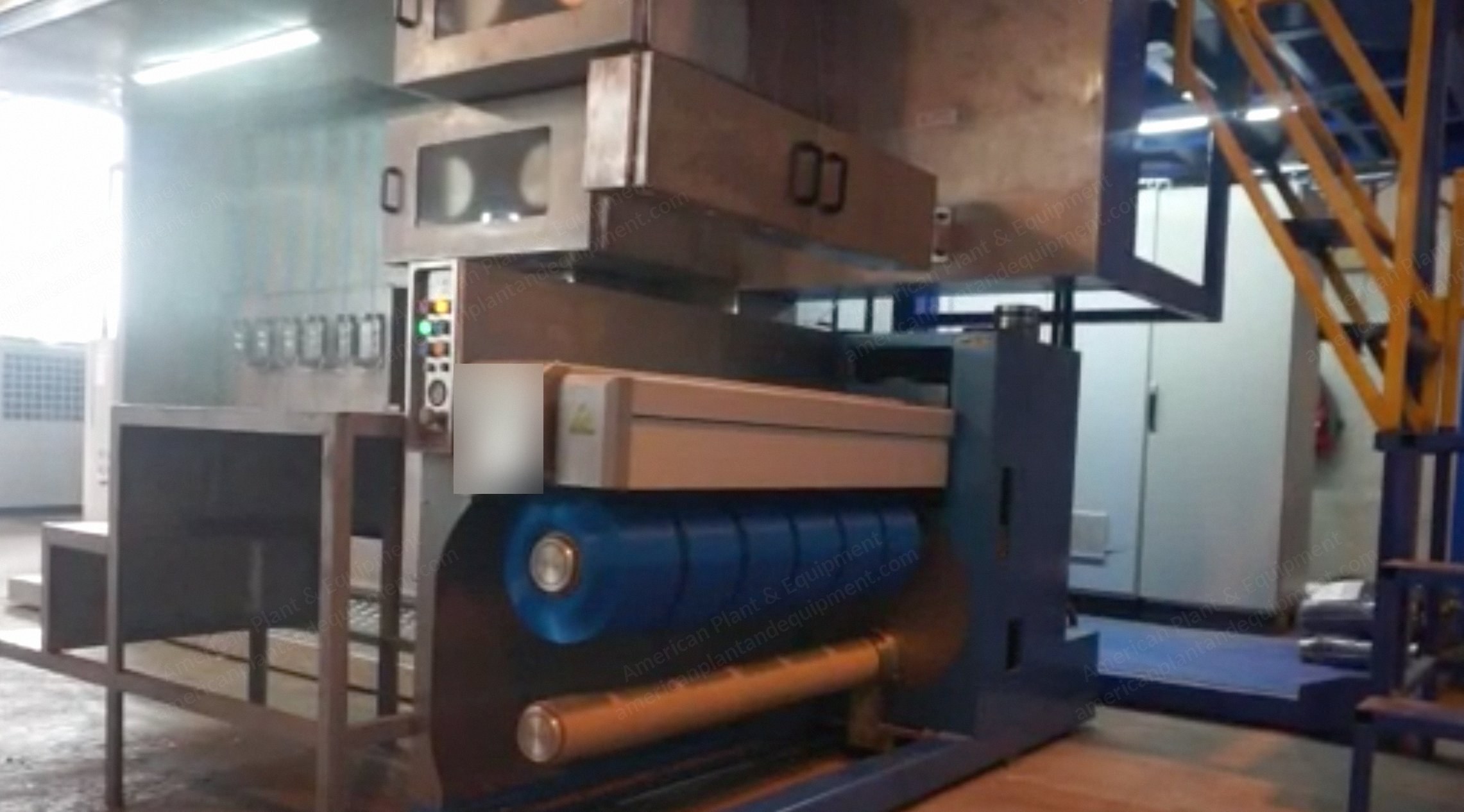

NovaStar, MM165, PP Fiber Spinning Machine, 1 Position, 1 Beam, 180 kW

Description

  1. Specifications
    1. Installed power: about 180 kW.
    2. Actual running power: about 90 kW.
    3. Screw diameter: 80 mm, 90 mm or 100 mm based on yarn denier chosen.
    4. L:D ratio: 30:1.
    5. Heating sections on the extruder: 6.
    6. Cast aluminum heating on the extruder barrel.
    7. Voltage: 440 V 3ph 60 Hz or 220 V 50/60 Hz.
    8. Tube sizes:
      • ID 110 mm x length 200 mm x 6 cones
      • ID 94 mm x length 153.3 mm x 6 cones
      • ID 75 mm x length 100 mm x 6 cones
    9. Capacity: 1 position, 1 beam, 6 ends
    10. Winding speed: 1500 to 2600 m/min
  2. Condition and Requirements
    1. Request building roof at least 7 m high; 9 m is best.
    2. Machine working also needs some support facilities.
    3. If running virgin PP granules there is no need for a filter device, but if mixed with recycled PP granules the machine will come with a filter.
  3. Included
    1. Air compressor.
    2. Chiller.
    3. Spinneret cleaning unit, etc.
