NovaStar, BW198, Automatic Four-Sided Sewing Machine, 2800x3000mm Sewing Area, Chainstitch (New)

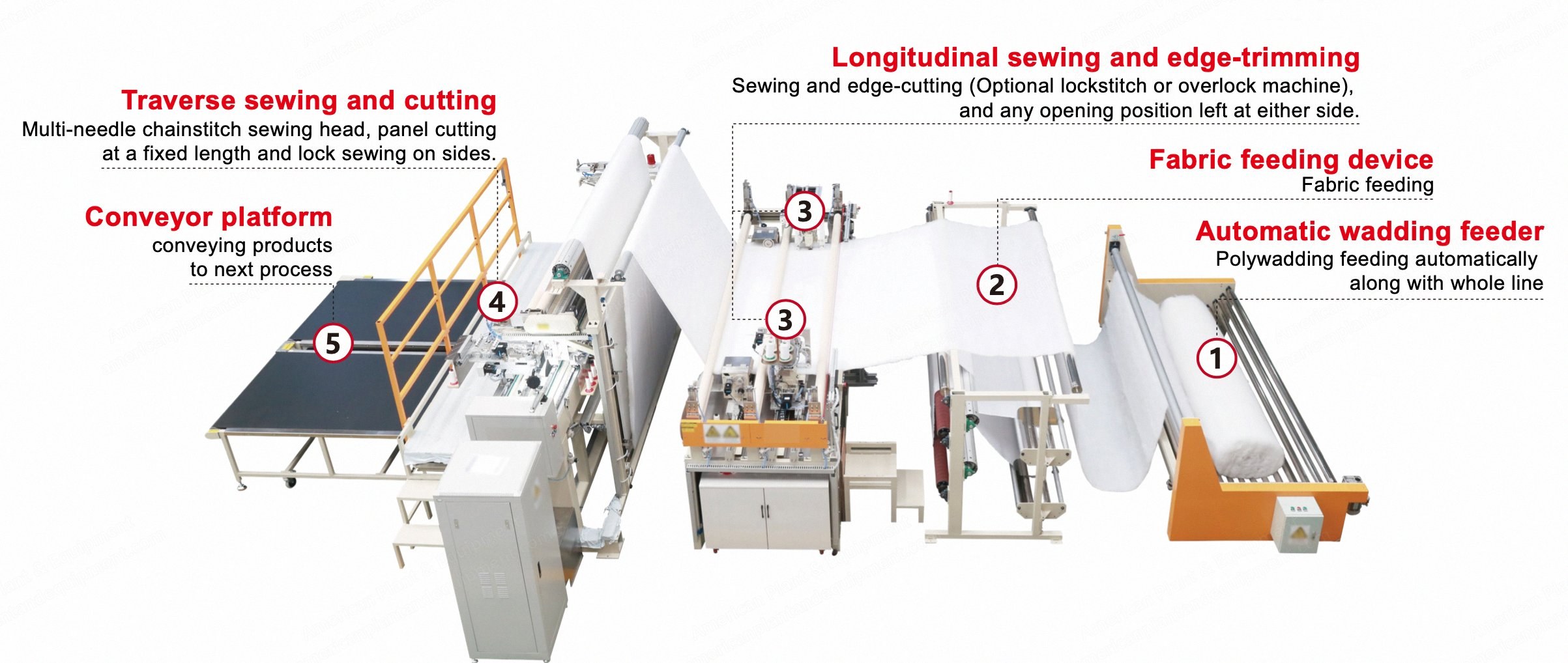

NovaStar, BW198, Automatic Four-Sided Sewing Machine, 2800x3000mm Sewing Area, Chainstitch

Description

  1. Machine Features
    1. New computer control system, friendly HMI, flexible control and large capacity, ensuring high-precision running of the machine.
    2. Longitudinal sewing: double threads chainstitch (optional lockstitch or overlock stitch).
    3. Traverse sewing: multi-needle chainstitch sewing.
    4. Full servo motor control system, providing strong and accurate driving power.
    5. With scrap collection device to keep the workshop clean.
  2. Application 1: Turnover Quilt Technology
    1. Applicable for turn-over quilt edges sewing and opening left at either side.
  3. Main Features for Turnover Quilt Technology
    1. Integrated multiple processes including wadding cutting, quilts cover sewing, four edges sewing and opening leaving into one line operation.
    2. Visual positioning technology makes opening part more accurate.
    3. Opening position and size could be freely adjusted.
    4. Small floor space, strong compatibility, could be working standalone or connecting to the production line.
  4. Application 2: 4-Side Interlock Sewing
    1. Suitable for 4-side sewing and trimming process after quilting, and convenient for the afterwards tape binding.
    2. Solved bursting issue of the cutting edge after quilting, reduced the difficulty of heavy material binding, and improved binding quality.
  5. Application 3: Automatic Binding Production Line for Multi-Needle Pattern Comforters
    1. Connected with high speed multi-needle quilting machine and automatic tape binding machine.
    2. Fully automatic production line for multi-needle quilting pattern comforter with tape binding.
  6. Parameters
    1. Installation size: 11000 mm × 6000 mm × 2600 mm (L × W × H)
    2. Stitch type: chainstitch (other stitch could be customized)
    3. Number of edge sewing threads: 1-2 (other threads could be customized)
    4. Needle distance of edge sewing: 1/4 inch (6.35 mm)
    5. Minimum distance between edge cutting and sewing: 1/8 inch (3.2 mm)
    6. Maximum longitudinal sewing speed: 3000 rpm
    7. Maximum cross sewing speed: 3000 rpm
    8. Stitch length: 2 to 12 mm
    9. Maximum sewing area (L × W): 2800 mm × 3000 mm
    10. Maximum quilting thickness: ≤600 gs (shaped wadding)
    11. Needle size: 14-21#
    12. Distance between sewing lines at single side: 6.35 mm (maximum 12.7 mm)
    13. Output: 2 to 3.5 pieces per minute (size of 2000 mm × 2000 mm)
  7. Specifications
    1. Voltage: 480V 3P
