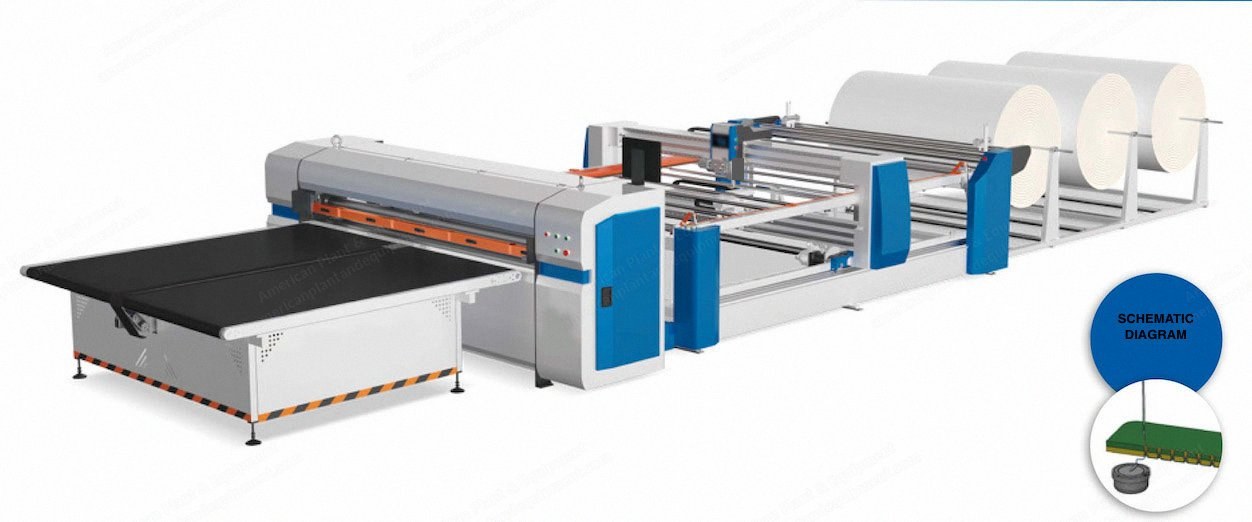

NovaStar, QL275, Quilting Width 2400mm, Speed 70 to 200 m/h, Durkopp Sewing Head (New)

NovaStar, QL275, Quilting Width 2400mm, Speed 70 to 200 m/h, Durkopp Sewing Head

Description

  1. Overview
    1. Quilting width: ≤2400 mm
    2. Production speed: 70 to 200 meters per hour
    3. Rotating speed: 3000 rpm
    4. Stitch length: 2 to 6 mm
    5. Quilting thickness: ≤80 mm
    6. Power: 9.0 kW
    7. Voltage: 220 volts or 380 volts, 50/60 Hz, 3-phase
  2. Dimensions And Weight
    1. Dimensions (L x W x H): 12800 x 3800 x 1730 mm
    2. Gross weight: 3200 kg
  3. Features
    1. Sealing edge function, non-shuttle working, output fabric with over lock two sides.
    2. Equipped with Durkopp sewing head, maximum speed 3000 rpm.
    3. With large rotary hook, arbitrary jump quilting, automatic thread breaking detection, pattern compensation available at any point by touch screen.
    4. Presser foot can be adjusted according to material thickness.
    5. Uses a professional customized industrial computer system and can accurately quilt various complex patterns.
    6. Able to quilt 360° jump design, with large memory, able to store more than 100 thousand patterns.
  4. Installation Layout
    1. Installation layout diagram available.
  5. Details Of The Figure
    1. Detailed figure diagram available.
  6. Pattern Diagram
    1. Pattern diagram available.
