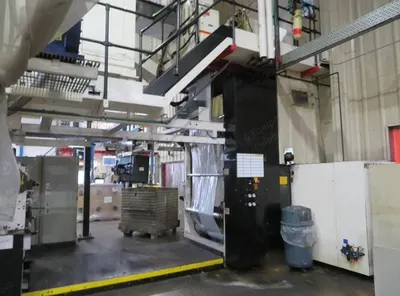

W&H, Astraflex, 2003, 10 Color, 53 Inch, CI Press

W&H, Astraflex, 2003, 10 Color, 53 Inch, CI Press

Description

  1. Overview
    1. Manufacturer: W&H
    2. Model: Astraflex 53"
    3. Year: 2003
    4. Condition: Used

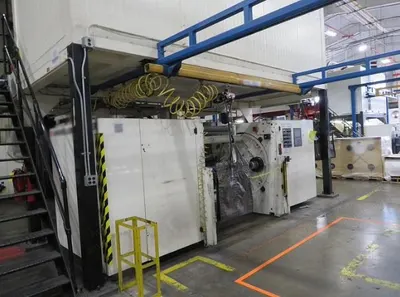

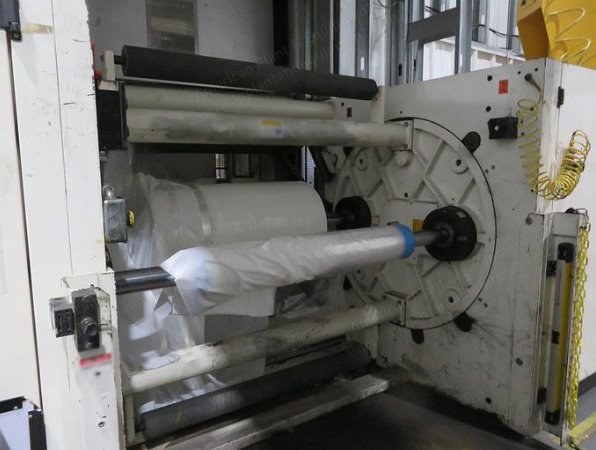

    5. 10 color CI press with 40" diameter turret unwind and rewind
    6. Gas drying, doctor blades, auto deck positioning
    7. Many cylinders and spare anilox rolls
    8. In great condition, available now, can be seen running
    9. 1200'/min
    10. Repeat range: 13" to 27"

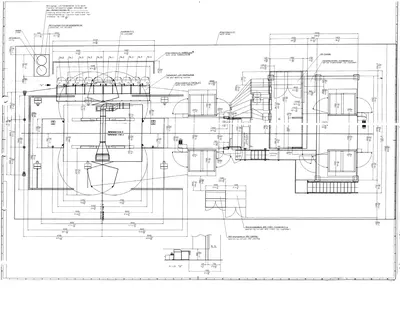

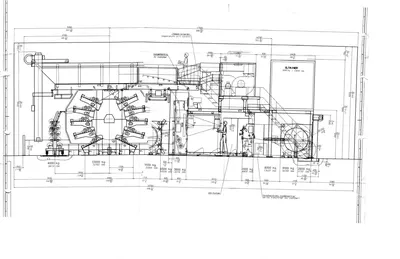

    11. Footprint dimensions: 75' long x 21' high x 34' wide
    12. Press built in 2002, installed in 2003
    13. Mechanical machine speed: 460 meters per minute
    14. Print width (without sleeve): 1270 mm
    15. Print repeat range: 300 to 813 mm
    16. This is a geared press
    17. Current ink is solvent-based but the machine is capable of used water-based inks
    18. Available immediately
  2. Winder Specifications
    1. Roll diameter at unwind: 1000 mm maximum
    2. Roll diameter at rewind: 1000 mm maximum
    3. Core inner diameter: 70/76 mm
    4. Core outer diameter: 85 mm
    5. Roll weight: 1240 kg maximum
    6. Unwind with draw: 25 N minimum / 350 N maximum
    7. Rewind without longitudinal slitter: 25 N minimum / 350 N maximum
    8. Rewind without longitudinal slitter: 40 N minimum / 350 N maximum
    9. Draw: 25 N minimum / 450 N maximum
  3. Utilities
    1. Installed load, not including temperature control unit provided by customer: 240 kVA
    2. Compressed air required: 1 m³/hour
    3. Additional air volume required when changing sleeves (max 3 minutes): 1.5 m³/hour
    4. Additional air volume required when using turboclean: 330 m³/hour
    5. Cooling water requirement for temperature control unit: 2 m³/hour
    6. Cooling water pressure, inlet: 4 bar
    7. Cooling water pressure, outlet: 2 bar
    8. Cooling water requirement for chill roll (per roll): 1.5 m³/hour
    9. Cooling water pressure: 4 bar
    10. Cooling water inlet temperature: 14 °C
    11. Voltage: 460 volts, 3-phase, 60 Hz
  4. Materials to Be Printed
    1. LDPE, PP, PA: 20 to 150 um
    2. HDPE, OPP: 12 to 100 um
    3. HDPE, OPP: 150 um maximum
    4. Paper: 30 to 120 gsm
  5. Drying System
    1. Recirculating air – inter-color drying: 5900 m³/hour maximum
    2. Recirculating air – tunnel: 8,640 m³/hour maximum
    3. Exhaust air: 11,180 m³/hour maximum
    4. Exhaust air temperature: 63 °C
    5. Fresh air – inter-color drying: 2340 m³/hour minimum, 5940 m³/hour maximum
    6. Fresh air – tunnel: 2160 m³/hour maximum
    7. Fresh air – drying hood: 1650 m³/hour
    8. Fresh air temperature: 20 °C
    9. Heating capacity, inter-color drying: 360,000 kJ/hour
    10. Heating capacity, tunnel: 360,000 kJ/hour
    11. Nozzle air temperature, inter-color drying: 100 °C
    12. Nozzle air temperature, tunnel: 120 °C
  6. Reason for Sale
    1. For sale because the seller has grown in other industries and this asset is not needed
  7. Specifications
    1. Web width: 1320mm maximum
