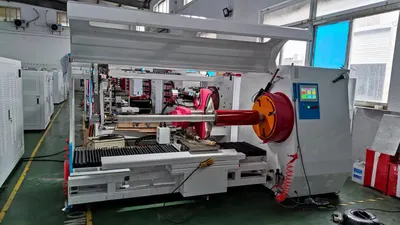

NovaStar, SR282, Cutting Width 3mm to 1600mm, Roller Width 1700mm, 7.5 HP Main Motor (New)

NovaStar, SR282, Cutting Width 3mm to 1600mm, Roller Width 1700mm, 7.5 HP Main Motor

Description

  1. Overview

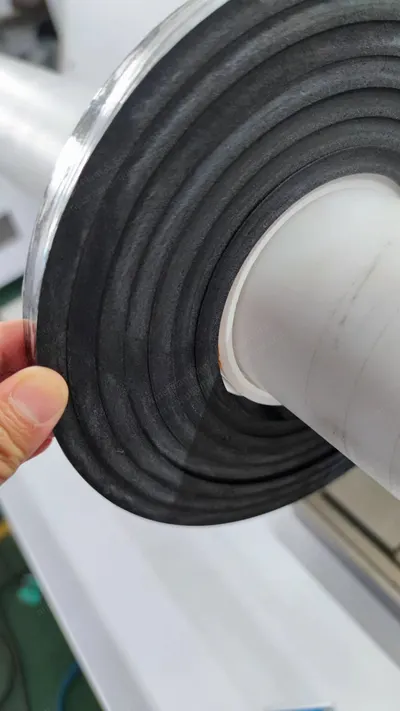

    1. Application: Use for melt-blown fabric, non-woven fabric, foam tape, masking tape, etc.
  2. Standard Accessories
    1. Main motor: AC 7.5 hp x 4p inverter control, 1 set
    2. Width setting: servo motor driven, 1 set
    3. Cutter stand: ball spline, 2 pcs; ball screw, 1 pc

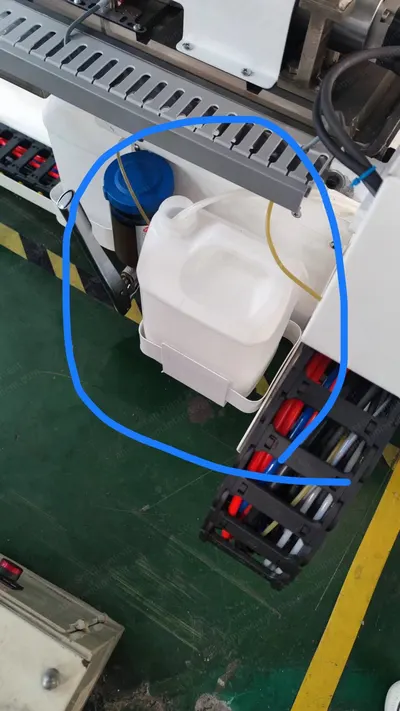

    4. Cooling system: automatic water supply, 1 set
    5. Cutting shaft: for paper core I.D. 76.2 mm, 1 pc
    6. Shaft sleeve: PE tube (spare), 10 pcs

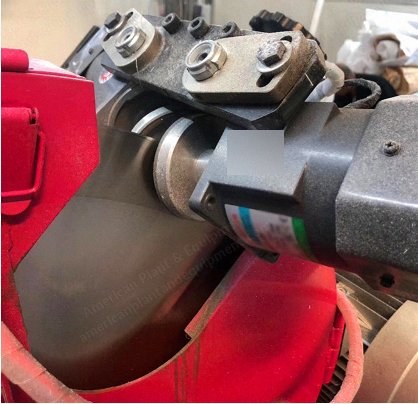

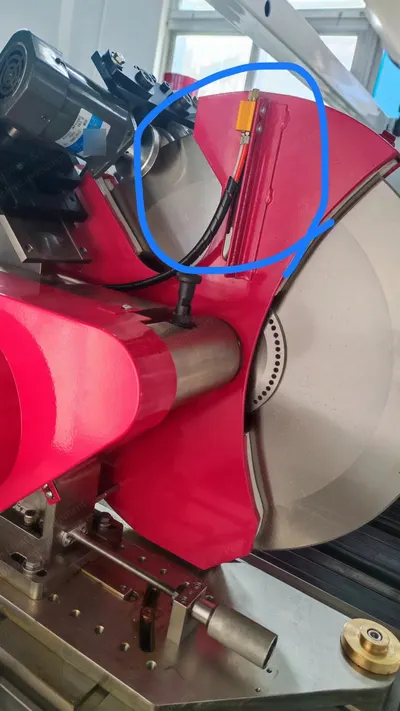

    7. Circular blade: 4 mm x 1” I.D. x 600 mm O.D. (C-type) maximum cutting O.D. 500, 1 pc
    8. Knife holding plate: 120/200, 1 set
    9. Knife motor: AC 7.5 hp x 4p inverter control, 1 set
    10. Knife angle adjustment: angle change by servo motor driven +/- 8 degrees, 1 set
    11. Shaft ending rack: automatic control, 1 set
    12. Cutting system: servo motor driven, 1 set
    13. Maintenance kit: tools and instruction, 1 set

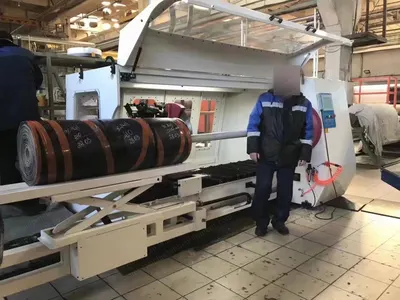

    14. Loading/unloading device: electric device for loading/unloading, 1 set
  3. Electrical Section
    1. Control system: PLC - 3 servo motor system, 1 set; 20 sets of width setting, 1 set; auto. error detective system, 1 set
    2. Display mode: touch panel screen, 1 set
  4. Additional Features
    1. Machine comes with lifting table
