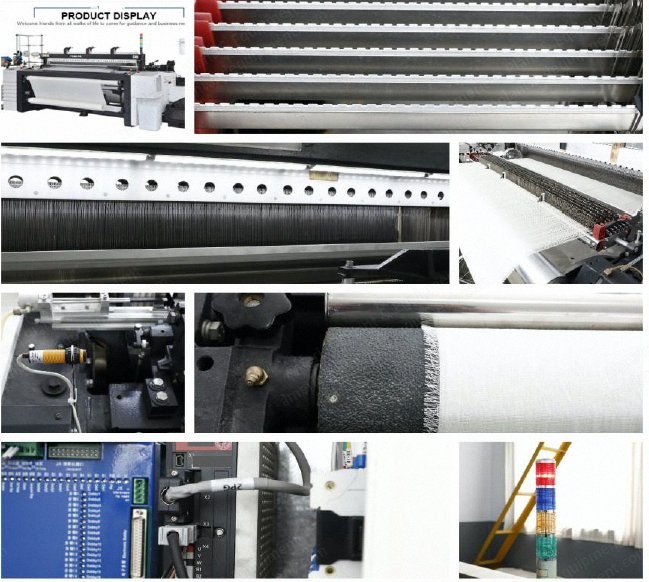

NovaStar, WM427, Air Jet Loom, Reed Space 3400mm, 2 Nozzles, Cam Shedding (New)

NovaStar, WM427, Air Jet Loom, Reed Space 3400mm, 2 Nozzles, Cam Shedding

Description

  1. Frame
    1. Integrated side frames innovatively designed, with high rigidity cross rails and mid-supporters to form ultra-high strength frameworks, which is better than Zax 9100 Japan
    2. Standard with 7 air box on machine body, 6 air box package ready for 6 electric feeder, and 1 for tuck in device
    3. Lower built, heavy duty frame
    4. Main gears run in oil bath
    5. Loom raise-up by inclined base liner for larger loom beam diameter
  2. Driving
    1. Direct control and positioning stop through electromagnetic brake push button operation by both hands and forward-reverse inching
    2. Ultra start motor 3.7 kW (cam shedding)
    3. Provided with: one set of rush start motor, 3.0 kW, 4P; one set of V-belt; one piece of motor pulley
  3. Shedding
    1. Positive cam shedding, heald frames max. 8 pcs
  4. Let-Off
    1. Positive cam shedding
    2. Single warp beam (below 280 cm) positive easing, double back girder
    3. Flange diameter: Φ800
  5. Take-Up
    1. Electronic take-up
    2. Programmable pick density setting through
    3. Length counter: display of weaving reports, with fixed-length stop function
    4. Weft density range: 25 to 300 picks per inch (electronic take-up)
    5. Temple: top-mounted type
    6. Friction roller: rubber
    7. Maximum take-up diameter: Φ600 mm
    8. Provided with: 1 pair of temple (top mount)
  6. Beating Motion
    1. With 6-link mechanism
    2. Crank shafts and connecting rods in oil bath built in the main frame on both sides
  7. Weft Insertion
    1. Weft insertion by two color pick at will
    2. Main and sub nozzles combined system, controlled by electronic solenoid valve unit (SVU) sub nozzle timing set and controlled by twin nozzle valve for air conservation
    3. With auxiliary main nozzle
  8. Weft Feeder
    1. Incorporate automatic dividing pick storer to avoid yarn intert wist, suitable for every kind of yarn
    2. With yarn release sensor
  9. Selvage Formation
    1. Intertwisting system by planetary gear motion
  10. Waste Weft Removal
    1. By catch cord system on right side only
  11. Cutter
    1. Mechanical cutter, scissors type
  12. Lubrication
    1. Oil bath system built in the main frame for main revolution parts
    2. Oil bath system for the main driving parts, centralized lubrication by manual
  13. Weft Supply Stand
    1. Horizontal type 4 packages
    2. Floor mounting
  14. Control Box
    1. Unit built in system by function controlled by printed circuit boards and micro processors
    2. Large-screen color LCD touch screen and human interface are fixed to display information such as running status, fault analysis, technological parameters, etc. on the screen, convenient for operation
    3. The USB communication interface is fixed to input various setting parameters into other looms
    4. Weaving guidance system can monitor the working status of looms at any time and be used to set the optimum technological parameters according to loom conditions and fabric technology, further improving the stop mark preventing function of looms and increasing the quality of fabrics
  15. Stop Motion
    1. With single lamp of 4 color system for indicating each stopping cause
    2. Warp stop motion: electric contact type, 6-row droppers
    3. Weft feeler: photo-electronic type feeler, adjustable to fabric width, 2-head system
    4. Leno yarn: electric system with proximity switch
    5. Catch cord yarn: electric dropper system
  16. Connectivity
    1. (Local area network) port for ethernet connection
  17. Included Accessories
    1. (1.5x) warp beam with 800 flanges
    2. (1.5x) cloth roller
    3. Heald frame, 8 pcs/set for cam
    4. Dropper pin (165 x 11 x 0.2 mm) (10000 pcs/set)
    5. Spare heald rod 4 pcs/set
    6. Connecting rod 8 pcs/set
    7. Spare leno bobbin 2 pcs/set
    8. Spare motor pulley 3 pcs/set
    9. Spare dropper bar 6 pcs/set
    10. Miscellaneous spare parts 8 pcs/set
  18. Specifications
    1. Capacity: 1100 picks/min top speed, 1000 picks/min running speed
    2. Dimensions: 3400mm reed space
