NovaStar, NN513, Medium Speed Pre-Needle Loom, 3200mm Working Width, 600 RPM (New)

NovaStar, NN513, Medium Speed Pre-Needle Loom, 3200mm Working Width, 600 RPM

Description

  1. Overview
    1. Project name: 3200mm - medium speed needle loom
    2. Products width: ≤3200mm
    3. Capacity: linear speed ≤8 meters per minute (according to product)
    4. Product GSM range: 80 to 800 GSM
  2. General Specifications
    1. Electric control mode: PLC system with touch screen
    2. Power supply: 480 Volts/60Hz (or as per customer)
    3. Total power: electrical power 16.2 kW
    4. Inverter: Siemens brand
    5. Motor: Siemens-Beide brand
    6. Electrical apparatus: Schneider
  3. Process
  4. CBF Fiber Batter Feeder - General Parameters
    1. Working width: ≤3200mm
    2. Feeding speed: 0.8 to 8 m/min
    3. Available weight: ≤2000GSM (for reference)
    4. Total power: 2.2 kW
  5. CBF Fiber Batter Feeder - Main Components and Structure
    1. Application: preliminarily compressing high loft fiber batter to be suitable for needling production.
    2. Framework: high quality Q235A steel plate formed by bending work.
    3. Feeding conveyor: antistatic and anti slip type PVC belt.
    4. Bottom clamping conveyor height is adjustable.
    5. Equipping trolley wheel in the base for easy operation and movement.
  6. CBF Fiber Batter Feeder - Features
    1. Framework sits on moveable trolley wheel which is handy to move.
    2. Clamping clearance and feeding speed is adjustable for diverse product and GSM, and to optimize traction control.

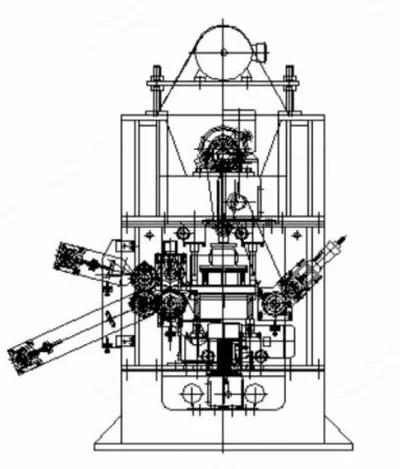

  7. Medium Speed Pre-Needle Loom - General Parameters
    1. Working width: 3200mm
    2. Needling frequency: ≤600 rpm
    3. Stroke: 60mm (customizable)
    4. Needle density: 5000 needles/meter (designed to need)
    5. Needling type: down stroke, single plate (▼)
