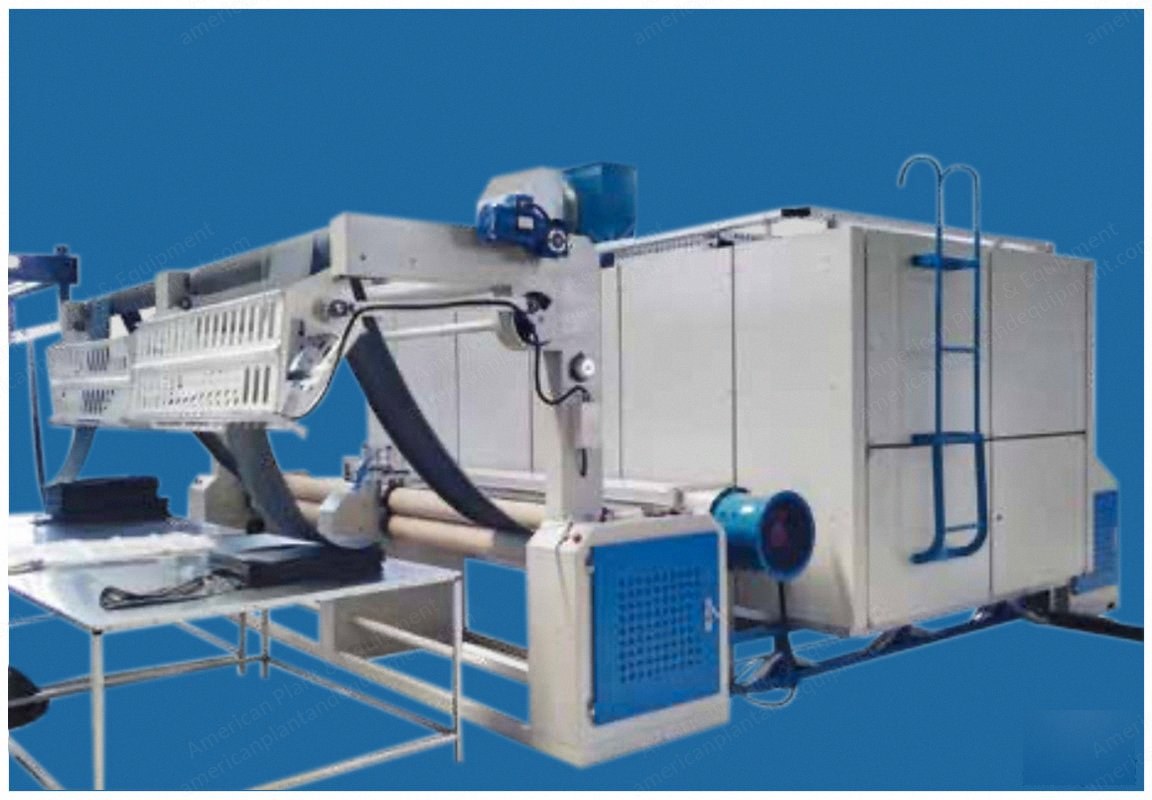

NovaStar, YC114, Tubular Heat Setting Machine, Working Width 1600mm Single / 1200x2 Double, Hot Air Circulating (New)

Name: NovaStar, YC114, Tubular Heat Setting Machine, Working Width 1600mm Single / 1200x2 Double, Hot Air Circulating
Brand: NovaStar
SKU: YY-2157

‹ Go Back Next Product ›

Description

Main Parameters And Requirements
1. Type 1: width 2 x 8000 / 1 x 1600 mm, speed 3 to 20 m/min, dimension 5700 x 3700 x 3000 mm, power 14.15 kW, power of oil heater 20 (0.8 GJ/h), DN 65 mm, oil 120 dm³.
2. Type 2: width 2 x 1600 mm, speed 3 to 20 m/min, dimension 5700 x 5100 x 3000 mm, power 17.65 kW, power of oil heater 25 (1 GJ/h), DN 80 mm, oil 200 dm³.
Heating Methods Of Chamber
1. Electricity.
2. Recycle oil.
3. Directly heat by gas.
4. Indirectly heat by gas.
Technical Specifications
1. Name: tubular heat setting machine.
2. Suitable fabric: tubular chemical knitted fabric.
3. Working width: 1600 mm (single), 1200 x 2 (double).
4. Supporting plate: manually regulate.
5. Working speed: 3 to 20 m/min.
6. Chamber width: 2400 mm.
7. Power supply: 480 V, 3-phase, 60 Hz.
8. Weight of machine: approximately 4 to 5 t (single), 5 to 6 t (double).
9. Drive installed capacity: 13 kW (single), 19.94 kW (double).
10. Heat-setting type: hot air circulating.
11. Fabric breadth control: manually regulate.
12. Driving type: independently drive (single), double driving (double).
13. Temperature control type: auto temperature control.
14. Compressed air: 0.35 to 0.6 MPa.
15. Dimension: 6950 mm x 3300 mm x 3300 mm (L x W x H) single; 6950 mm x 4900 mm x 3300 mm (L x W x H) double.
16. Main color: blue / customize.
Specifications
1. Weight: 5000

Additional Specifications

Specifications

Capacity	3 to 20 m/min
Heat Setting Type	Hot air circulating

Dimensions

Dimensions	6950x3300x3300mm
Height	3,300 mm
Length	6,950 mm
Weight	5,000 kg
Width	3,300 mm
Working width	1,600 mm

Power & Electrical

Drive Installed Capacity	13KW (single), 19.94KW (double)
Voltage	380 V
