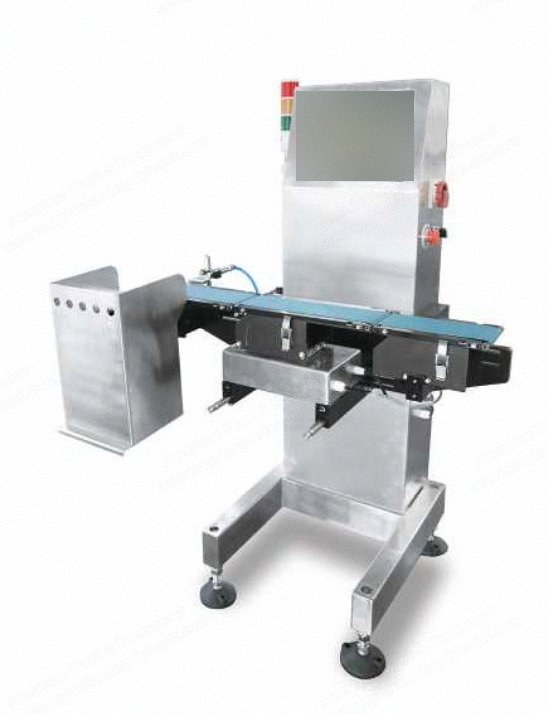

NovaStar, IC129, Check Weigher, 5 to 1500g Weighing Range, 220V, 120 bpm Max Speed (New)

NovaStar, IC129, Check Weigher, 5 to 1500g Weighing Range, 220V, 120 bpm Max Speed

Description

  1. Overview
    1. Used to check if finished products are within the preset target weight and reject non-standard products by automatic checking device.
  2. Specifications
    1. Weighing accuracy: X (0.5) for all models.
    2. Weighing resolution: 0.1 for all models.
    3. Weighing range: model 1: 5 to 50 g; model 2: 5 to 200 g; model 3: 5 to 1500 g.
    4. Maximum line speed: model 1: 60 m/min; model 2: 55 m/min; model 3: 52 m/min.
    5. Maximum speed: model 1: 120 bpm; model 2: 100 bpm; model 3: 80 bpm.
    6. Belt width: model 1: 95; model 2: 120; model 3: 220.
    7. Optional rejector: air blower / swing arm / pusher / sliding.
    8. Power supply: 220 V, 0.15 kW, 50/60 Hz for all models.
  3. Dimensions and Weight
    1. Packing dimension: model 1: 850 (L) x 550 (W) x 1412 (H); model 2: 850 (L) x 550 (W) x 1412 (H); model 3: 1300 (L) x 1000 (W) x 1614 (H).
    2. Net weight: model 1: 70; model 2: 90; model 3: 120.
    3. Gross weight: model 1: 100; model 2: 140; model 3: 170.
