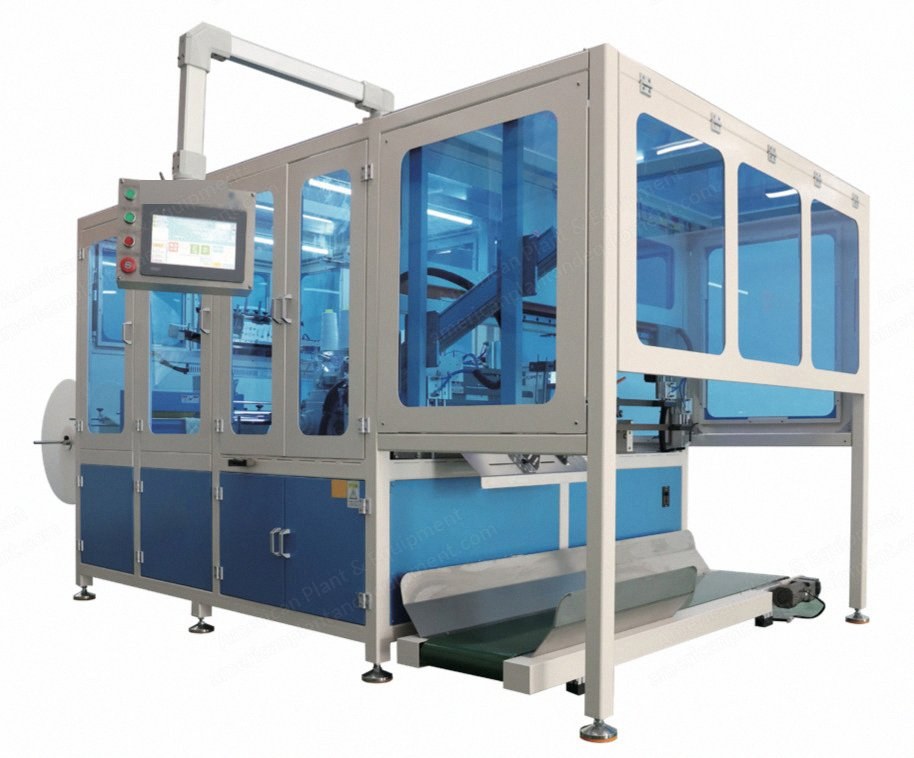

NovaStar, MB248, Mattress Border Sewing Automatic Production Line, Sewing Speed 7-8m/min, Border Width 50-450mm (New)

NovaStar, MB248, Mattress Border Sewing Automatic Production Line, Sewing Speed 7-8m/min, Border Width 50-450mm

Description

  1. Overview
    1. Mattress border sewing automatic production line (universal style)
    2. Sewing speed 7 to 8 m per min
    3. Border width 50 to 450 mm
  2. Technical Features
    1. Used for processing of mattress side border, multi-functional automatic production of border
    2. Automatic stitching of labels
    3. Automatic front and back seaming
    4. Automatic marking points, such as trademark position, air hole position, corner position, etc.
    5. Automatic air holes
    6. Automatic calculation of length
    7. Automatic cutting
    8. Automatic splicing interfaces
    9. Machine can save 60 mattress data of different sizes, which is convenient and quick
    10. Saves 6 workers' operations
    11. Improves mattress quality and increases output
  3. Technical Parameters
    1. Front and back sewing head: Pegasus 5 lines
    2. Sewing speed: 7 to 8 m/min
    3. Border width: 50 to 450 mm
    4. Stitch: 2 to 6 mm
    5. Border thickness: 3 to 25 mm
    6. Label width: 30 to 100 mm
    7. Label length: 40 to 140 mm
    8. Stomatal diameter: 10 to 30 mm
    9. Voltage power: 1 phase 220 V, 60 Hz, 4 kW
    10. Air pressure: 0.6 MPa
    11. Display: Schneider
    12. PLC: Panasonic
    13. Servo motor: Delta
  4. Specifications
    1. Dimensions: 4870x2070x2852mm
