NovaStar, CR186, Sample Carding Machine, Output 5-10 kg/h, Cylinder Width 360mm (New)

NovaStar, CR186, Sample Carding Machine, Output 5-10 kg/h, Cylinder Width 360mm

Description

  1. Overview
    1. Sample carding machine for cotton and wool sliver through opening, mixing and carding.
    2. Can card, further blend and remove impurities to make the combed fiber as straight and parallel as possible, finally output continuous.
    3. Mainly used in university, researching center and small farms.
  2. Key Specifications
    1. Output: 5 to 10 kg/h
    2. Width of cylinder: 360 mm
    3. Diameter of cylinder: 450 mm
    4. Diameter of doffer: 220 mm
    5. Diameter of licker-in: 165 mm
    6. Diameter of working roller: 110 mm
    7. Diameter of stripping roller: 90 mm
    8. Speed: adjustable (frequency converter control)
    9. Output mode: silver
    10. Maximum fiber length: 100 mm
    11. Speed: the whole machine is driven by a geared motor, combined with frequency inverter speed regulation.
    12. Power: wool hopper 1.5 kW; main machine 2.2 kW
    13. Power supply: AC220V, 50 Hz or 60 Hz single phase
    14. Floorspace dimension (L×W×H): main machine 1,350×950×900 mm; wool hopper: 900×900×1200 mm
    15. Net/gross weight: 650/750 kg
  3. Standard Configuration
    1. Main machine: 1 set
  4. Optional Configuration
    1. Can coil: 1 set
    2. Hopper: 1 set

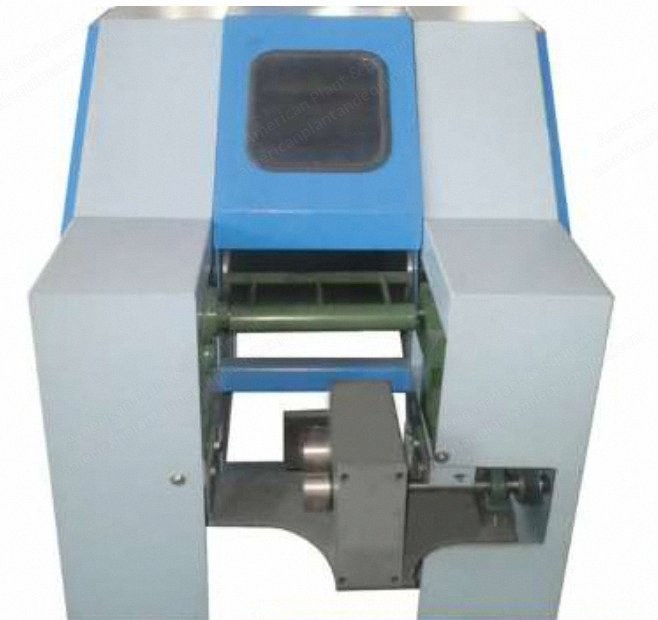

  5. Image
