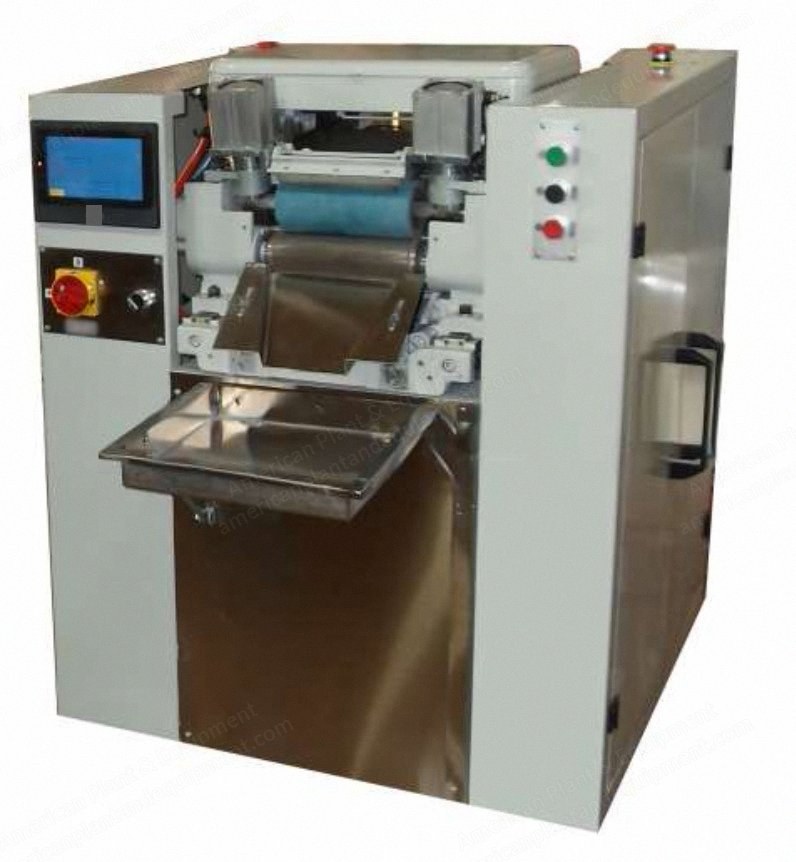

NovaStar, DB149, Mini Wool Gilling Machine, 88 Needles, 800 RPM
Scroll to zoom
100%
Description
Overview
Mini wool gilling machine is used for long fiber spinning system, such as woolen or worsted spinning system.
The shorter fibers are further removed and the longer fibers are aligned as parallel as possible.
It also helps to remove any impurities left during the carding process.
The main task of the needle-combing process is to improve the uniformity of the middle and long fibers in the sliver by means of multi-merging and drawing.
By needle combing, the fiber's straightness and parallelism are further improved, and the fiber hooks and curl are eliminated.
The fiber is blended evenly and the yarn quality is improved by repeated blending and drawing.
Small impurities and short hair are removed.
Specifications
Feed mode: platform or elevated
Drive mode of chain plate: double line screw, double head beater
Number of needles in the needle plate: 88
Maximum rpm: 800
Draw type: single zone cross needle plate drawing
Draw ratio: 2.5 to 15
Doubling: 3 to 6
Maximum feed quantity: 60 grams per meter
Output sliver speed of front roller: 10 to 50 m/min
Output sliver type: web or sliver, specify when ordering
Auto-stop device: door cover limit switch
