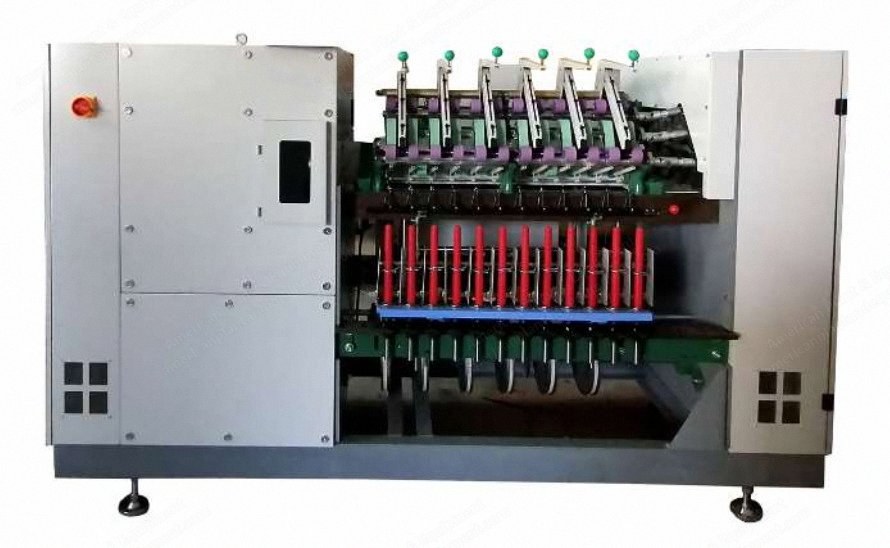

NovaStar, TL174, Mini Wool Ring Spinning Machine, 24 Spindles, 12000 RPM
Scroll to zoom
100%
Description
Overview
Mini wool ring spinning machine suitable for wool yarns
Used to convert roving to spun yarn through drafting and ring spinning
Features
Uses s/z twist reversing
High-efficiency imported frequency inverter
Drafting, drafting cot, flyer or moulding drive are with independent motors (drafting system is driven by three drafting motors, moulding is driven by moulding motor and spindles are driven by servo motor)
Mini-type design, easy to clean, set and maintain
Plc + touch screen, easy to learn and operate
Key Specifications
Fiber length: 60 to 110mm
Number of spindles: 24
Package dimensions: 263 x 90 x 250mm
Yarn count: adjustable
Operation mode: touch screen & plc control
Twist: adjustable
Spindle gauge: 75mm
Traverse range: 200mm
Maximum spindle speed: 12000rpm
Draft system: three rollers
Draft: adjust according to process requirement
Roving frame creel (fed by roving bobbins): four rows
Power supply: ac380v 50hz, 3 phase (with optional 220 volt transformer)
