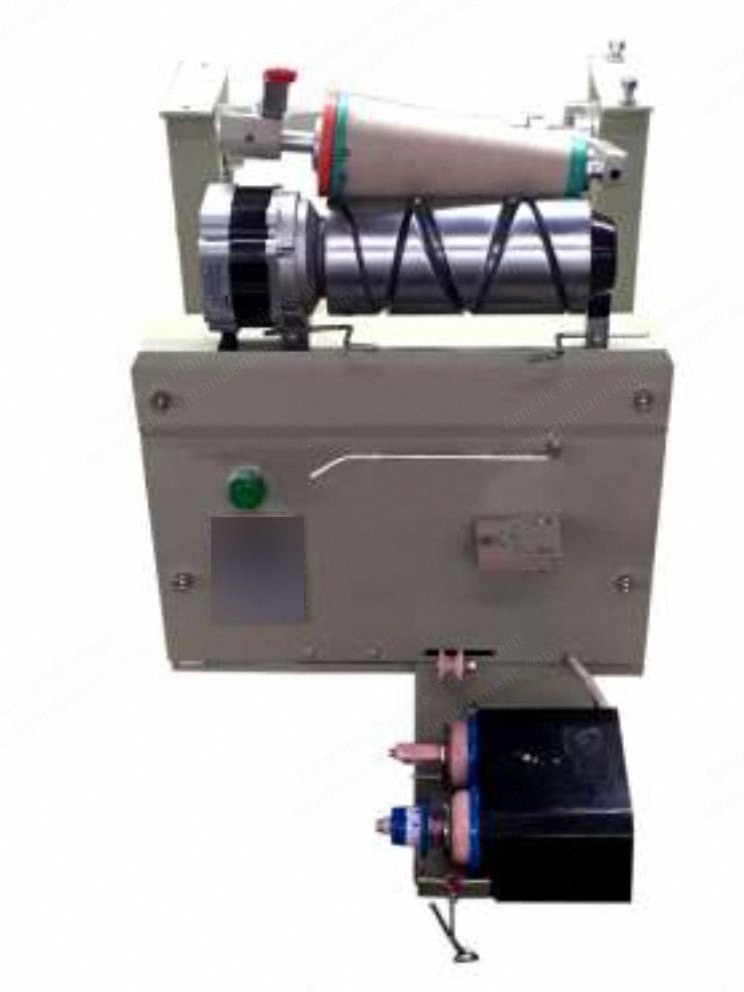

Description Overview Single-spindle winding machine with variable frequency length metering. Auto-stop when yarn breaks. Slow start and progressive speed increase. Widely used for winding yarn of cotton, synthetic, or fiber, hemp, blend yarns, wool and other yarns. Features Automatic stop at preset diameter or at yarn break. Special winder for the production of hard cones for dyeing and waxing, for any type of yarns and blends. Adjustable winding tension with frequency inverter. Mechanical clearers, yarn tensioners and anti-patterning device. Key Specifications Speed: 100 to 1000 meters per minute, typical use is 600 to 800 meters per minute. Grooved drum: tight type, traverse 152 mm, aperture 20 mm, o/d 82 mm, length 176 mm, conicity 3°30' to 5°57'. Different grooved drums can be supplied according to different yarns. Package bobbin: 0°, 3°30', 5°57' or 9°15'. Package diameter: up to 290 mm. Package density: 0.2 to 0.4 g/cm³. Yarns / count: cotton flax, wool, silk, chemical fiber / Ne 6-180. Groove drum: 82 x 175 mm. Drive: individual. Auto stop device: motor sensor, the spindle will stop at yarn breaks. Electronic anti-stack: internal control. Dimension: 400 x 400 x 500 mm. Power supply: AC 220 V, 50 Hz. Output Calculation If gram weight is 577 tex, speed is 400 meters per minute, output is 577/1000 x 400 x 60 = 13.848 kg per hour.
